Two types of thermostats, both analogue and digital,
can be used in an Uponor Smatrix Base/Base PRO
system.
The digital thermostats have a display relaying
information to the user and buttons for control.
Digital thermostats:
Uponor Smatrix Base Thermostat D+RH Style T-149
Uponor Smatrix Base Thermostat Prog.+RH T-148
Uponor Smatrix Base Thermostat Dig T-146

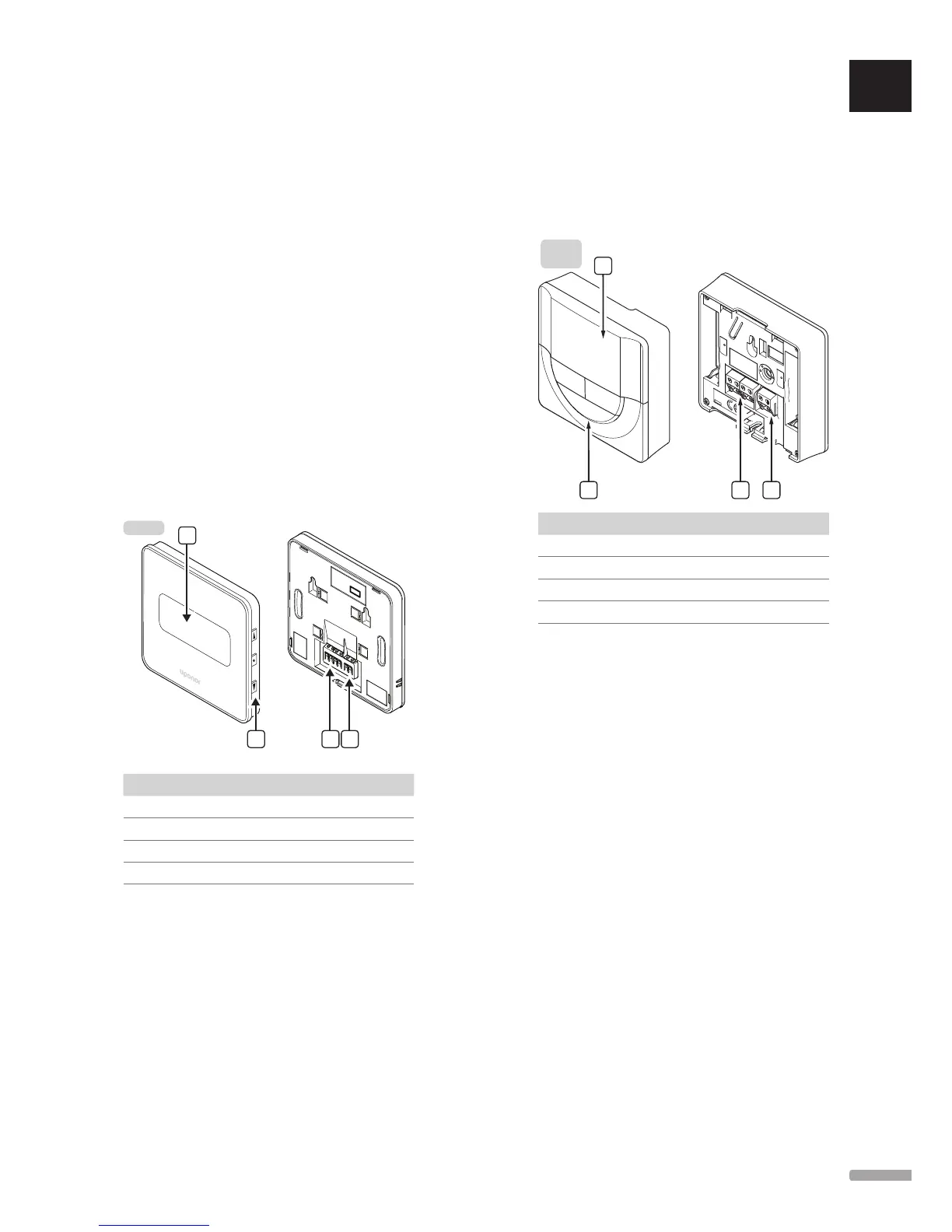

12.1 Thermostat layout
The illustration below shows the parts of the
thermostat.
therm ostat t-149
A
D CB
T-149
Item Description
A Display
B Buttons
C Terminal for external sensor (non-polarised)
D Terminal for communication cable
therm ostats t-146 and t-148
D CB
A
T-146
T-148
Item Description
A Display
B Buttons
C Terminal for external sensor (non-polarised)
D Terminal for communication cable
