DS1093-162A 10

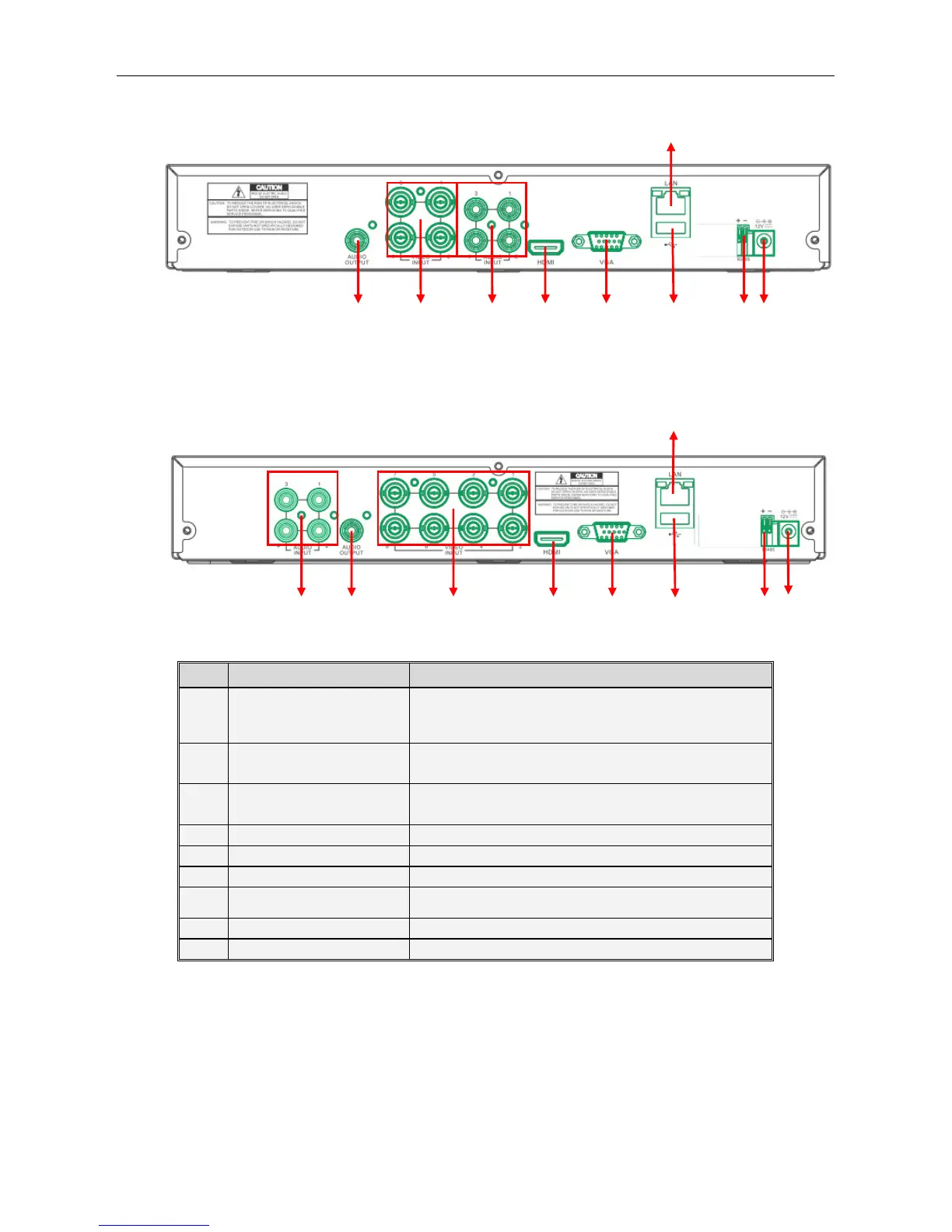

1.5 REAR PANEL
1.5.1 REF. 1093/004AHD DVR BACK PANEL
1.5.2 REF. 1093/008AHD DVR BACK PANEL
Item Physical port Connection method
1
Video inputs
Connect CH1-CH4 for DVR Ref. 1093/002AHD, CH1-CH8
for DVR Ref. 1093/003AHD (Virtual) video input device
(BNC interface)
2
Audio Inputs 4 CH audio input (RCA interface);
3
Audio Output Audio output (RCA interface);
4
USB Port
Connect USB mouse
5
HDMI Port
Connect to HDMI monitor
6
VGA Port
Connect to VGA monitor, such as PC monitor
7
PIN RS485 RS485 interface (see pin outs below)
8
Power Port
Connect power supply - DC12V 2A
9
Ethernet Port
Connect LAN, Ethernet (RJ45 interface)
11
9
7 8
6 4 5 2
1 3
9
7 8
6
4
5 2 1
3
