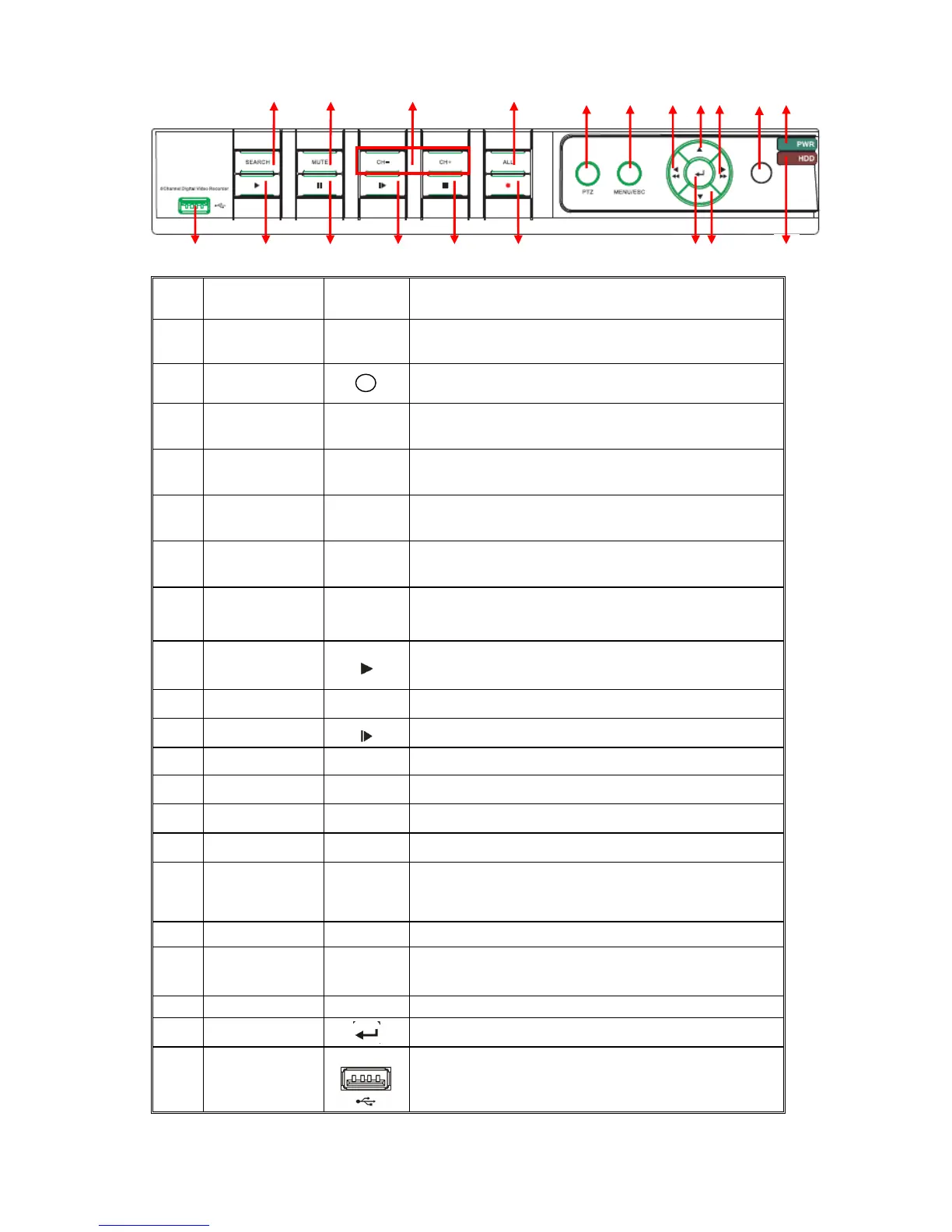

1.4.2 REF. 1093/008AHD DVR FRONT PANEL
Item
Key title or
Indicator
Remark Function & Description
1 Power Indicator PWR
If the “Green” indicator is on the system is getting power
normally.
2 IR Receiver
Receives IR signal from Remote Controller
3 HDD Indicator HDD
When the “Red” indicator flashes it means the hard drive is
being read or written to.
4 Search Video File
SEARCH
Search Video File
5 Disable Audio MUTE Disable Audio
6
Channel select:
CH- CH+
CH -
CH +
CH select key
7 ALL
ALL
Monitor in QUAD/nineth/ sixteenth Mode
8 PLAY
Enter into Pop-up Menu; Play record file.
9 PAUSE
Pause / play frame by frame manually
10 By frame
Play frame by frame
11 STOP
Stop playing or stop manual record
12 REC ● Press the button to start manual record.
13 PTZ PTZ Enter into PTZ Mode
14 MENU MENU/ESC Enter into Main menu, exit or stop playing
15 Left Key / Rew
Enter into Main menu, exit or stop playing / Move to left;
Rewind function; decrease PTZ rotation speed and
parameter value.
16 Up key
Move up
17
Right Key / Fast
Forward
select [Enter] / [Edit] operation / Right key, F. Forward key;
increase PTZ rotation speed and Parameter value.
18 Down key
Move down
19 ENTER
Select [Enter] / [Edit] operation
20 USB Port
Connect to USB2.0 port
