DS1093-162A 35
2.4.6.2 PTZ Set

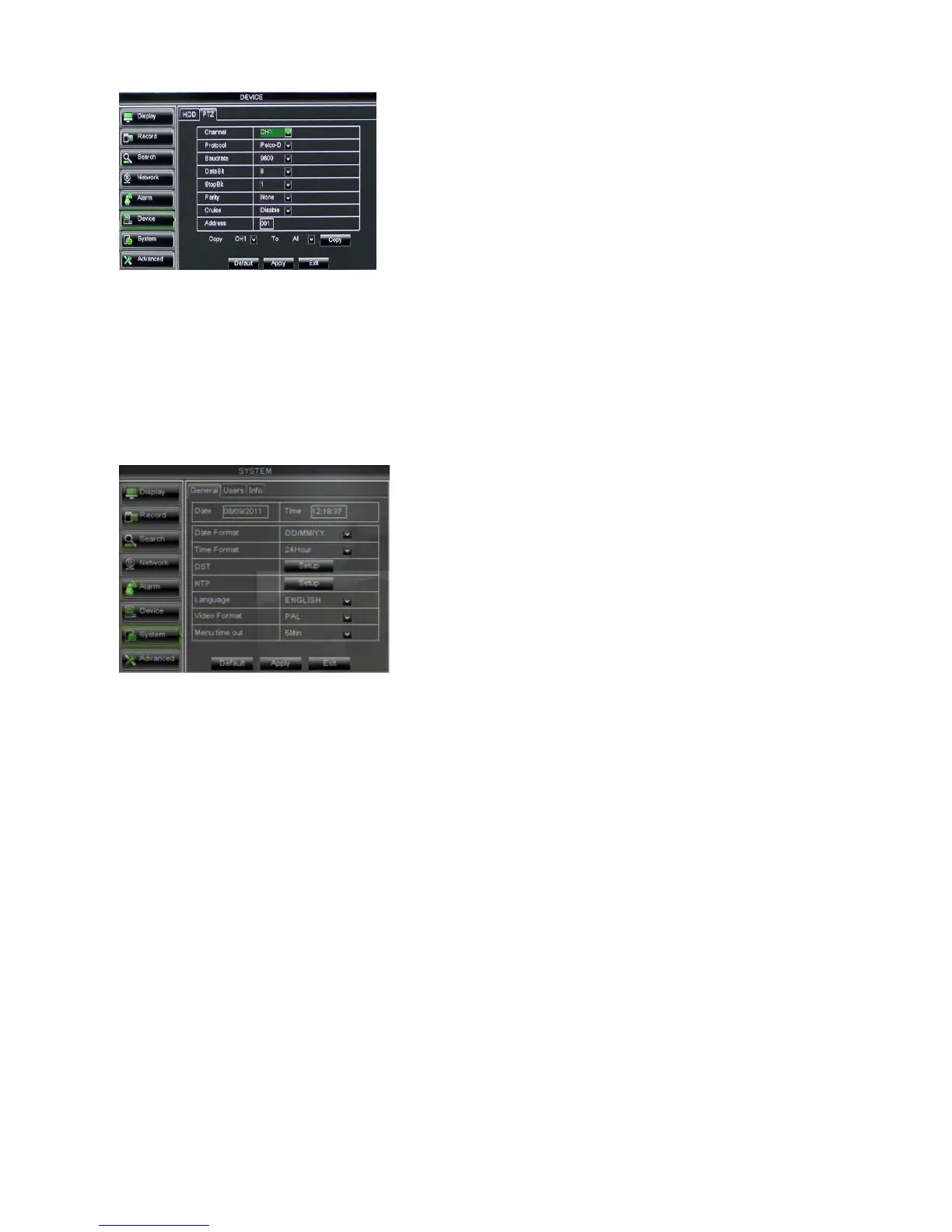

Click [Main MenuDevicePTZ] to enter into the below window shown as below.
You could select the channel you desire to control and set PTZ protocol (Pelco-D or Pelco-P), Baud Rate (1200, 2400,
4800, 9600), Data bit (8, 7, 6, 5), Stop bit (1, 2), Parity Check (None, Odd, Even, Mark, Space), Address Code and Cruise
status respectively. Please note the PTZ device can be activated only when a channel in connection with the PTZ camera
is selected.
2.4.7 SYSTEM
2.4.7.1 General
Click [Main MenuSystemGeneral] to enter into the interface shown as below.
You will be allowed to modify system date, time, date/time format, language, video format and auto logout.
And click [DST Setup] button to enter into the below interface shown as below.
