DS1093-162A 50

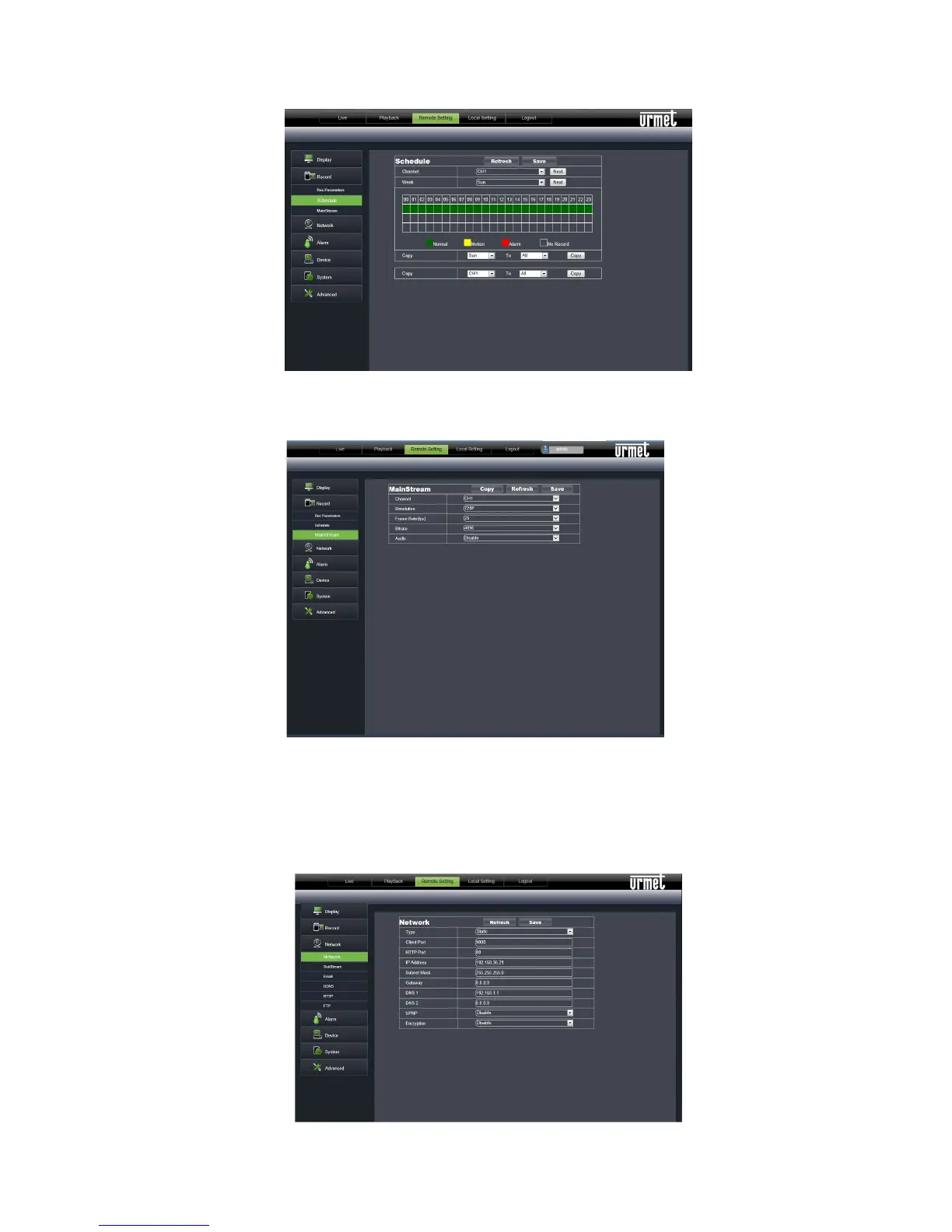

2. Schedule: Detailed parameters please refer to DVR local setting.
Green stand for Normal record; Yellow stands for Motion detection; Red stands for I/O triggered record.
3. Main Stream: detailed settings please refer to DVR local setting. Herein allow user modifies the resolution, frame
rate, Bit rate and audio of the record channel.
3.4.3 NETWORK PARAMETERS
Unfold <Network> option to enter into its sub-options: Network, sub stream, Email and DDNS configuration.
1、 The model support three network type, including Static, DHCP and PPPoE
Static: User could allocate IP and perform Port forwarding for DVR according to different router. When set
<UPNP> to “On”, user no needs to perform port forwarding. Once you modify its network parameters
successfully, DVR will automatically restart.
