DS1093-162A 49

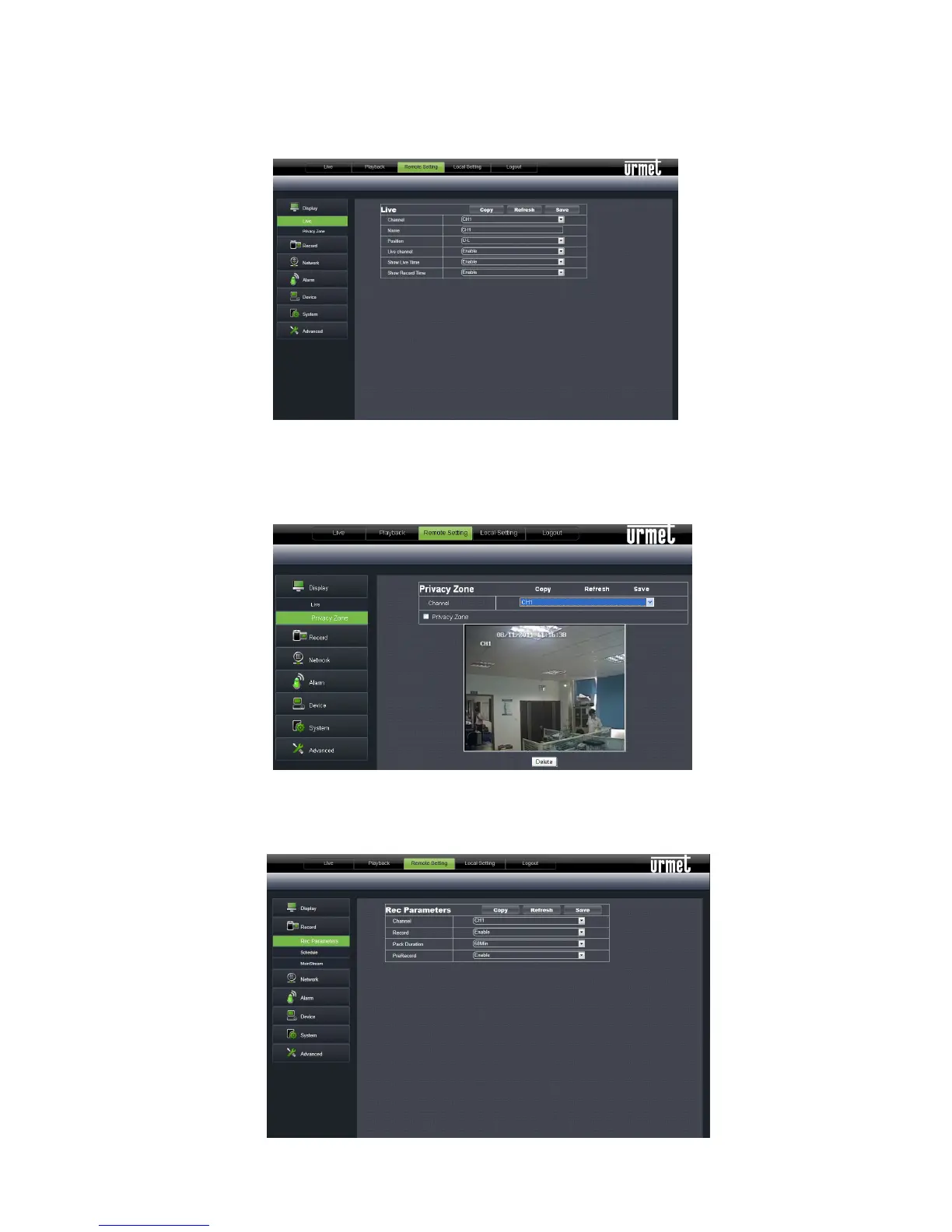

3.4.1 DISPLAY CONFIGURATION
Unfold [Display] option to find its sub-options: Live and Privacy zone
1、Live: Allow you modify channel name, Position, Live channel, Show time and Record time. If show time is set to
<disable>, current system time will not appear on the screen on Live mode; and if record time is set to <off>, system time
can’t be found in the record file.
2、Privacy zone: Each channel could set up to four privacy zones shown as below. Details parameters please refer to
section
2.4.1.3. If you want to delete one privacy zone, please firstly select one zone, and then click <Clear> button and click
<Save> on the right corner
3.4.2 RECORD
Click <Record> option to unfold its sub-options: Record parameter, Schedule and Main stream.
1、 Record Parameters: Under [Record parameters] option, allow you set channel, record enable, pack time and Pre-
record status shown as below.
To Next Page
