DS1093-162A 16
2.2 LIVE INTERFACE AND POP-UP MENU

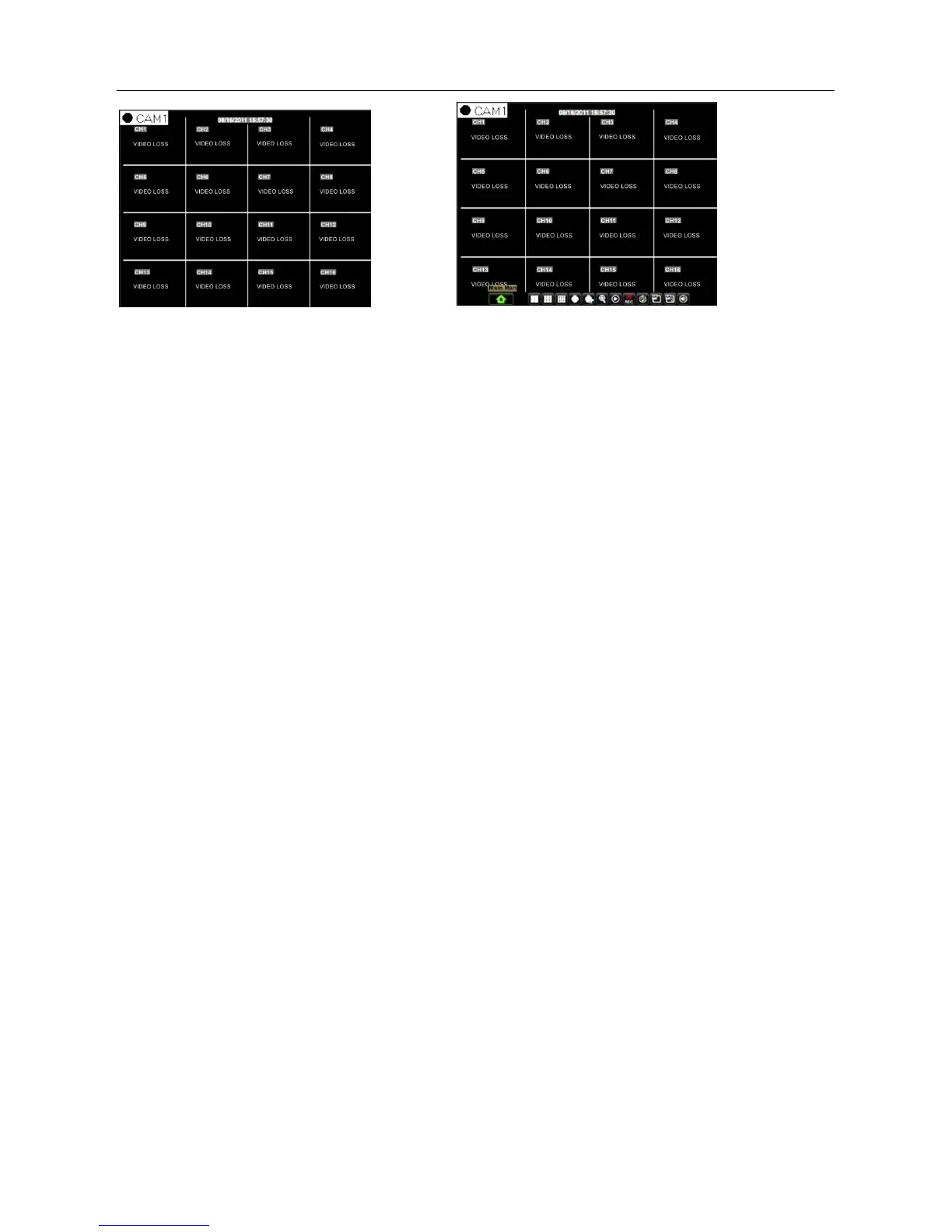

After finishing initialization the system will enter into <Live> screen. The Picture above is the Multi-split display defaulted
by system, which is showing no video input status. Once there are video inputs, the screen will display live images from
the cameras. In Live mode, if you use the mouse to double-click the live image of any channel, the image will be
maximized to full screen, by double-clicking again, image will be come back to Multi-split display mode; After finishing
system initialization, click right key of mouse on main interface mode to enter into Pop-up Menu. Now you could proceed
parameter setting and operate for Main Menu, Menu Lock (if password is enabled),Multi-Screen Display Mode, Video
Search, PTZ Control, Start record, Stop Record, Start Cruise after successful PTZ parameter setting, Start Sequence, PIP
Mode, Volume, Reboot, Shut Down, Vout Switch. Clicking the left button of the mouse allows you select menu items; and
clicking any area outside the menu allows you exit the Pop-up menu.
Note: When internal HDD is not connected or an error occurs, the character “H” will appear on the first channel of the live
screen and it could sound the buzzer alarm. If you want to close the buzzer alarm, please enter into [Main menuAlarm]
to set HDD loss, HDD space not enough and alarm output to “off”
