2.4.1.2 Output mode
Click [Live] to pop up the interface shown as below. Now you could perform channel sequence setting.
Go to [Main menuDisplayOutput] to enter into the output set interface shown as below.

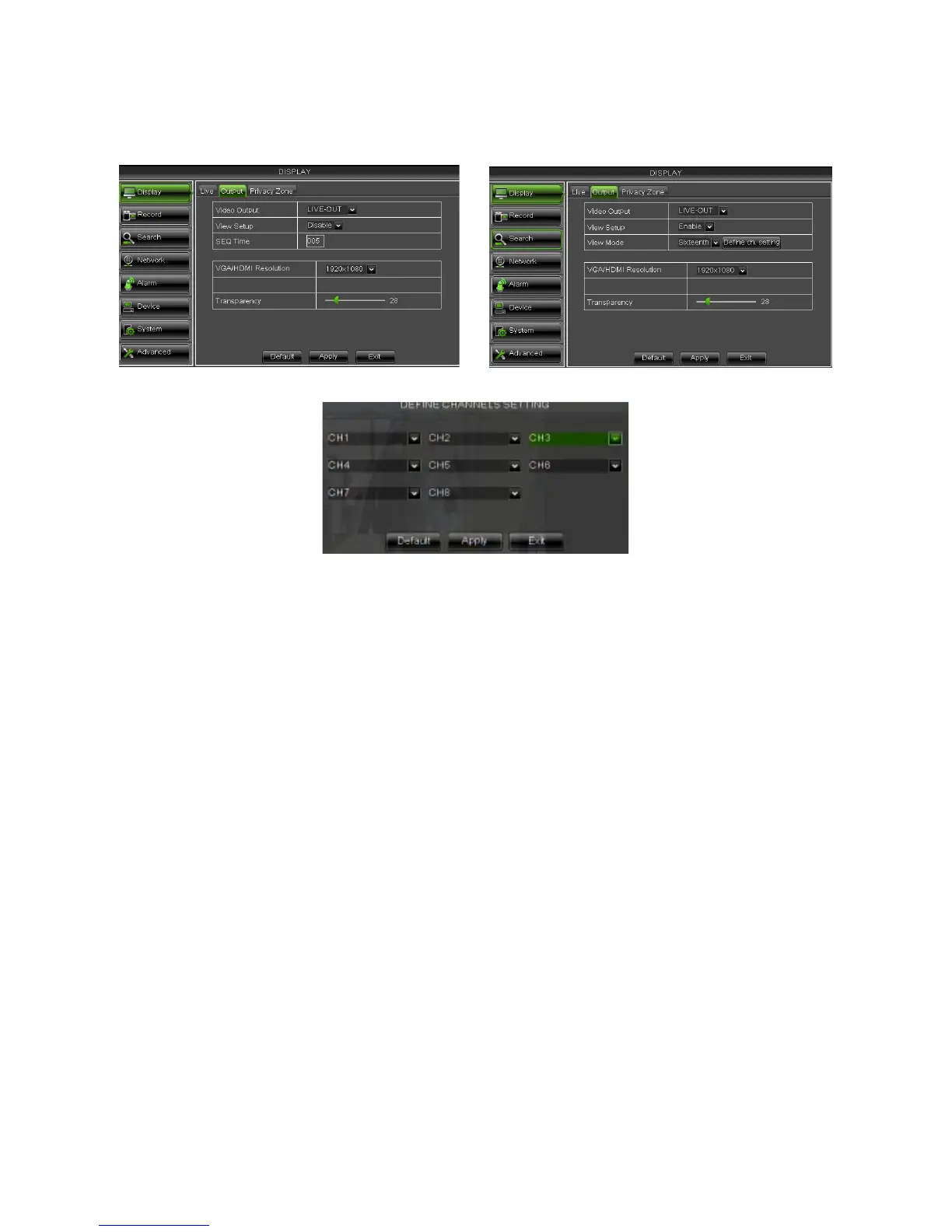

Click [LIVE-OUT] in the Video Output option and set relative parameters shown as below for Video Output.
Video output: Support only Main Video Output
View Setup: if this option is enabled, the user can set the channels sequence for View Mode Option.
SEQ Time (this option is available if View Setup option is disabled): Seq Time option is set as 5 seconds
default. User can change the option as per request. The minimum time that can be set is 3 seconds.
View Mode (this option is available if View Setup option is enabled): It is possible to set the Display Live
Mode for Main Video Output:
• Live output: display window will include Single, Quad, 9-split and 16-split mode;
Clicking on “Define SEQ Setting” is possible to set the sort about channels grid.
VGA/HDMI Resolution: allow you select VGA or HDMI output, including 800x600, 1024x768, 1280x1024,
1440x900 and 1920x1080.
NOTE:
• Using HDMI video Output on DVR, in order to correct display about LIVE Preview, it is needed to
set to DVR the supported resolution from HDMI Monitor (Example: If you're using a HDMI Monitor
and it supports only 1280x1024 and 1920x1080 Resolutions, on DVR the resolution value in order
to set is 1920x1080 in the "VGA/HDMI Resolution" option for DVR Menu.
Transparency: allow you adjust menu’s transparency, and its range is 1~128.
2.4.1.3 Privacy Zone
The function Allow you setup privacy zone parameters according to Picture below. Each channel could set up to four
privacy zones, and please follow below steps to set:
1. Select the area no (Area 1 ~ Area 4);
2. Click [Setup] to adjust position of mask area;
3. After finishing position adjust, click right key of mouse to return back [Privacy zone] interface;
4. Click [Apply] to save the above setting.
