DS1093-162A 53
Launch VLC Player from Media -> Open Network Stream and digit the following String: rtsp://Indirizzo IP:RTSP
Port/live/chA_B_C where:
• RTSP Port is 554 (default value)
• A means ch1(00), ch2(01) and so on
• B means the Stream Type. Main stream (00), Sub stream (01)
• C means audio + video stream (00), only video stream (01) or only audio stream (02)
Example: rtsp://192.168.1.173:554/live/ch00_00_01
After that open VLC and insert Username and Password about DVR.

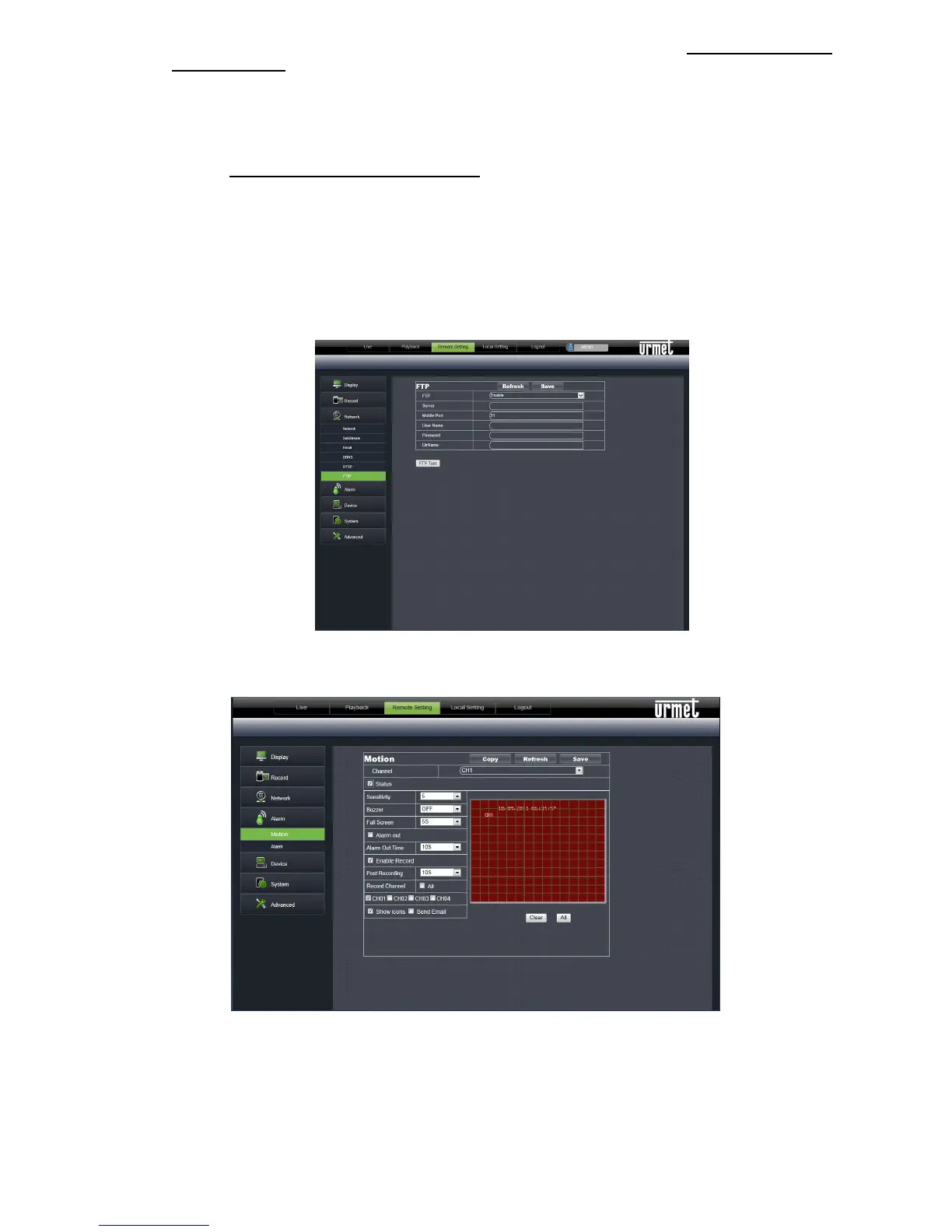

6、 FTP Function: This function is applied together with alarming function. The captured images or alarming recording
can be uploaded to FTP server through network.
FTP: Enable or disable the function.
Server IP: Put the FTP Server Address.
Port: FTP service port，default value is 21.
Nome Utente: User name for visiting FTP
Password: Password for visiting FTP
Nome Dir: Directory Name in order to transfer the pictures or record alarms.
3.4.4 ALARM SET
Click <Alarm> option to unfold its sub-options: Motion, I/O Alarm shown as below.
1
、 Motion Detection: allow
you
configure
it
s
<Sensitivity>,
<Alarm
out>,
<Alarm
record>
and
<Al
arm
Capture>
etc.
Details setting should be consistent with DVR local setting.
