DS1093-162A 32
2.4.5 ALARM
2.4.5.1 Motion

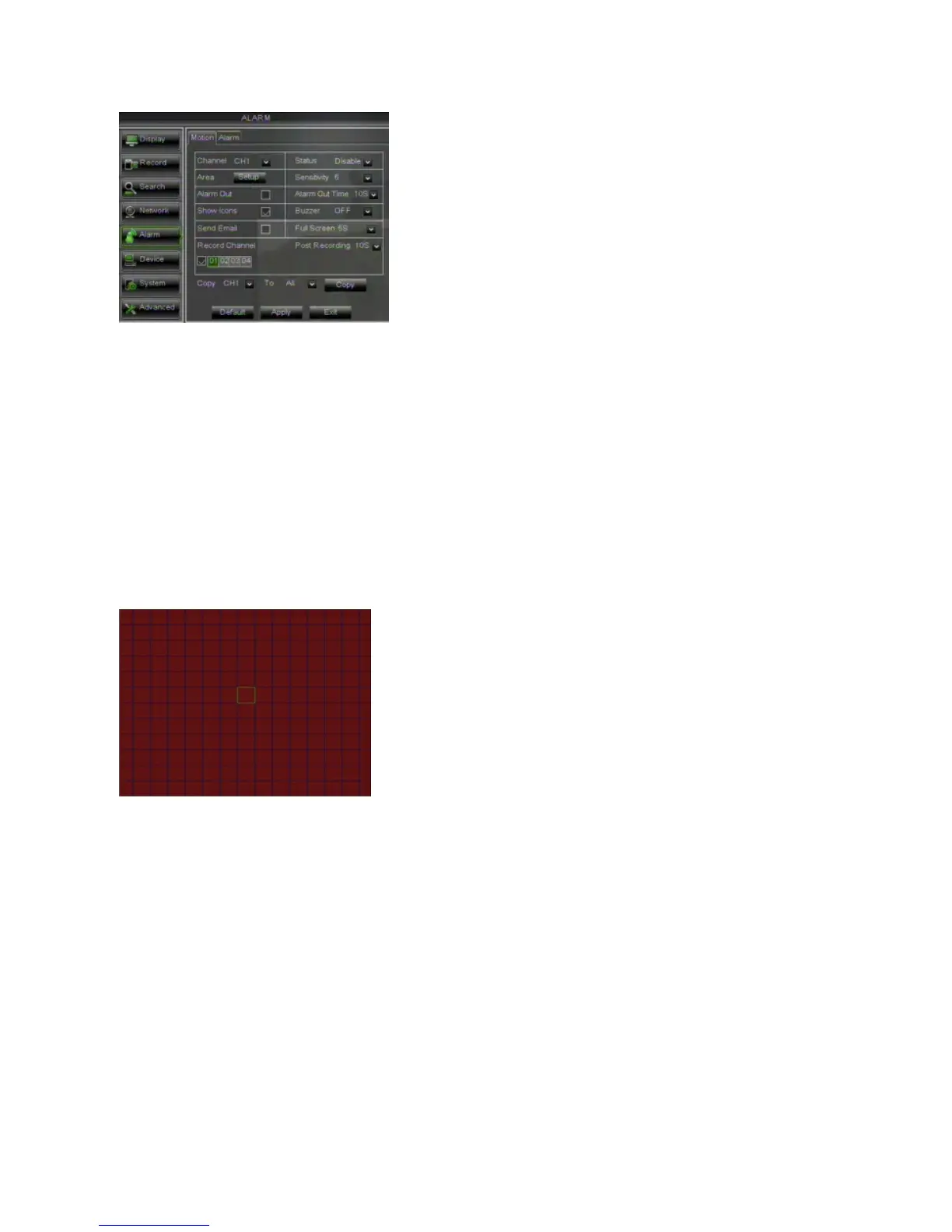

Click [Main menuAlarmMotion] to enter into the interface shown as below
Channel: allow you enable/disable the motion function for any channel.
• Area: Click the [Setup] button to enter into area setup interface shown as below.
• Sensitivity: allow you to set sensitivity level of motion detection from higher to low with 8 being the most sensitive.
• Alarm Out: allow you connect external alarm sensor.
• Alarm Out Time: you can set how long the external sensor alarm will last when motion is detected (10sec, 20sec,
40sec, and 60sec);
• Show icons: You can set show the icon on the screen when motion alarm is detected. About icons type please refer
to Section 4.
• Buzzer time: you can set how long the buzzer will sound when motion is detected (OFF, 10sec, 20sec, 40sec,
60sec);
• Send Email: Allows you set the alarm images is issued to a specified email.
• Full screen Alarm: you can set how long the video is displayed in full screen mode when Motion is detected
(OFF,1sec, 2sec, 3sec, 5sec, 7sec, 10sec, 20sec, 30sec);
• Record Channel: the record channel will be activated when the object move is detected.
• Post Recording: you can set how long alarm record will last when alarm ends (10sec, 30sec, 1min, 2min, 5min).
• Copy: allow you copy current channel parameters to any other channel or all channels.
The channel will be separated into a 15X12grids (PAL mode) or 15X10grids (NTSC mode). When any object moves into
the motion detection area, and the area where the object is located is displayed in red and motion detection will be
triggered. In the semi-transparent area the motion detection is not activated.
2.4.5.2 Alarm Set (available only for Ref. 1093/016AHD)
Click [Main MenuAlarmAlarm] to enter into the below window shown as below. Now you can perform alarm set based
on different status.
