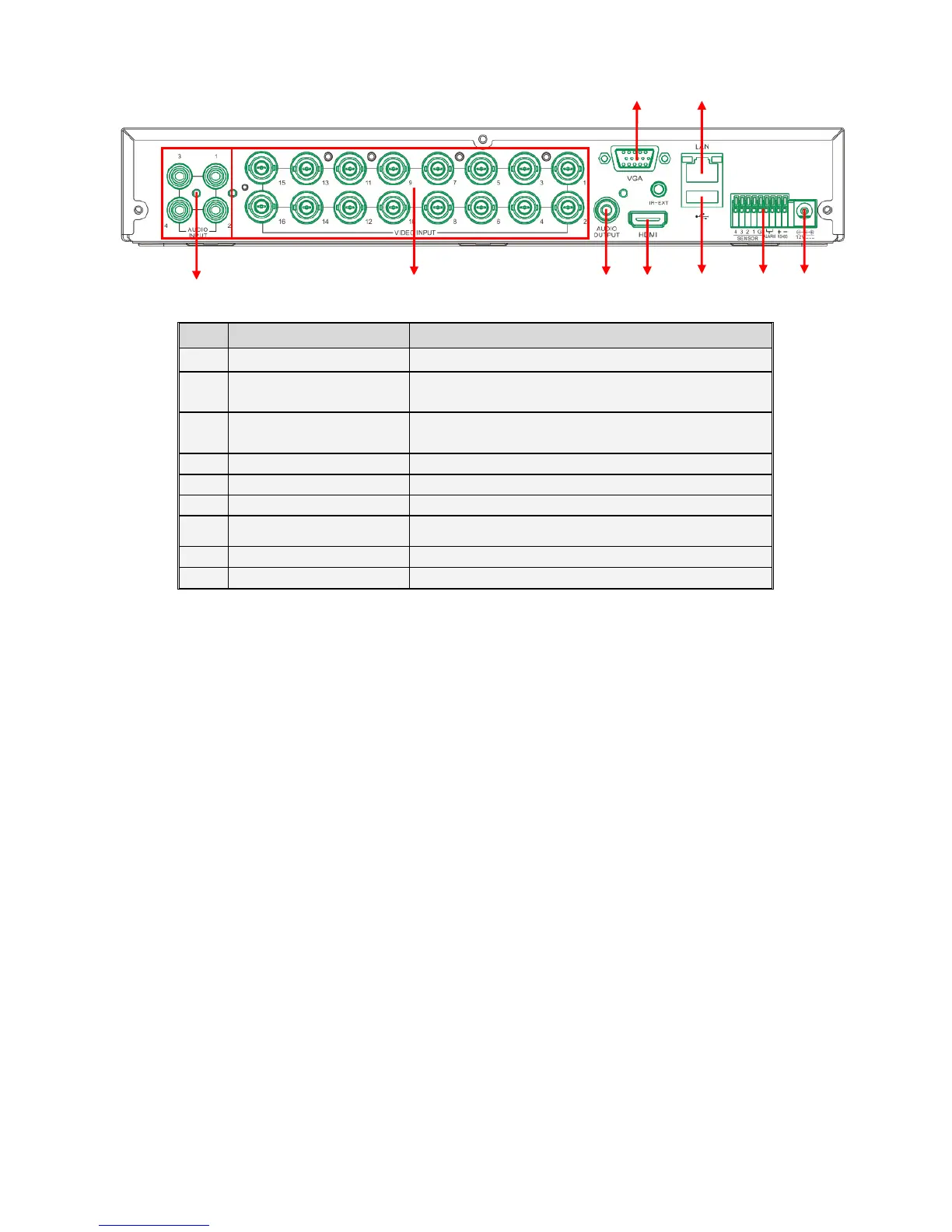

1.5.3 REF. 1093/016AHD DVR BACK PANEL
Item Physical port Connection method
1
Video inputs Connect (Virtual) video input device (BNC interface)
2
Audio Inputs 4CH audio input (RCA interface)
3
Audio Output Audio output (RCA interface);
4
USB Port
Connect USB mouse
5
HDMI Port
Connect to HDMI monitor
6
VGA Port
Connect to VGA monitor, such as PC monitor
7
PIN RS485/ Sensor Alarms RS485/Sensor/Alarm interface (see pin outs below)
8
Power Port
Connect power supply - DC12V 2A
9
Ethernet Port
Connect LAN, Ethernet (RJ45 interface)
1
2
3 4 5
6
7
8
9
