DS1093-162A 25
2.4.3.8 Log Search

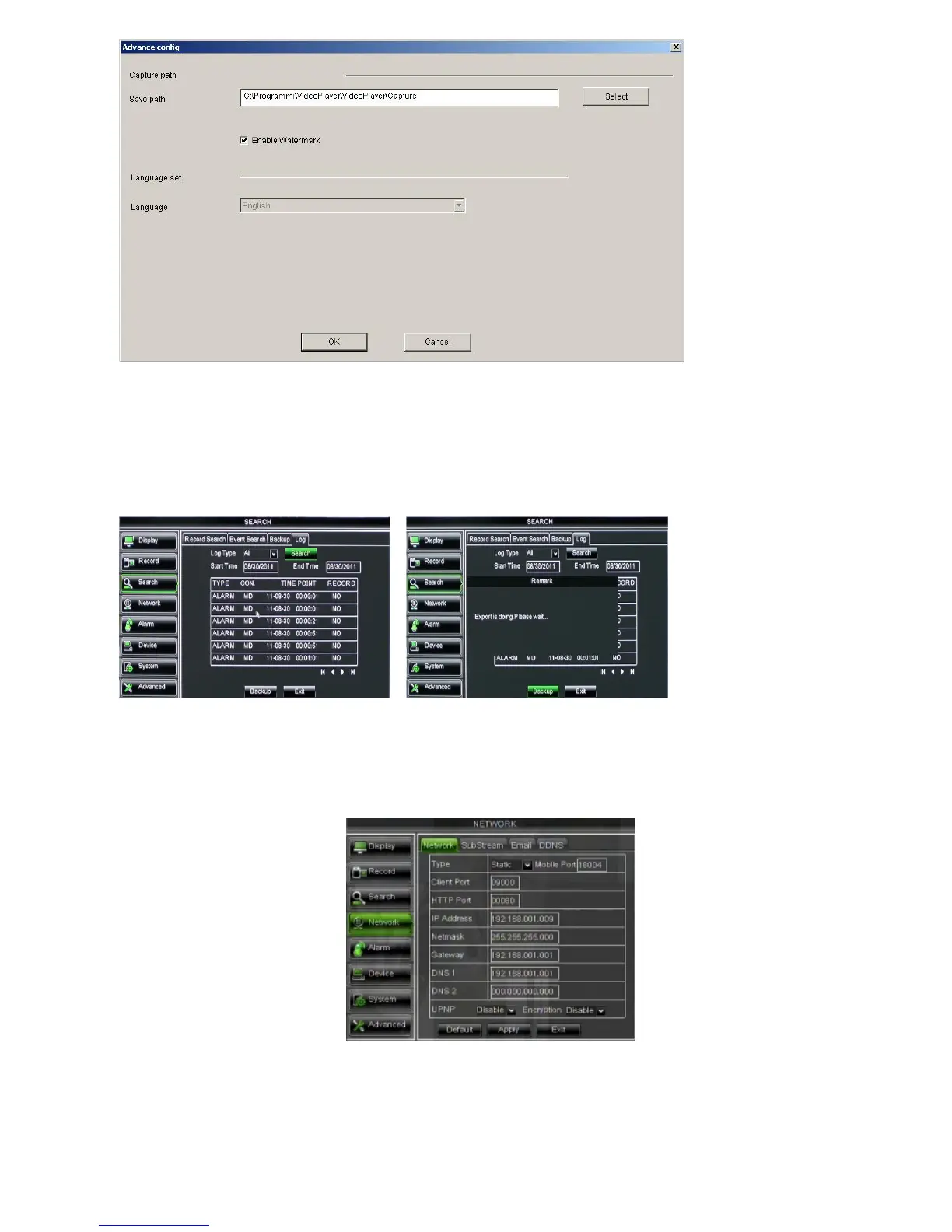

Go to [Main menuSearchLog] option to enter into the Log search interface shown as below.
Herein allow you preview the log information you have searched. And click [Backup] to export all the log information which
is listed. For other button functions please refer to previous section 2.4.3.3 - Event Search.
2.4.4 NETWORK
2.4.4.1 Network set
Click [Main menu NetworkNetwork] to enter into the below interface shown as below.
After selecting network mode - such as DHCP, PPPOE or static allocation- and setting up ports, you can visit DVR
remotely through a network or internet.
Here follow the most Features enclosed in Network OSD Menu:
• Encryption: Users can enable or disable the encryption function. When the option is enabled, the DVR encrypts
data for transmission through the Network. The DVR uses a proprietary encryption algorithm, so data can be
decrypted by the DVR IE ActiveX and by the DVR URMET UVS only.
To Next Page
