DS1093-162A 40

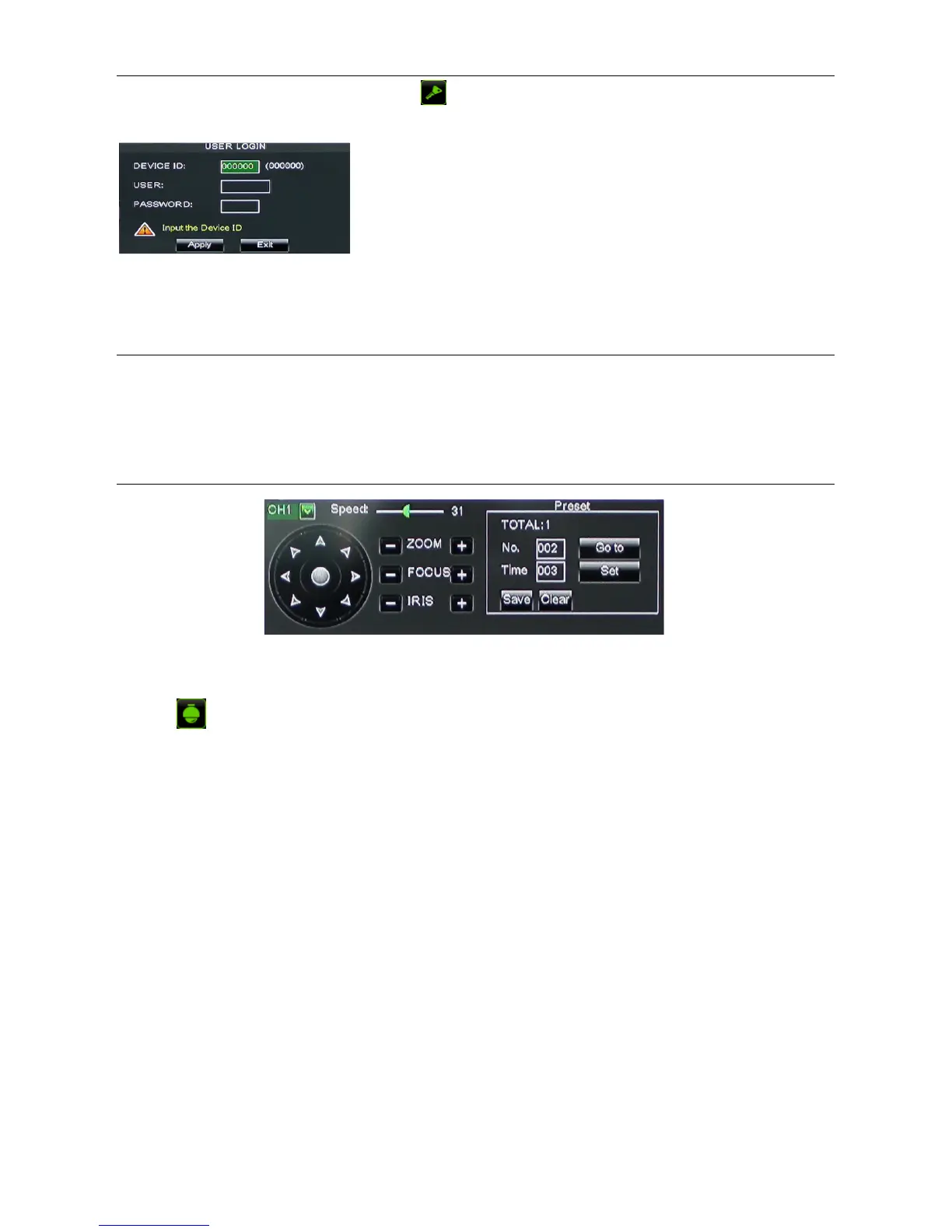

2.5 MENU LOCK
Considering a system safety feature you can click [ ] icon to lock system interface when leaving the DVR. If you want
to login to the DVR again, you would input device code and password to unlock the interface shown as below.
Friendly Reminder: Administrator has full authority over Main Menu operations and has an authority to limit common
user’s operation.
2.6 SPLIT MODE
The model displays 4/8 live images in the sequence of single, 4-split and 9-split modes.
If you enter into 4-split mode, the live images will be displayed in turn CH1~4, CH5~8…and CH13~16.
If you enter into 9-split mode, the live images will be displayed in turn CH1~9CH10~16.
2.7 PTZ CONTROL
We introduced setting PTZ parameters previously in section 2.4.6.2 – PTZ Set. Here we will discuss how to operate PTZ
controls.
Click the [ ] icon to enter into [PTZ control] menu shown as above. Now user can control the camera with Pan, Tilt and
Zoom capabilities.
Click [Zoom-/+] button to zoom in / out the image; Click [Focus -/+] button to focus the image; Click [Iris -/+] button adjust
iris to open or close.
2.7.1 CRUISE SET
Open auto cruise function on PTZ setting menu if you want to setup cruise function (system default: off), and set up cruise
channel, cur point and total quantity and stop time etc
How to set pre-set point
• Total: set up pre-set point quantity
• Cur Point: indicates starting point cruised. System default point is 01. The model support up to 255 pre-set points.
• Stop time: sets the stop time at each point
• GOTO: allow you go to a specific preset point.
• Set: allow you set a set of specific preset points of a PTZ camera.
1. Select a camera you desire to set a preset point;
2. Adjust the camera in a desired direction;
3. Click [Set] to set the point as preset point;
4. Click [Save] to save the preset point;
5. Follow the above step to add one more preset point.
• Save: save all the preset points
• Clean: allow you delete one selected preset point.
Note: Up to 254 pre-sets per one camera can be stored. However, actual preset quantity differs depending on PTZ
performance.
