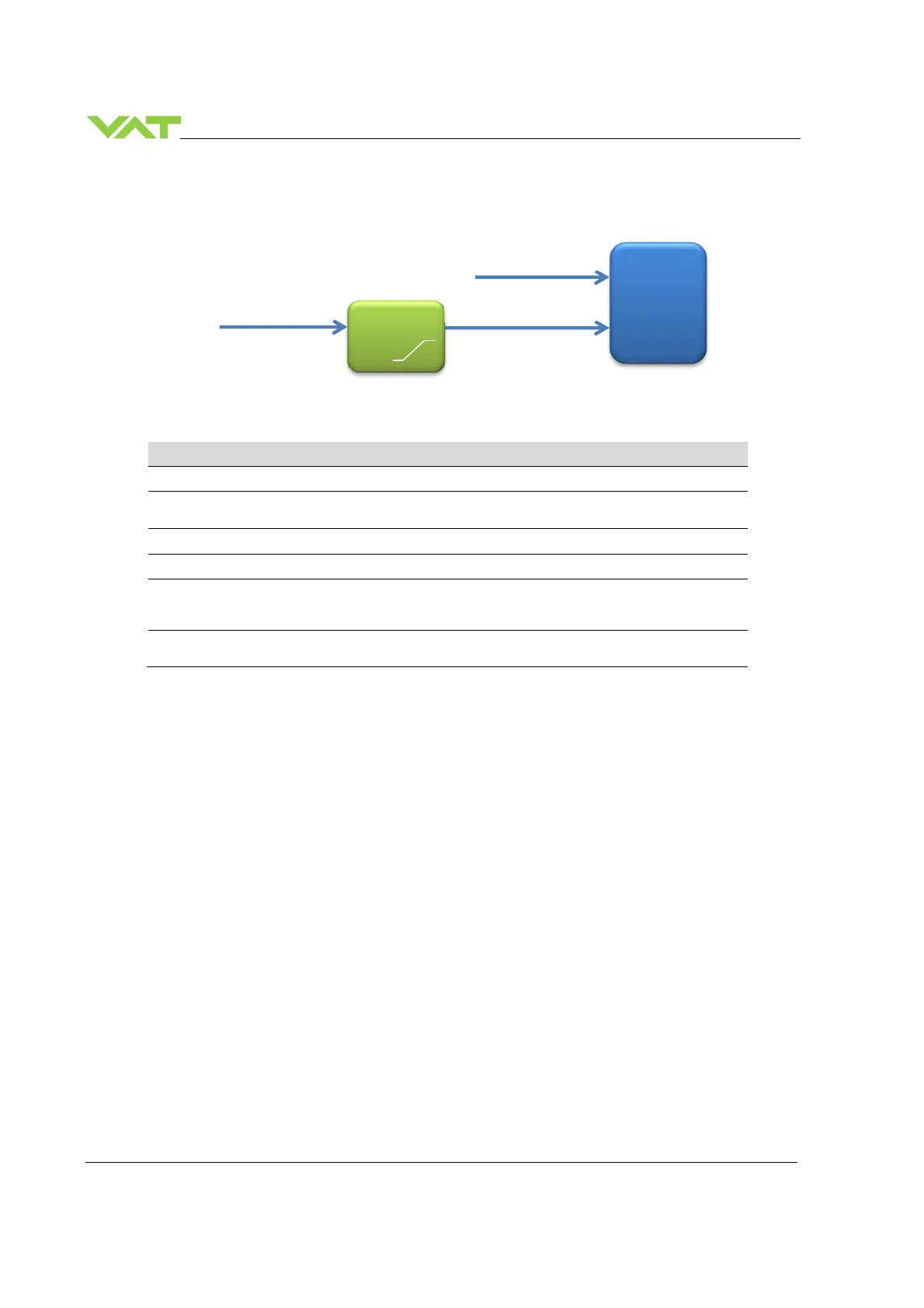

6.3.5 Pressure Ramp
Basically, the pressure ramp is used to limit the rate of pressure change.
6.3.5.1 Configuration
Location: CPA/Navigation/Parameters: Pressure Control.Controller x.Ramp
Parameter Description
Enable
Activate / Deactivate pressure target ramp
Mode
0
:Use Ramp Time
1:Use Ramp Slope
See description below
Time
Target reach time in seconds (Used if
Mode
= 0)
Slope
Limit the rate of pressure change in pressure per seconds (Used if
Mode
= 1)
Type
0
:Linear
1:Logarithmic
2
:Exponential
Start Value
0
:Previous Ramp Value
1:Actual Pressure Value
Ramp
Pressure
Controller
Target Pressure Used
Used
Target Pressure
Pressure
Actual Pressure
