VAT 613 Series User Manual

INSTALLATION
Series 613
18/149 Edition 12.08.2022 984360EC
5.3.4 Admissible forces at controller
NOTICE
Force at pedestal
In case higher force is applied, the pedestal could be permanently damaged.
– Do not pushing, shocking load, or stressing the valve controller
– Do not deposit anything at valve controller

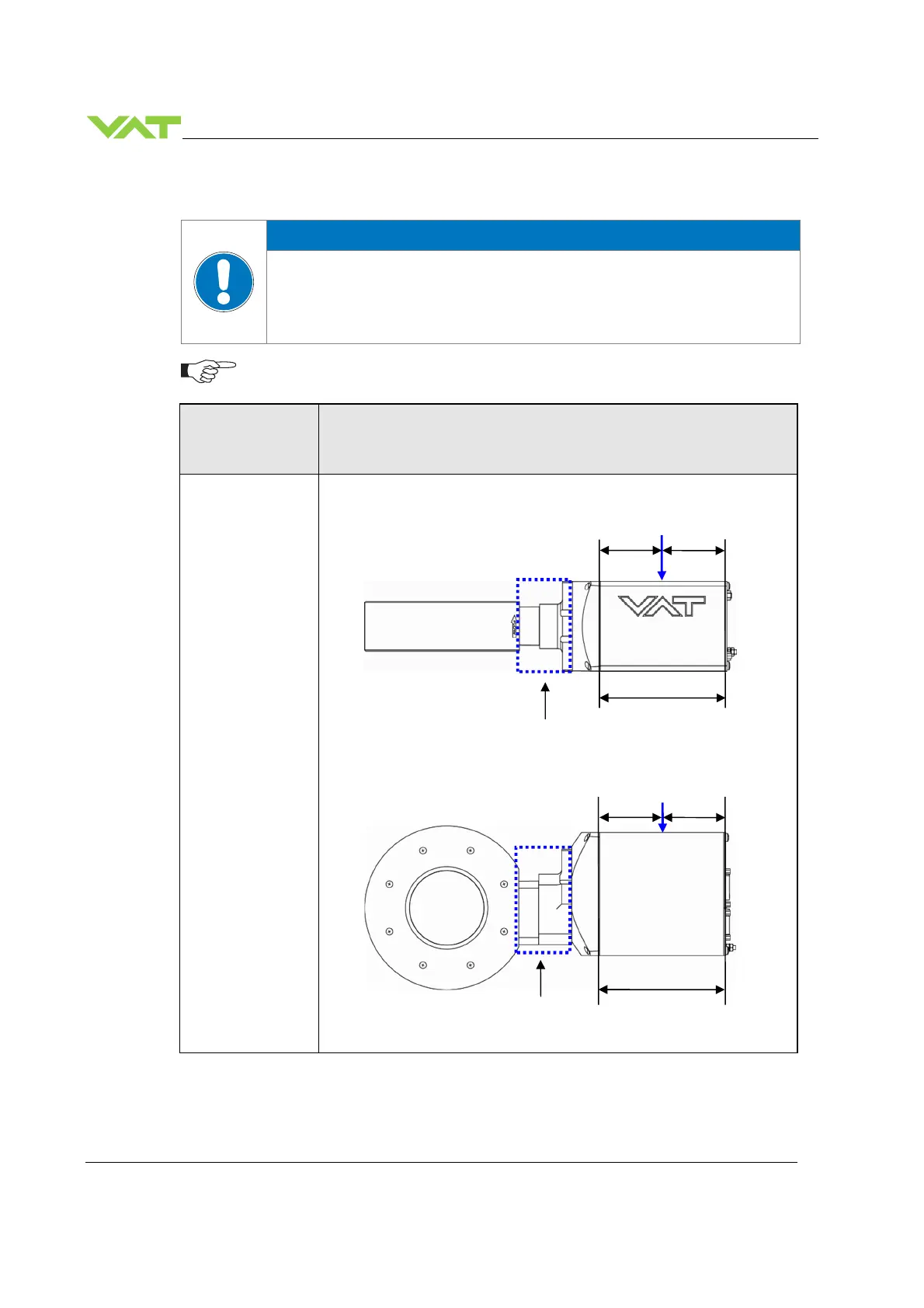

The admissible force at valve controller in regards to the pedestal is shown in table
below
Admissible force
«F»
Overview
F = Force
a = middle of aluminum part of controller (b / 2)
400 N
sample pictures
pedestal
b
a
a
F
F
b
pedestal
a
a
