5.12.9 Digital IO on the RS interface connector
There are 2 digital inputs, 2 digital outputs and 2 analog outputs. Digital inputs may be operated either
by switches or by voltage sources.
Digital inputs on the POWER and INTERFACE connector have the same priority.
Active digital inputs have higher priority than RS232/RS485 commands.
Do not connect other pins than indicated in the schematics above!
Use only screws with 4-40UNC thread for fastening the DA-15 / DB-25 connector!

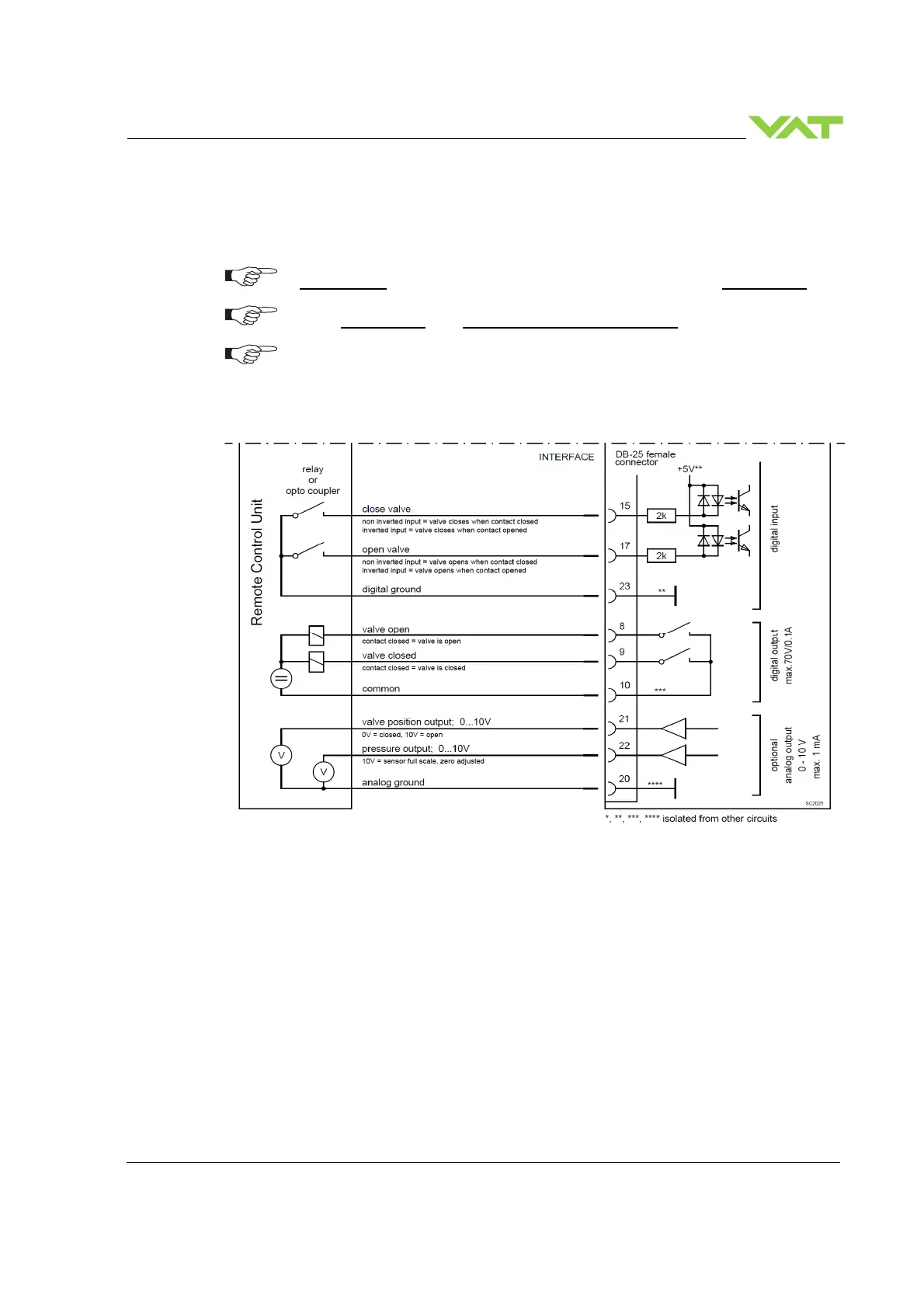

5.12.9.1 Schematic, Switches for digital inputs
