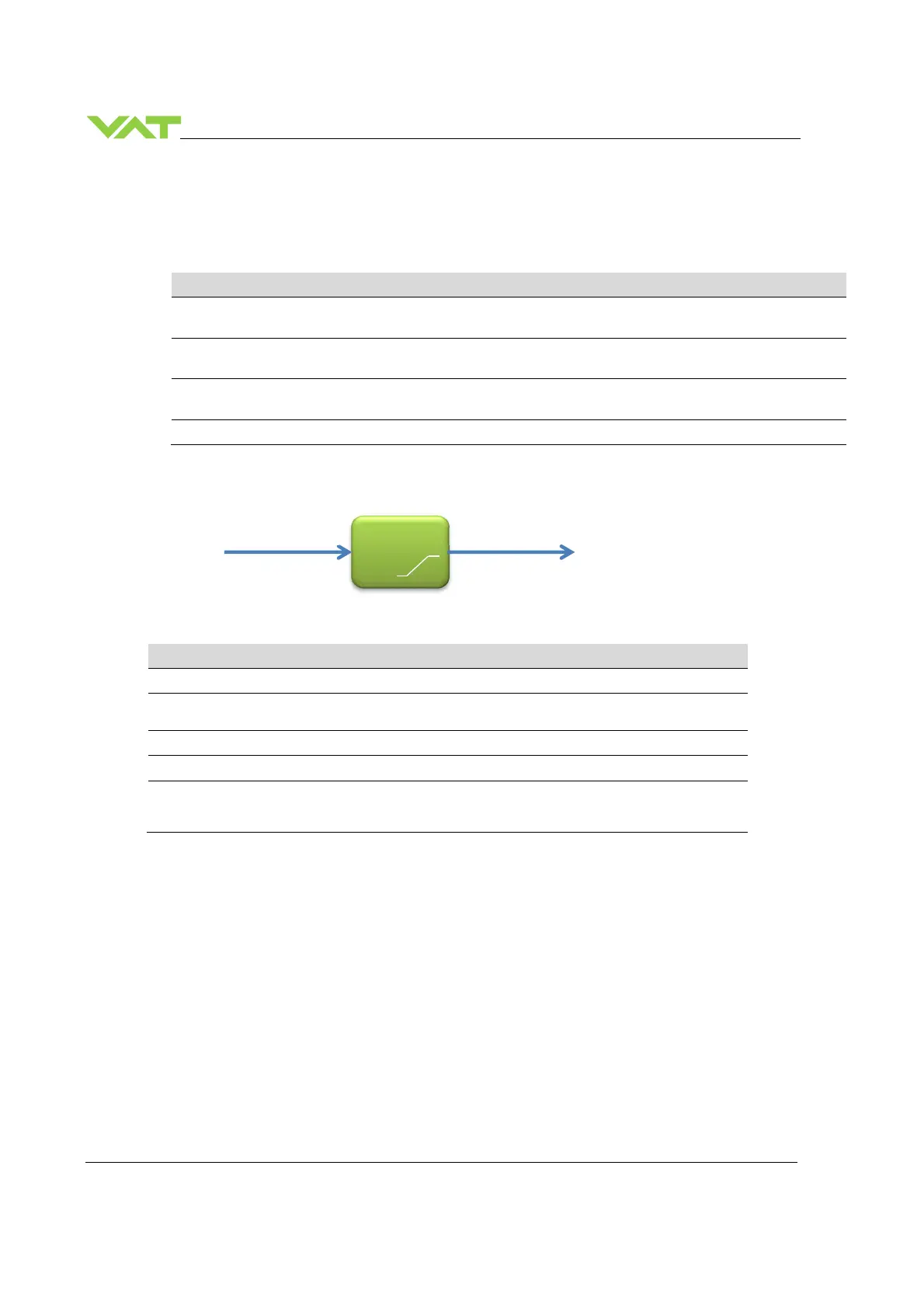

6.4 Position Control
6.4.1 Parameter
Location: CPA/Navigation/Parameters: Position Control
Parameter Description
Actual Position
Position of the valve plate
Range depends on Position Scaling setting (on Interface and CPA)
Target Position
Desired position of the valve plate
Range depends on Position Scaling setting (on Interface and CPA)
Position Control Speed
Speed of the valve in Control Mode Position
0.001 .. 1.0 (Full speed)
Ramp
See below
6.4.2 Position Ramp
.
6.4.2.1 Configuration
Location: CPA/Navigation/Parameters: Position Control.Ramp
Parameter Description
Enable
Activate / Deactivate position ramp
Mode
0
:Use
Ramp Time
1
:Use Ramp Slope
See description below
Time
Target reach time in seconds (Used if
Mode
= 0)
Slope
Limit the rate of position change per second (Used if
Mode
= 1)
Type
0
:Linear
1:Logarithmic
2:Exponential
Ramp
Target Position Valve Position
