VAT 613 Series User Manual

Series 613 INSTALLATION
984360EC Edition 12.08.2022 17/
149

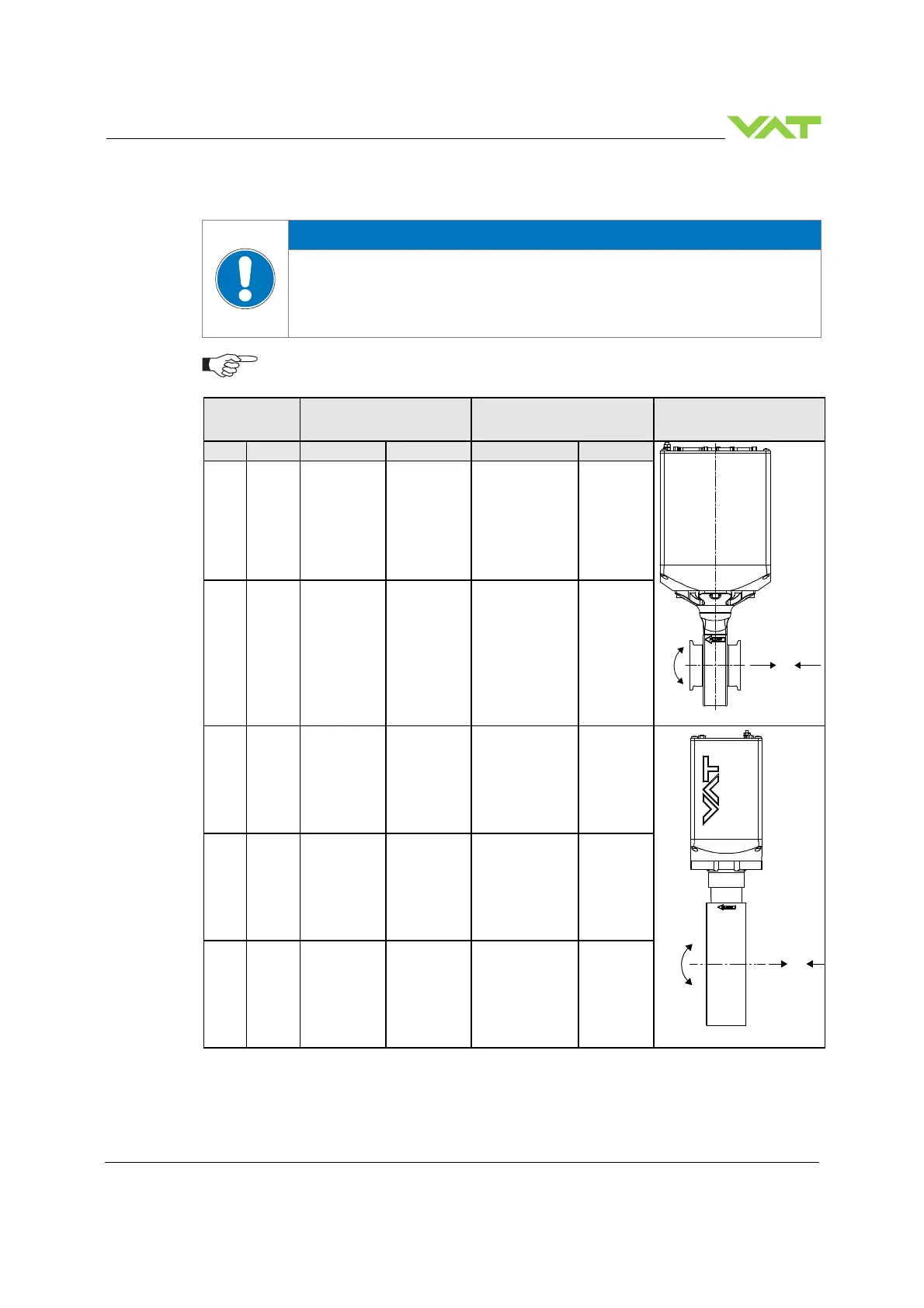

5.3.3 Admissible forces
NOTICE
Force at valve body
Forces from the weight of other components can lead to deformation of the valve body
and to malfunction of the valve.
Do not higher force the valve body as specified.
The following forces are admissible.
Valve size Axial tensile or
compressive force «F
A
»
Bending moment «M»
mm inch N lb. Nm lbf.
Sample picture
40 1½ 100 22 6 4.5
50 2 150 34 11 8
63 2½ 800 176 32 24
sample picture
80 3 850 187 35 26.5
100 4 1000 220 40 30
M F A
M F A
