VAT 613 Series User Manual

INSTALLATION
Series 613
42/149 Edition 12.08.2022 984360EC
5.12.4 Command Set
5.12.4.1 General
Commands and values are case sensitive.
Acknowledgement within 10ms after reception of command.
Wait for acknowledgement before sending a new command.
Default command termination is CR and LF. This is adjustable.
CR = Carriage Return (0D hexadecimal), LF = Linefeed (0A hexadecimal)
Same Syntax for Commands over Service (CPA) as over RS232 interface.
5.12.4.2 Syntax
Service Command Response
GET p:[service][parameter][index] p:[error][service][parameter][index][value]
SET p:[service][parameter][index][value] p:[error][service][parameter][index][value]
Part Description Format Digits
service
Service code Hex 2
parameter ID
Each parameter is identified by an uint32 value
Hex
8
error
Error code (see detail below) Hex 2
index
Array index. If parameter is not an array use 00 Hex 2
value
Set or response value
Dec
variable

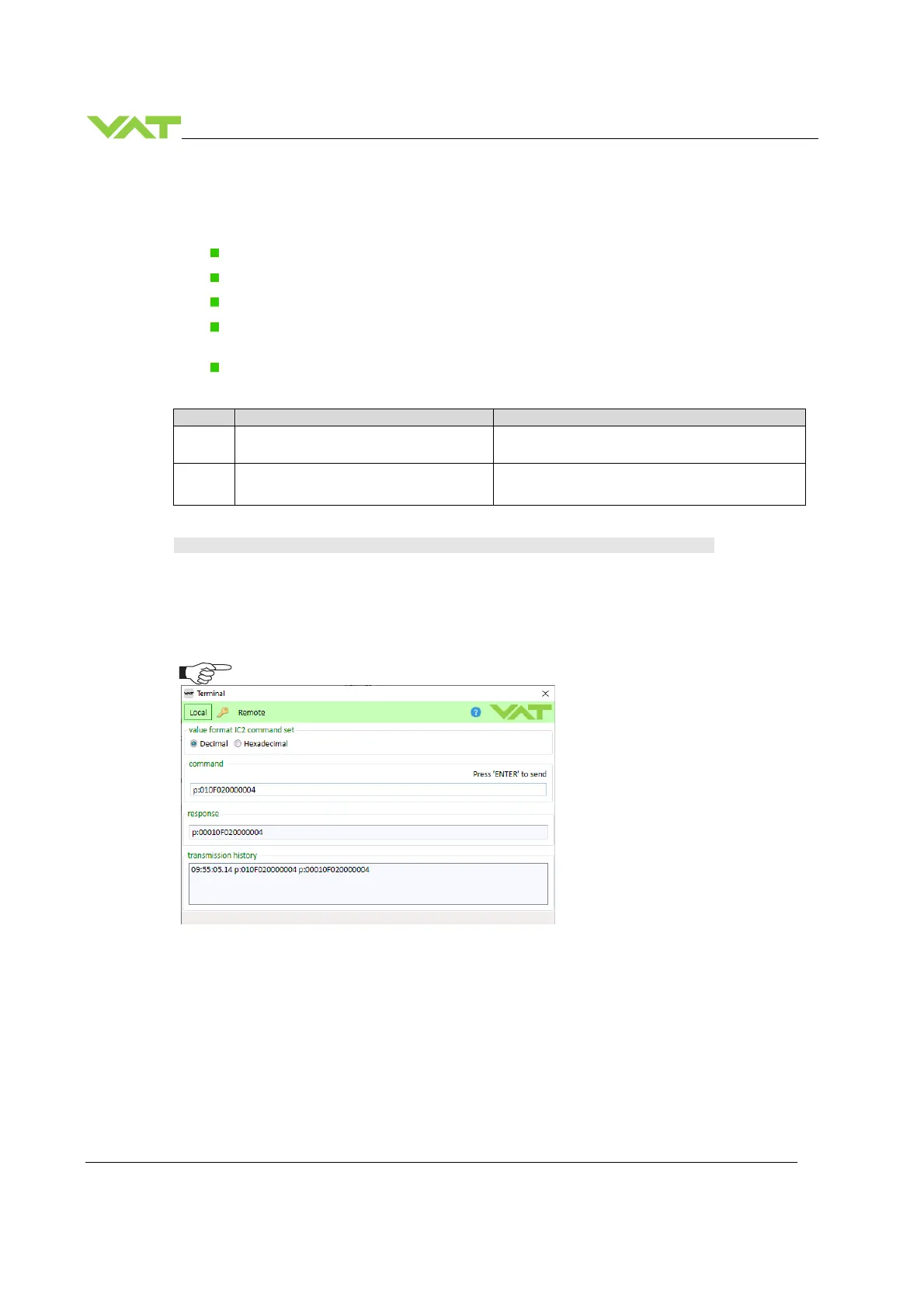

All command input can be done by local service via CPA Terminal
