Vertiv | SmartAisle2 | User Manual 92
Installation
2.11.2. Installing the Lighting Controller
Remove the adapter lighting controller following which the control is mounted on both sides of the cartridge by
using nuts and screws.

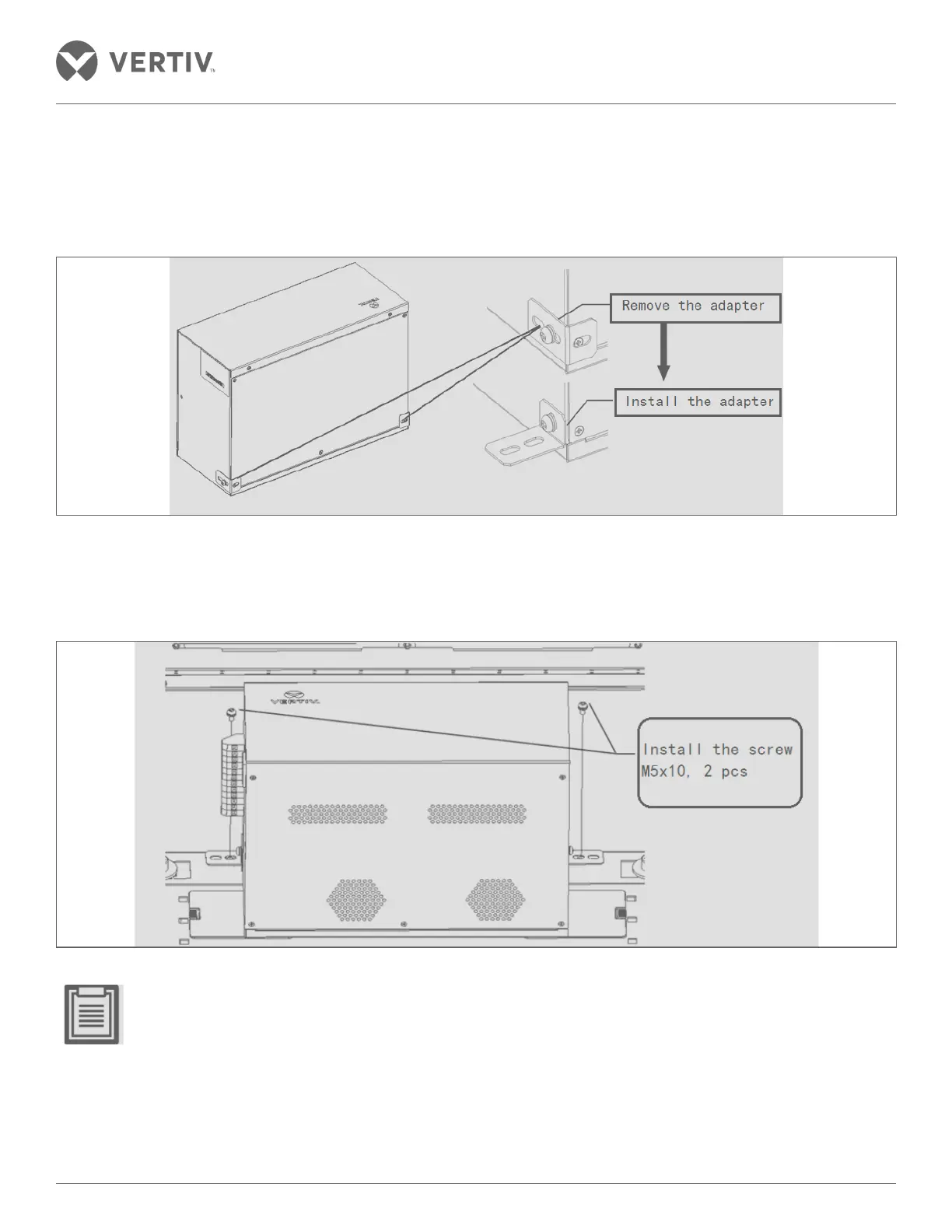

Figure 2-100 Control cartridge mounting adapter
The control box is placed in the rear roof support. It has a height adjustment adapter and an adapter fastening
screw. The screw helps in the connection between the control box and roof support.
Figure 2-101 Mounting the lighting controller
• The lighting controller cooling holes face outwards.
• It is recommended that the lighting controller is mounted on top of the channel near the side of the second
lighting switch cabinets.
• If the lighting controller and the lighting switch are on the same side (on the side of the control box and not
the cabinet roof), it will aect the connection.
