Vertiv | SmartAisle2 | User Manual 29
Installation
2.7. Installation of the Channel System
In this section, installation of the roof, electric door, mechanical door, and the bottom of the windshield is
explained in detail.
2.7.1. Roof Installation
Sl. No. Details of Equipment
1 Base
2 Server Cabinet
3 Network Cabinet
4 Access door
5 Top Plate
6 A/C Column
7 Distribution Cabinet
8 Strong wire passage groove
9 Power cable trunking; copper and fiber cable tray
10 Cabinet top wire groove
11 Control panel

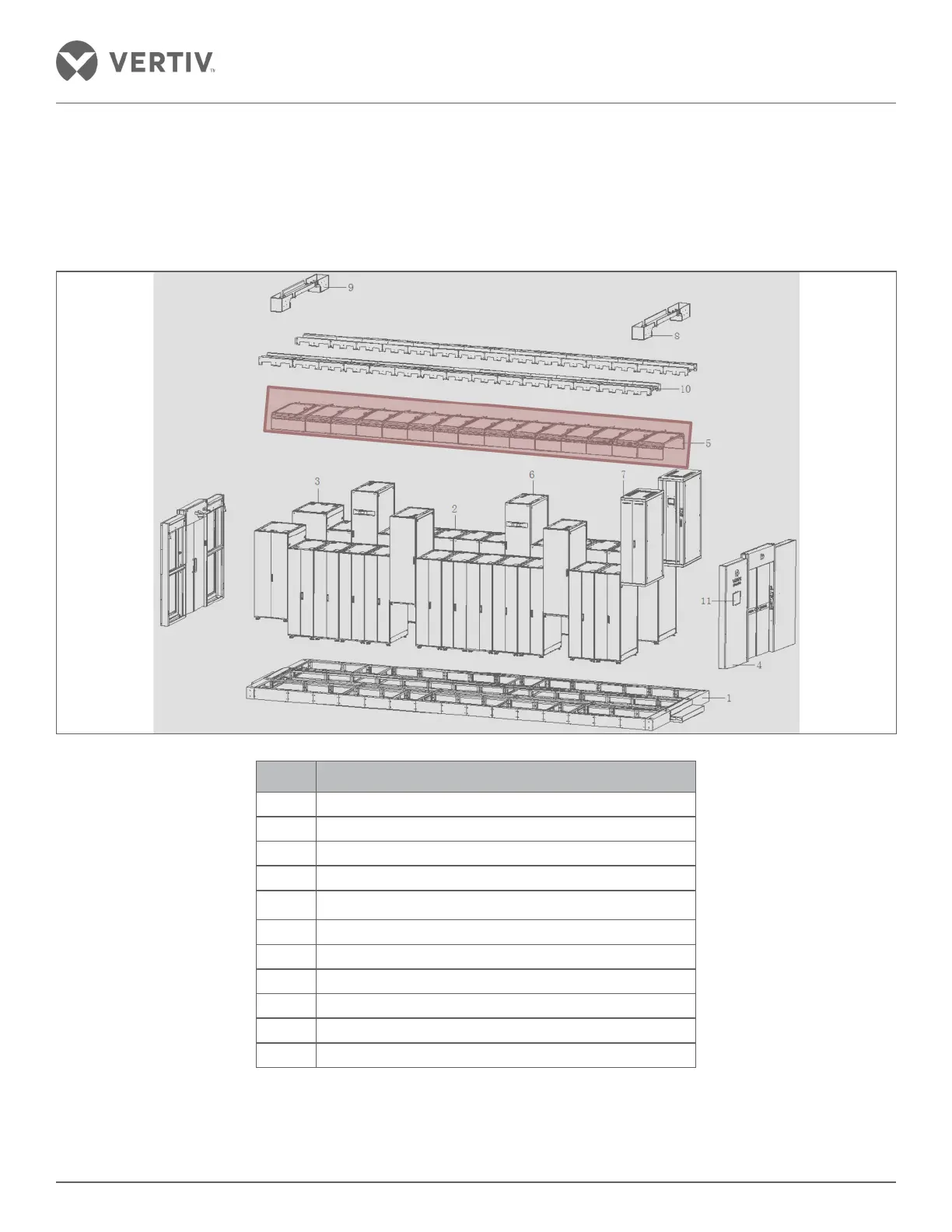

In this section, the roof installation will be explained in depth with the help of schematic diagrams to enable users
to get grip with the procedure.
