Vertiv | SmartAisle2 | User Manual 98
Installation
2.12.5. Top Open Wiring
Appendix I: Lighting Connector shows the open top connected to two open connections.
• The opening button is used to switch on the controller wiring routing as shown in Figure 2-109. It should be
upright over the lintel with the line passing through the aperture, along the roof frame to the top of the cabinet
row lines.

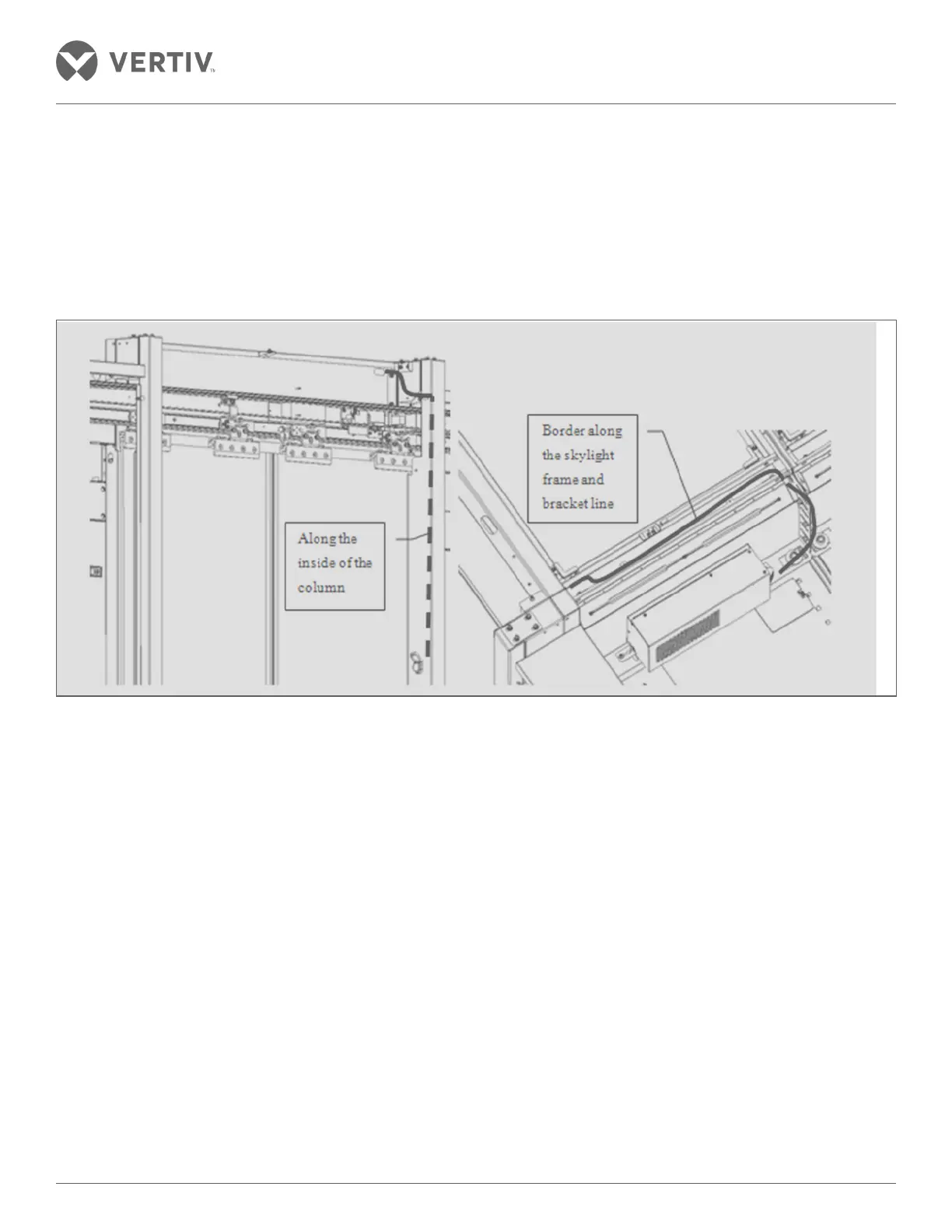

Figure 2-109 Opening button to open the wiring routing controller
• The electromagnetic lock wiring is routed to the controller opening the top plate as shown in Figure 2-109.
The cable is led across the cable enclosure along the roof frame at the top of the row lines.
