Vertiv | SmartAisle2 | User Manual 8
Introduction
1.4.4. Indoor unit and outdoor unit distance
If the one way equivalent length is over 30 m, or if the vertical height dierence between the indoor and outdoor
unit exceeds the values shown in Table 1-4, contact the Vertiv local oice or oice of the local dealer to ascertain
the need for additional components to extend the pipeline and other measures.
Table 1-4 Perpendicular to the indoor unit and outdoor unit level dierence
Relative position Drop
The outdoor unit is higher than indoor unit Maximum: +30 m
The outdoor unit is below the indoor unit Maximum: -8 m
1.4.5. Load-bearing
A typical configuration of the SmartAisle2 product is as follows: weight of about 9 tons, an area of about 32.6 m
2
,
and heavy user equipment is considered the bearing capacity post the installation.
1.5. Configuration Program

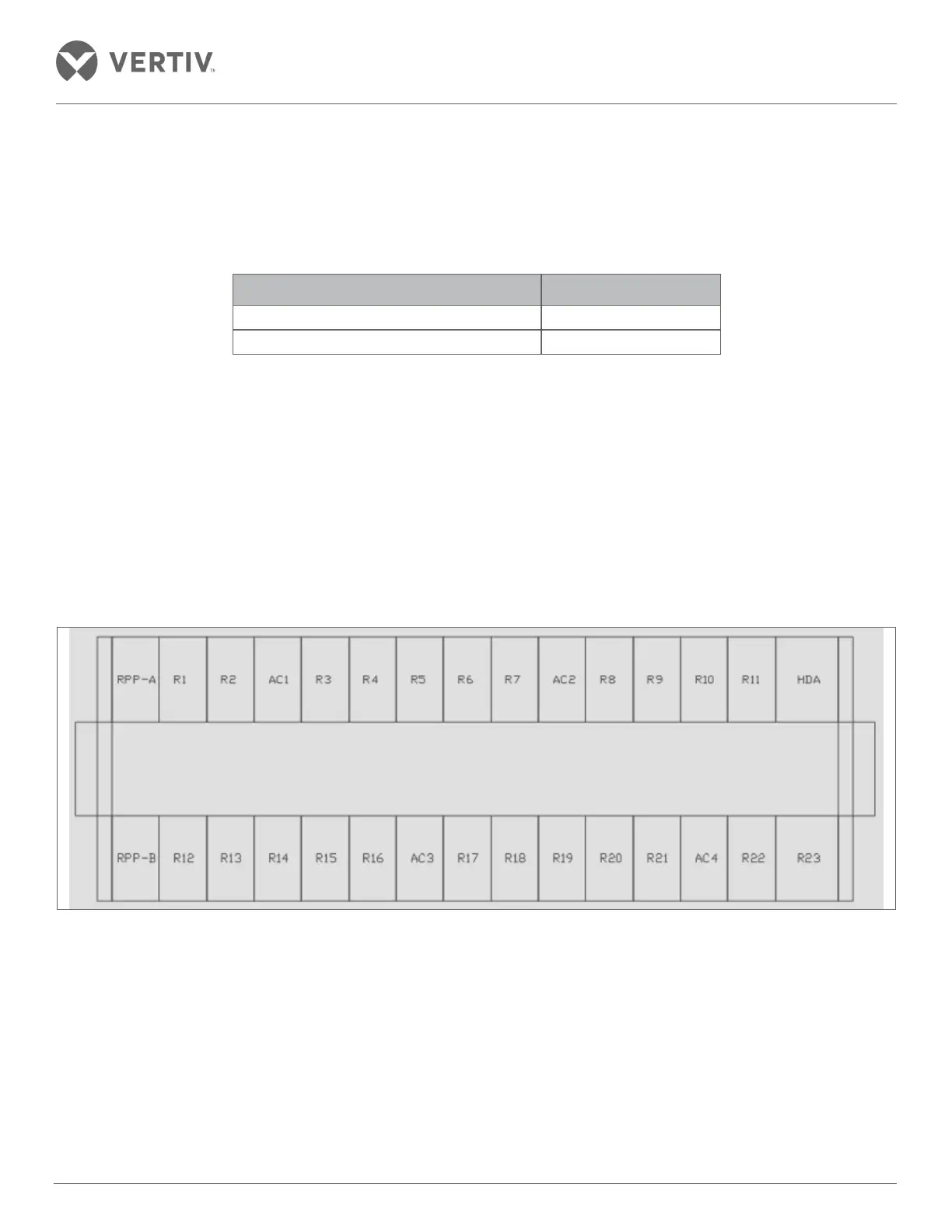

The configuration layout is shown in Figure 1-4.
Figure 1-4 Configuration Layout
