Vertiv | SmartAisle2 | User Manual 71
Installation
F is set to adjust the pendulum stoppers
• The transfer pine nut opposite to F helps to adjust the longitudinal center position of the glass door, without
significant friction with the tops on the front and rear columns.

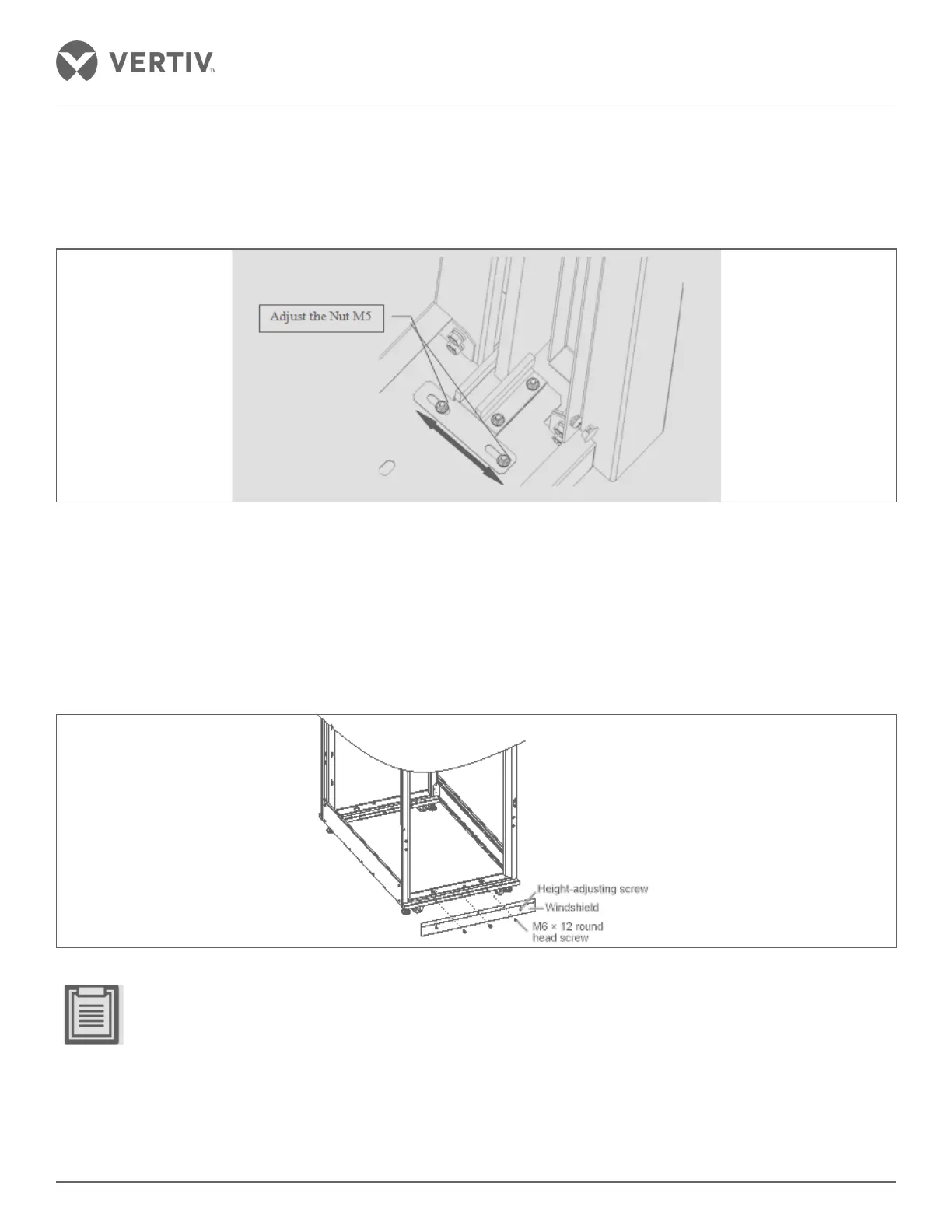

Figure 2-78 Adjusting the ground stopper
Do not install the side door pocket; wait for the control panel electrical installation following which the side panel
is fixed after the commissioning process.
2.7.4. Wind shield installation at the bottom without dismantling the feet
Loosen the height-adjustable screws; Fix the windshield on the rack beam as shown in Figure 2-79.
Figure 2-79 Mounting the windshield
• On installing the wind deflector, the windshield falls to the lowest position and the height has to be adjusted
by tightening the screws.
• E only supports the cabinet and a bottom mounting the CRV+ windshield.
• The bottom of the windshield are of three types- 300 mm wide at the bottom spoiler (for a 300 mm wide
cabinet), 600 mm wide at the bottom spoiler (for 600 mm wide cabinet), and the bottom of the windshield
which is 800 mm (pertaining to a 800 mm wide cabinet). Mount it in the same way as the bottom of the
three types of the windshield.
