Vertiv | SmartAisle2 | User Manual 17
Installation
Following are the steps for unpacking the wooden box for international shipment:
1. The product package assembly should be done on an open, solid horizontal surface.
2. Using a hammer carefully and a screwdriver to dismantle the wooden packaging.
3. Remove the pallet.
4. Carefully, dismantle the film and packaging material on the product with a utility knife.
Following the unpacking, confirm the parts and components by referring to the part checklist. If any part is missing
or damaged, it has to be immediately informed to the carrier. For concealed damage, inform the local dealer or local
Vertiv oice immediately.
2.3. Installation Precautions
Following are the measures to be adhered prior to installation of the SmartAisle2 unit:
1. Close all the doors of the equipment and cabinets before using a forklift to lift the unit.
2. Measure and verify the installation site level prior to installation.
3. Confirm that charging operations are stalled and the installed power is disconnected before installation.
4. For installation of indoor and outdoor air conditioning units, refer to the air conditioning user manual.
5. For installation of the distribution cabinet, refer to the specific user manual.
2.4. Installation Procedures
This section deals with the mechanical and electrical installation of the SmartAisle2 components. Ensure all the
installation tools and accessories are in place before proceeding with the installation process.

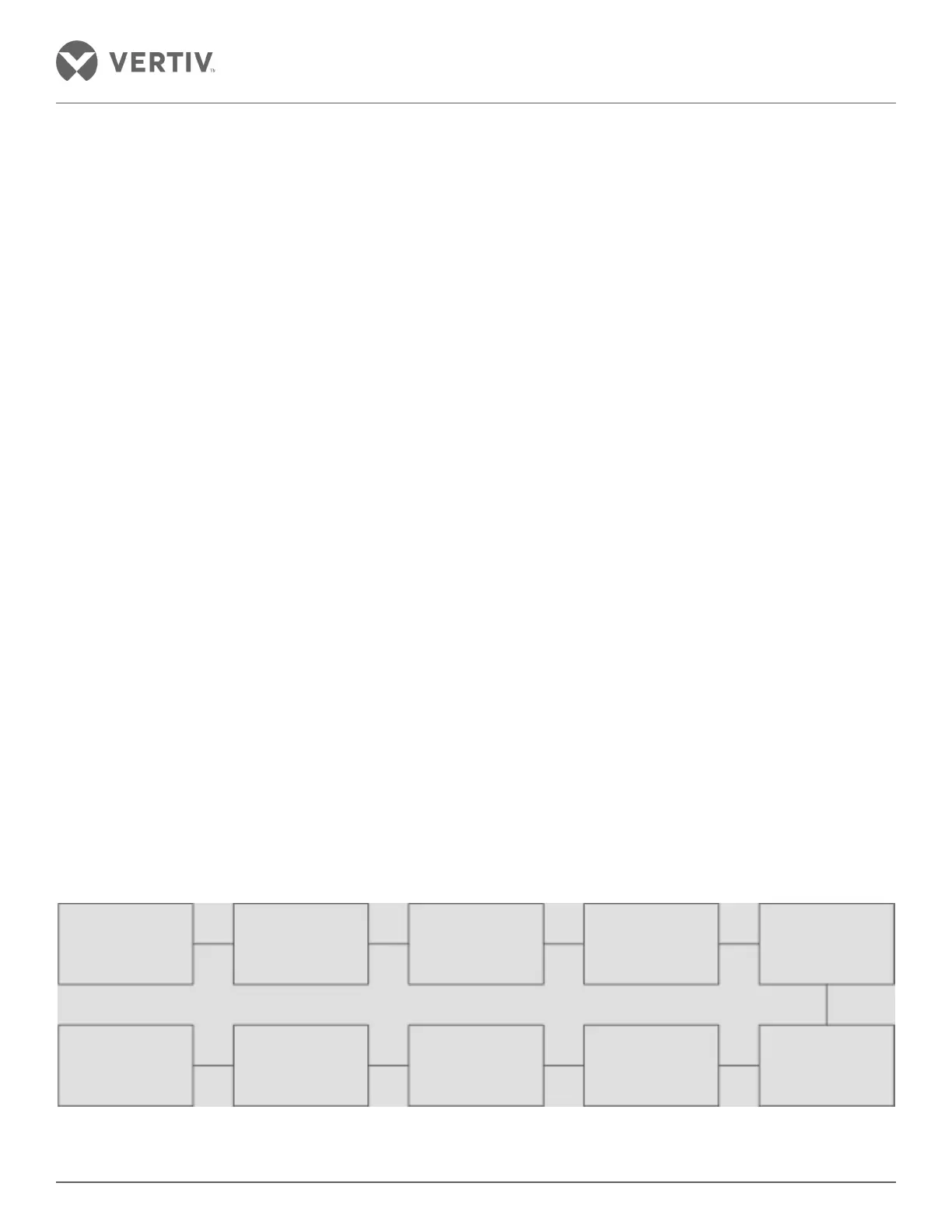

Following is the assembly flowchart for the installation process:
Base Installation Cabinet in Place
IT Cabinet
Installation
Channel
Installation
Bridge
Installation
Refrigerant
Installation
Power
Distribution
Installation
Lighting
Installation
Room Open
Installation
Monitoring the
Installation
