Vertiv | SmartAisle2 | User Manual 27
Installation
2.5.3. Leveling the cabinet
• Use a line level laser and other tools through the cabinet leveling feet when there is no leveling done on the
base cabinet.
• If a base is used, connect the fastener to the base and the cabinet as shown in Figure 2-14.
• As the base has already been leveled earlier, use laser level tools to adjust the connection between the
fastener and the base cabinet and fine tune the adjustment shims.

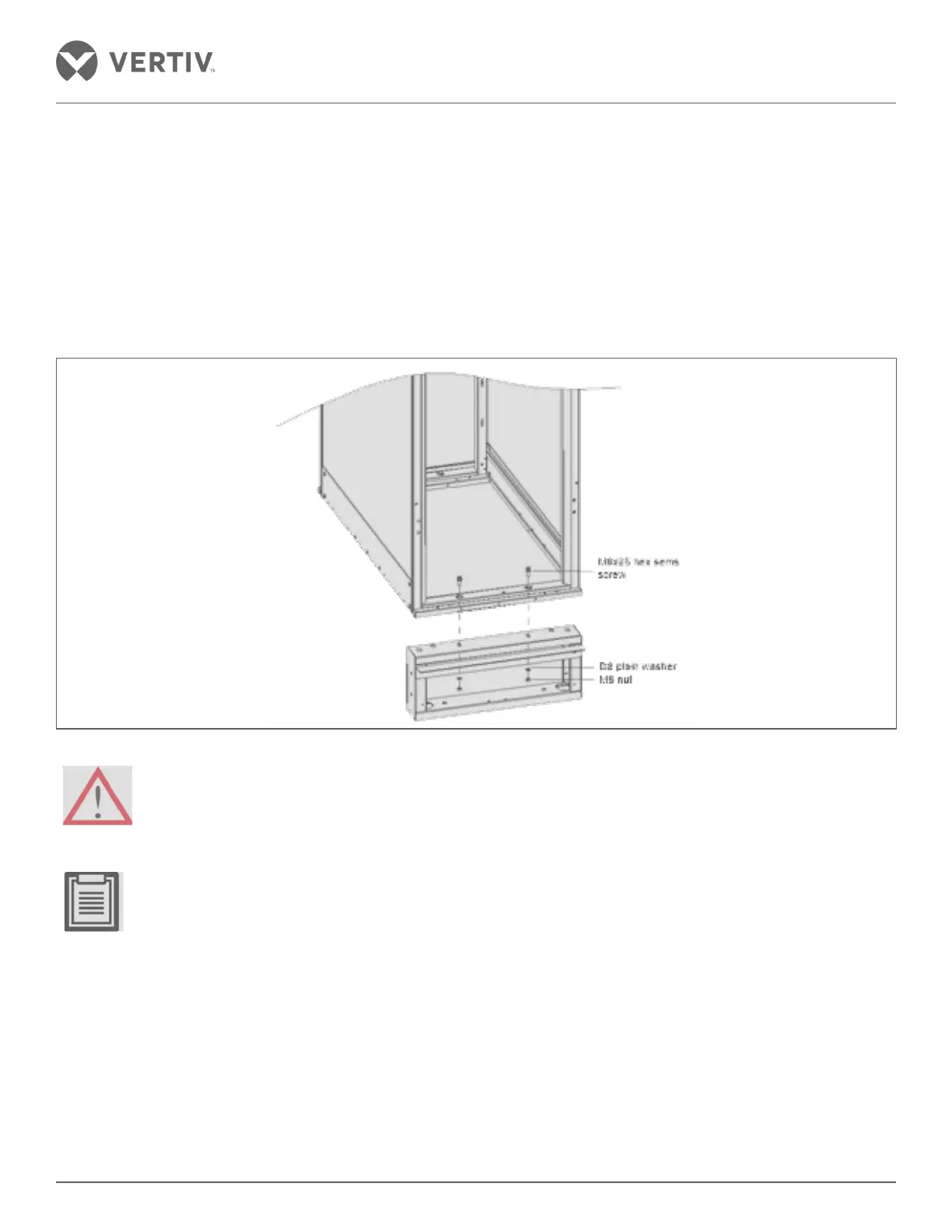

Figure 2-14 Base connected to the cabinet
• During disassembly, multiple personnel are required to prevent severe injury or equipment damage.
• Leveling the control cabinet and a base connected to the fasteners isn’t necessary.
• For SPM, air conditioner, and racks, refer to the respective user manuals for leveling procedures.
• The cabinet must be leveled to meet the subsequent installation of a closed system; if not implemented
and if quality issues occur, the customer is accountable.
