Operation & Display Panel
3.5.2. Standard Basic Page
This page displays the SmartAisle2 product model, the air conditioning/UPS load rate dial, PUE dial, Ambient
Temperature dial, and the Alarm Dial.

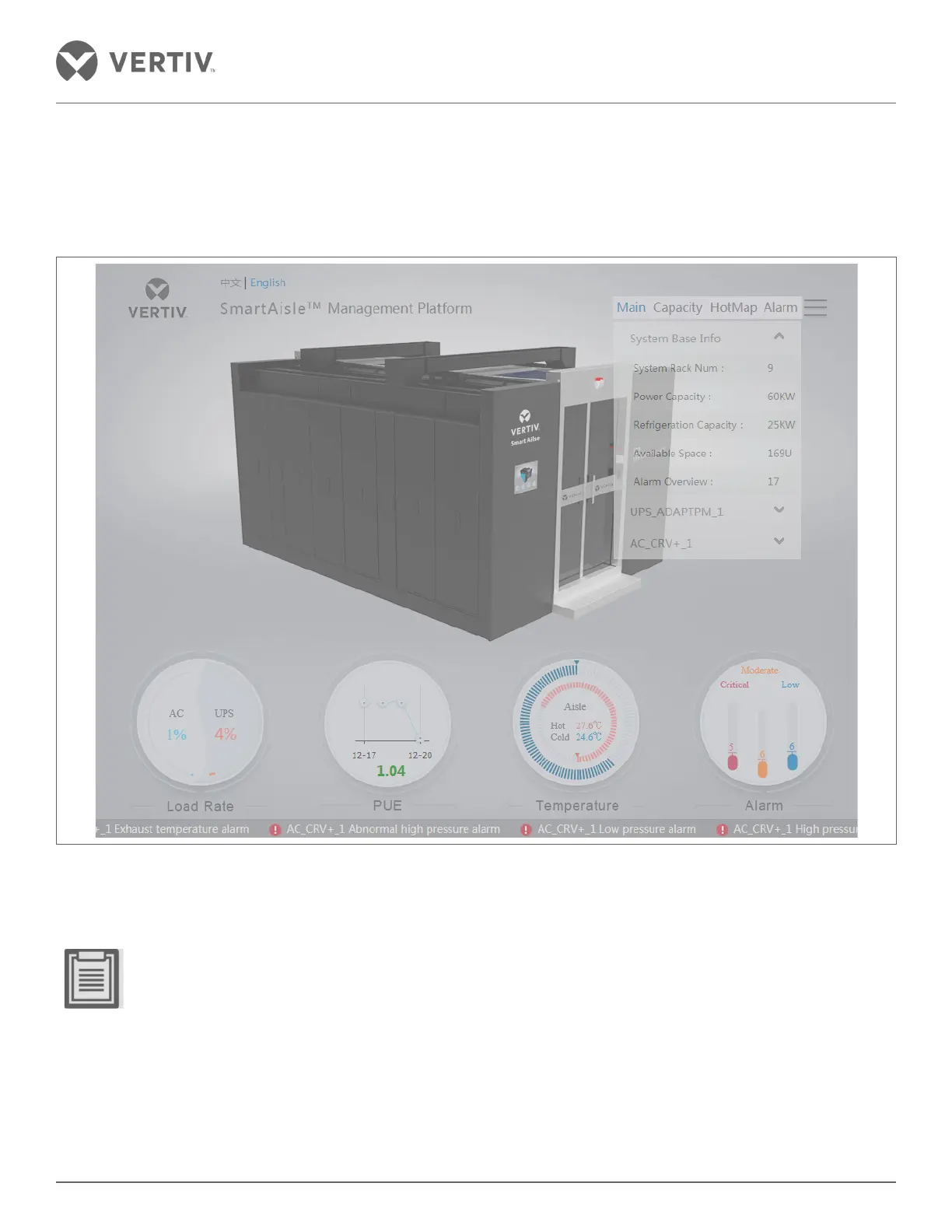

Figure 3-6 Standard Page
The navicon on the top right corner of the page needs to be clicked following which the number of cabinets, total
capacity of the power supply, total cooling capacity, free space, and the system alarms will be displayed.
• Click the drop-down menu to hide the blank page.
• To go back to the home page, click the Vertiv Icon.
• The PUE dial displays the historical PUE Curve and is based on the aggregate information starting from five
days prior to the current date.
• Clicking on the Dials for the Load Factor, PUE, Ambient Temperature, and Alarms will take the user to their
respective pages.
