Vertiv | SmartAisle2 | User Manual 93
Installation
2.11.3. Lighting System Wiring
Appendix I: Lighting Connector has an illustration of the connector for illumination.
Route the lighting controller and lighting switch wiring as depicted in the Figure 2-102. The wiring should be
upright and over the lintel passing through the aperture, along the room frame to the top of the cabinet frame.

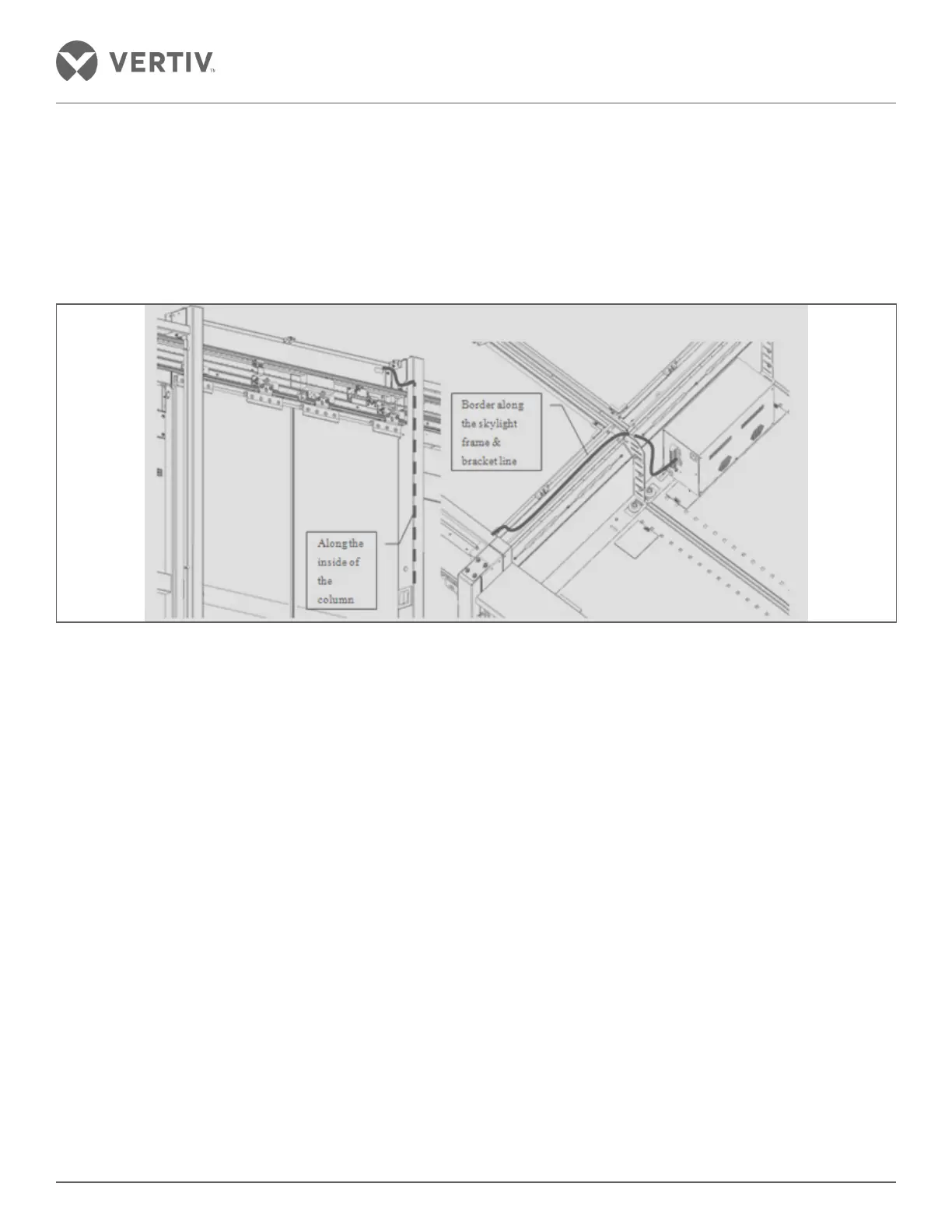

Figure 2-102 Routing the wiring for the lighting controller and switch
Lead the wiring to the lamp lighting controller as shown in Figure 2-103. The wire should be routed from the cable
enclosure along the roof frame at the top of the row lines.
