Vertiv | SmartAisle2 | User Manual 24
Installation

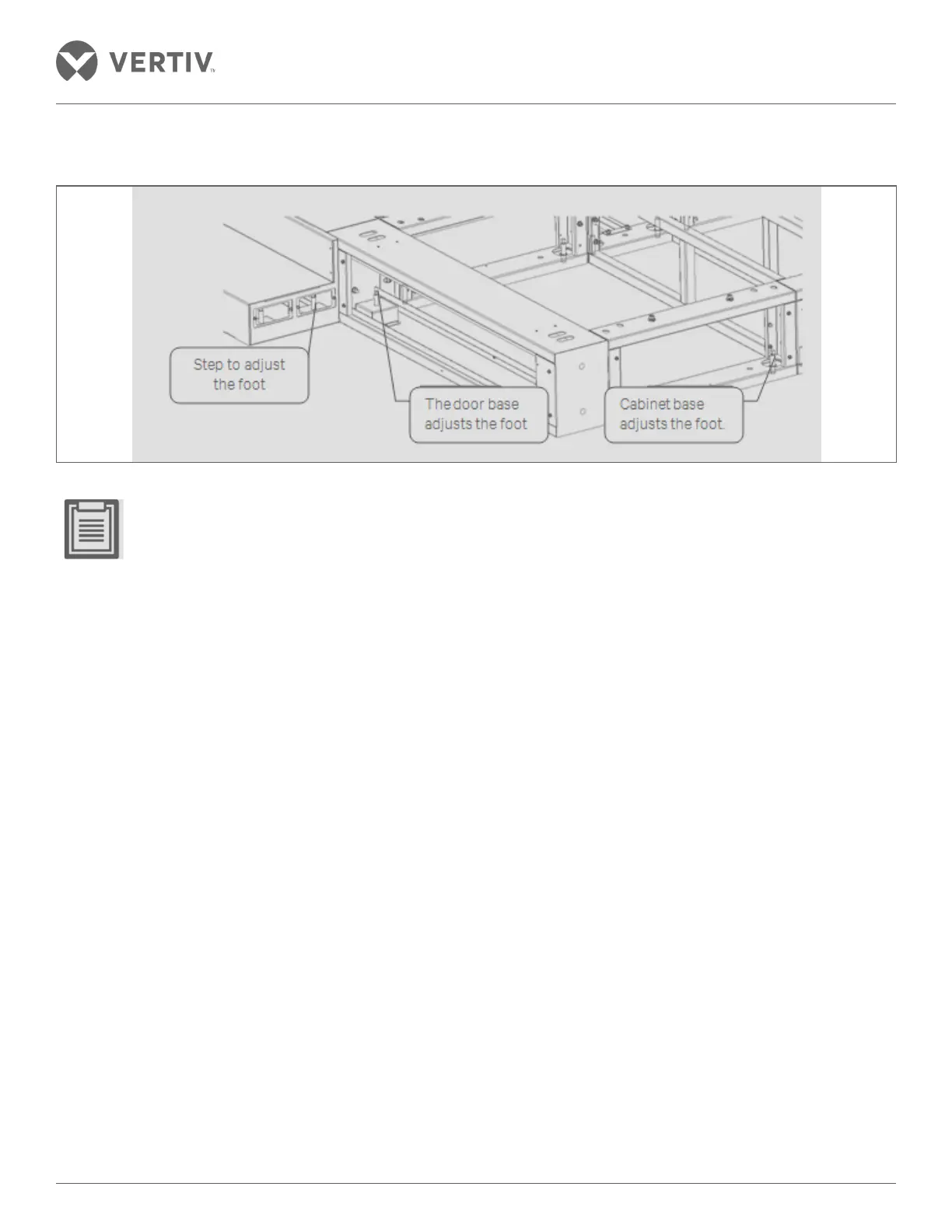

Swing the wrench to the base leveling foot as shown in Figure 2-13.
Figure 2-13 Base tone flat feet
• The nuts and bolts shall be protruding out at their maximum depth throughout the fastener base.
• Leveling the base must be done using a line leveling laser and not on visual inspection by the installation
personnel.
• The base must be leveled to meet the cabinet and subsequent installation of a closed system. If quality
issues are caused due to uneven surface, the customer is accountable as leveling is mandatory.
2.4.3. Fixing the base
A base is connected to ground through a fixed orifice. A predetermined ground base fixing hole and ground
connection is recommended if there are seismic requirements in the room.
2.4.4. Pre-conduit arrangement
The layout diagram of the indoor air conditioning unit is prearranged within the base line and ample length is
allowed.
