Operation
Control lever on the left
Information!
Always perform smooth control movements.
Auxiliary hydraulics
NOTICE
Ball-type cock E (under the valve compartment cover) must be in the correct
position to ensure optimal functionality.
• Turn the handle of ball-type cock E toward F when using the auxiliary
hydraulics.
Actuating the auxiliary hydraulics:
Oil flow (left):
☞ Press hammer pedal 18 backward.
Oil flow (right):
☞ Press hammer pedal 18 forward.

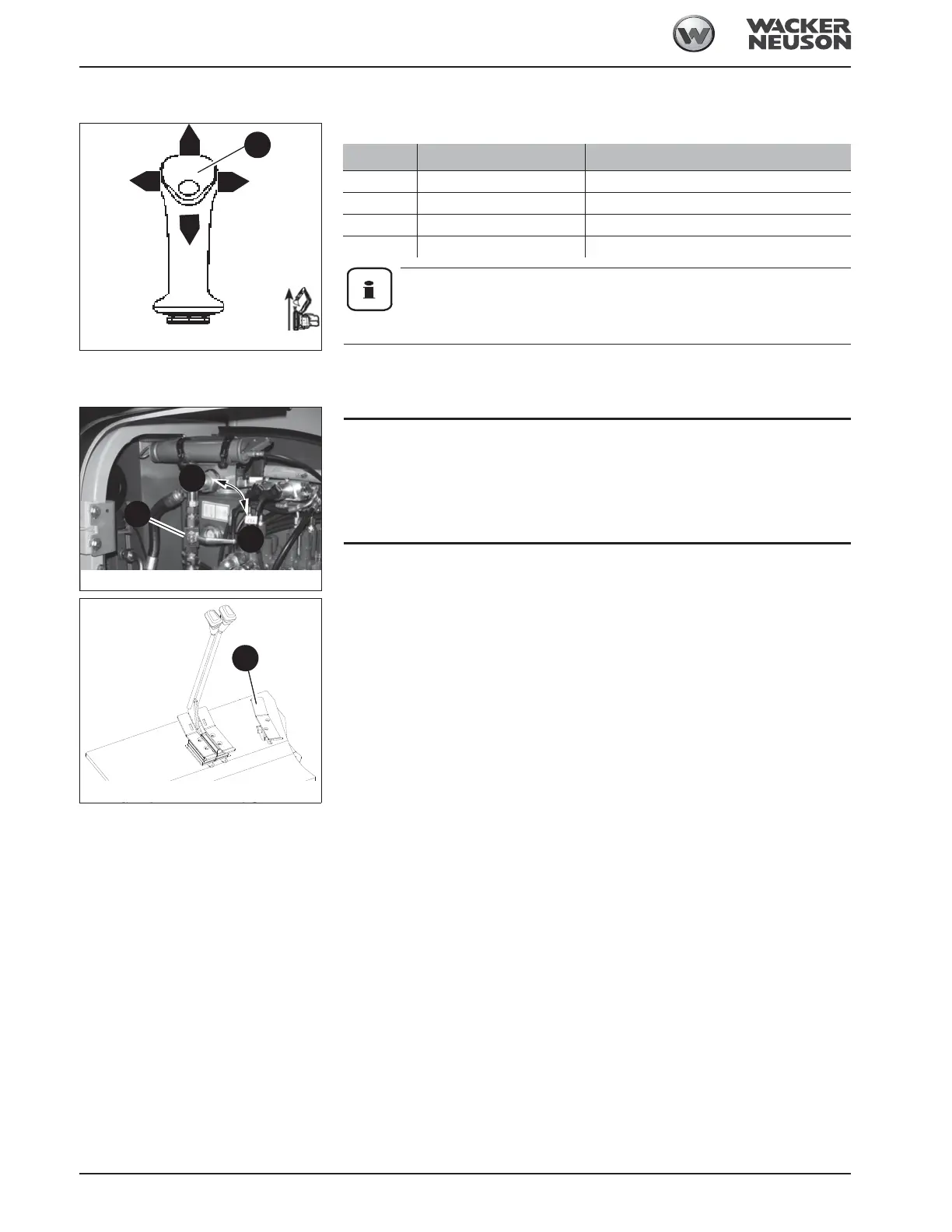

Fig. 175: Control lever on the left
D
C
A
B
1
Position Lever Function
•A ☞ Forward
➥ Stick is extended
•B ☞ To the right
➥ Upper carriage rotates to the right
•C ☞ Backward
➥ Stick is retracted
•D ☞ To the left
➥ Upper carriage rotates to the left
Fig. 176: Ball-type cock
E
F
G
Fig. 177: Auxiliary hydraulics
18
