Wacker Neuson 2503 User Manual

OM 25-3503 us – Edition 4.1 * 2503_3503b340.fm 3-83
Operation
Control lever on the right
Lowering the boom with the engine stopped
☞ Ensure that no one is in the danger zone of the machine
☞ Turn the starting key to position 1
☞ Press and hold the control lever on the left (L) and right (R) forward until the boom is
completely lowered.
☞ Return the control levers on the left (L) and right (R) to neutral position

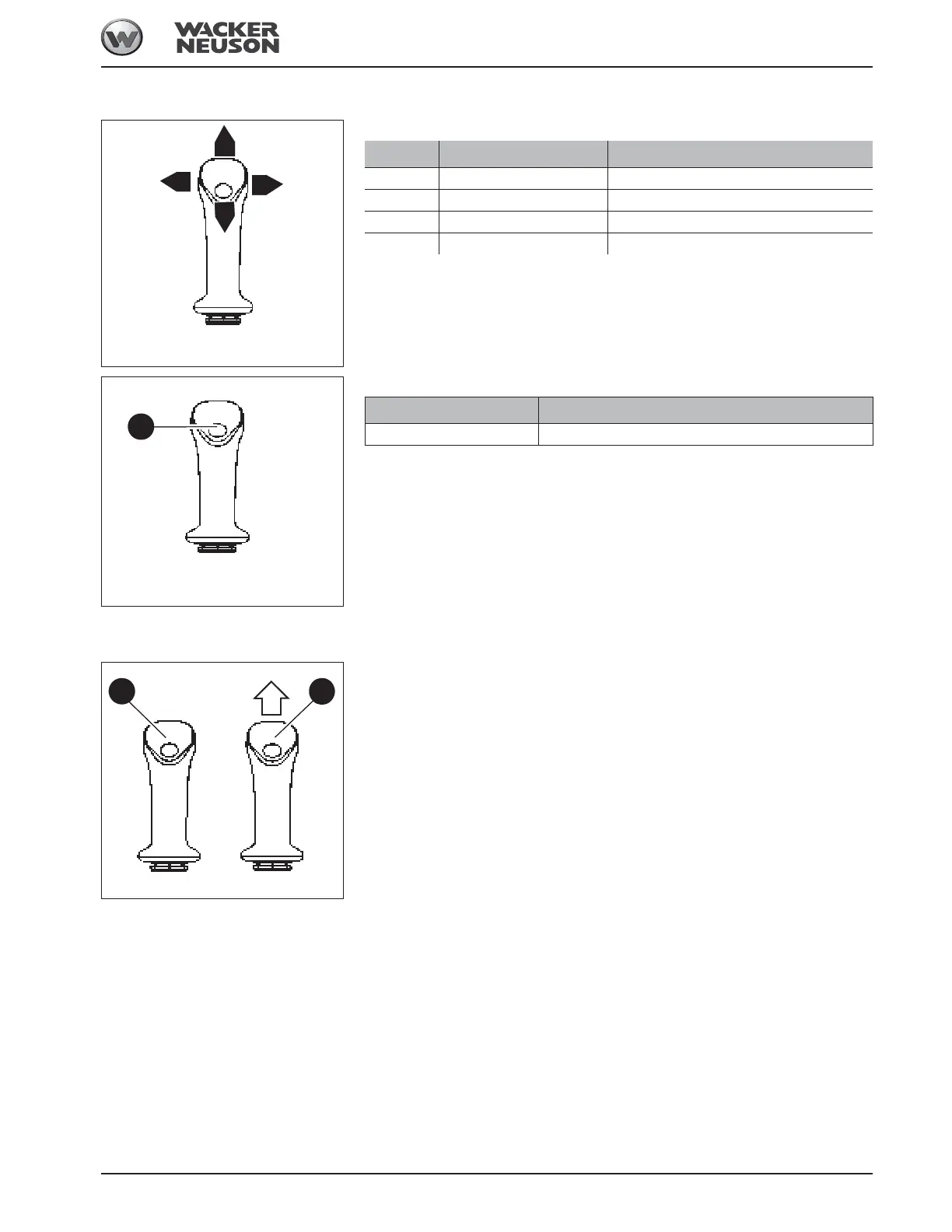

Fig. 198: Control lever on the right
H
G
E
F
Position Lever Function
•E ☞ Forward
➥ Boom is lowered
•F ☞ To the right
➥ Bucket is tilted out
•G ☞ Backward
➥ Boom is raised
•H ☞ To the left
➥ Tilt in the bucket
Fig. 199: Functions of control lever on the right
H
Button Function
☞ H
➥ Horn
Fig. 200: Lowering the boom with the engine stopped
L R
