6.12 Dimensions model 3503 VDS

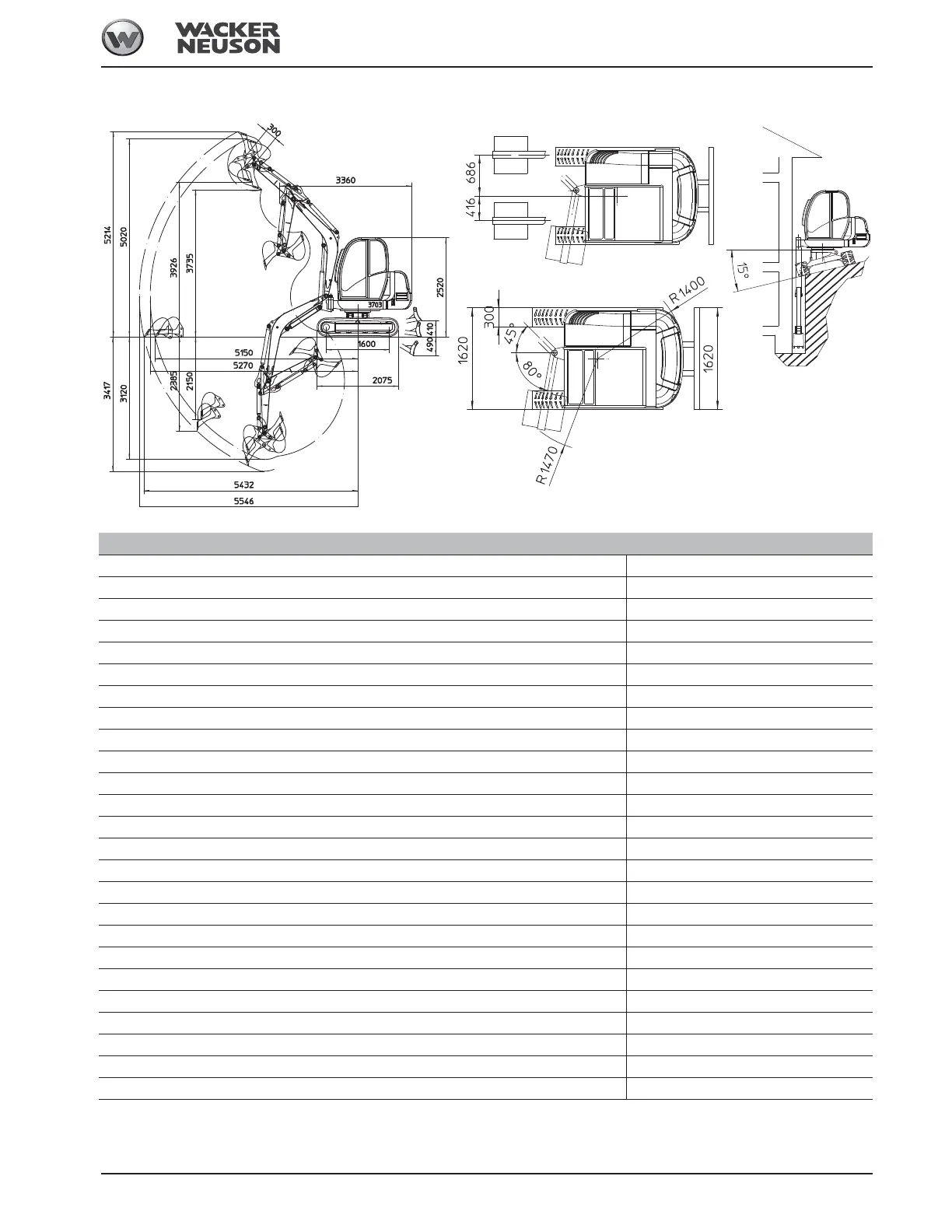

Fig. 307: Machine dimensions (model 3503 VDS)
Main data Model 3503 VDS
Height/width 2520 mm/1620 mm (99 in/64 in)
Transport length 5170 mm (16'-12'')
Max. digging depth 3120 mm (10'-3'')
Stick length (standard) 1335 mm (52 in)
Stick length (long version) 1635 mm (64 in)
Max. digging depth for long stick (+ 300 mm) 3417 mm (11'-3'')
Max. vertical digging depth 2105 mm (83 in)
Max. vertical digging depth (long stick) 2385 mm (94 in)
Max. digging height 5020 mm (16'-6'')
Max. digging height (long stick) 5220 mm (17'-2'')
Max. tilt-out height 3735 mm (12'-3'')
Max. tilt-out height (long stick) 3935 mm (12'-11'')
Max. digging radius 5270 mm (17'-3'')
Max. digging radius (long stick) 5546 mm (18'-2'')
Max. reach at ground level 5150 mm (16'-11'')
Max. reach at ground level (long stick) 5432 mm (17'-10'')
Max. breakout force at bucket tooth 30.4 kN (6834 lbf)
Max. tearout force (standard stick) 20.6 kN (4631 lbf)
Max. tearout force (long stick) 16.8 kN (3777 lbf)
Min. tail end slewing radius 1400 mm (55 in)
Max. tail end lateral projection (90° rotation of upper carriage) 590 mm (23 in)
Max. boom displacement to bucket center (right side) 686 mm (27 in)
Max. boom displacement to bucket center (left side) 416 mm (16 in)
Max. tilt angle for VDS 15°
Stabilizer blade tilting angle +/à 25°
