3-36 OM 25-3503 us – Edition 4.1 * * 2503_3503b330.fm
Operation
3.24 Light system
Working lights
The switch panel for the light system is located on the instrument panel.
Information!
The symbol can vary depending on version – see Switch panel (right) on page
3-6
Roof lights (option)
Motorists can be blinded by bright lights on the job site!
Can cause serious injury or death.
• Do not switch on the working lights during machine travel on public roads.
During machine operation, only switch the working lights on when no one
can be blinded by it!
The working light illuminates in the first position, the roof lights illuminate, too, in the sec-
ond position.
Information!
The symbol can vary depending on version – see Switch panel (right) on page
3-6
l

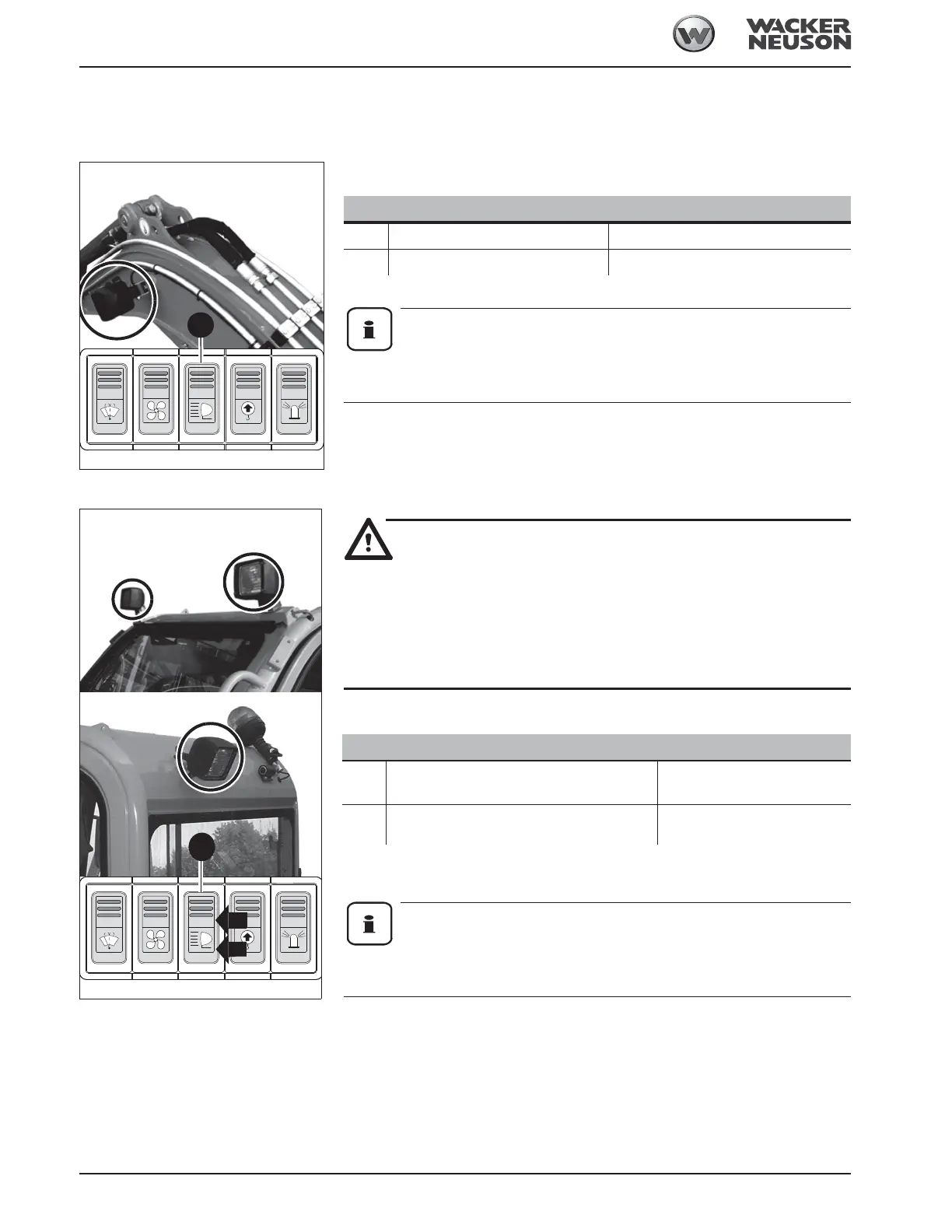

Fig. 111: Light system switches
53
Boom light
ON
☞ Press switch 53 down
➥ Indicator light in switch 53 illuminates
OFF
☞ Press switch 53 up
➥ Indicator light in switch 53 goes out
Fig. 112: Roof lights switch
1
2
53
Roof lights
ON
☞ Press switch 53 to the 1st position
☞ Press switch 53 to the 2nd position
➥ Indicator light in switch illumi-
nates
OFF
☞ Press switch 53 up
➥ Indicator light in switch goes
out
