OM 25-3503 us – Edition 4.1 * 2503_3503b340.fm 3-97
Operation
3.54 Powertilt (option 3503)
Two versions are available:
• Powertilt with hydraulic quickhitch (option) – see chapter 3.53 Hydraulic quickhitch
(option) on page 3-92
• Powertilt welded onto an attachment.
Crushing hazard due to rotating movements of the Powertilt
unit!
Can cause serious injury or death.
• Do not allow anyone to stay in the danger zone!
Do not put the Powertilt unit into operation unless:
• The machine is equipped with an acoustic or optical warning device – see
chapter 3.57 Safe load indicator (option) on page 3-102
• The machine is equipped with a hose burst valve – see chapter Safety fea-
ture “Hose burst valve” (option) on page 3-102
• You read, understand and follow the instructions in the following chapter
– see chapter 2.9 Applications with Lifting Gear on page 2-10.
Information!
When using the Powertilt unit, the maximum bucket width is limited to 1000
mm (39 in).
1 Swiveling range 180°
2 Load hook (option)
3 Hydraulic connection 1/4"
4 Hydraulic connection 1/4"
5 Type label
Welding work may only be performed by a Wacker Neuson service center or
customer service!

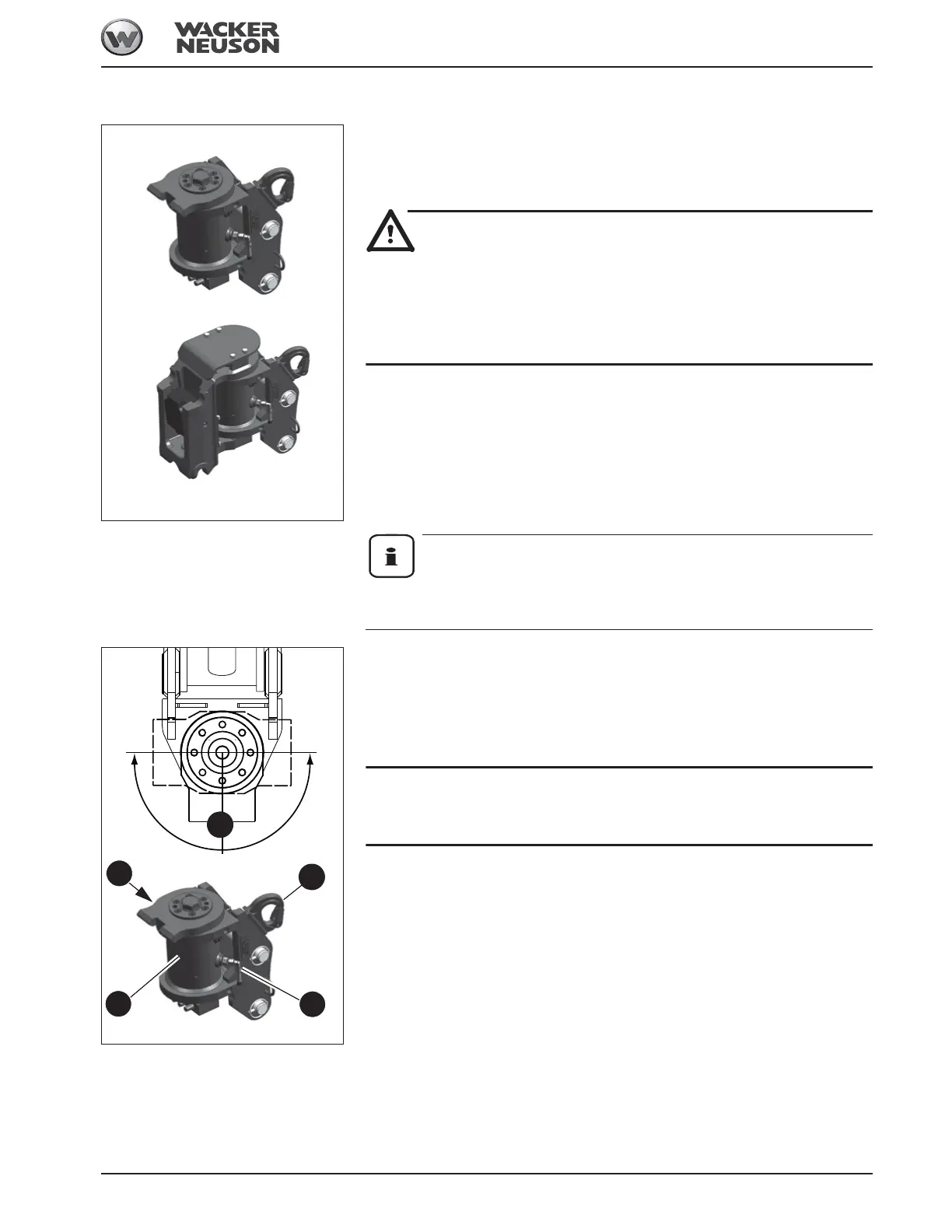

Fig. 227: Powertilt versions
1
Fig. 228: Powertilt overview
2
4
5
3
