6.13 Lift capacity table 2503
All table indications in kg and horizontal position on firm ground without bucket.
If equipped with a bucket or other attachments, lift capacity or tilt load is reduced by bucket
or attachment dead weight.
Calculation basis: according to ISO 10567
The compact excavator’s lift capacity is restricted by the settings of the pressure limiting
valves and the hydraulic system’s stabilizing features.
Neither 75 % of the static tilt load nor 87 % of the hydraulic lift capacity is exceeded.
A
3.5 m
(11'-5")
3.0 m
(9'-8")
2.5 m
(8'-2")
2.0 m
(6'-6")
B
3.0 m
(9'-8")
415*
(915*)
415*
(915)
400*
(882*)
400*
(882*)
2.0 m
(6'-6")
410*
(904*)
350
(772)
410*
(904*)
380
(838)
420*
(926*)
420*
(926*)
460*
(1,014*)
460*
(1,014*)
1.0 m
(3'-3")
425*
(937*)
310
(683)
460*
(1,014*)
365
(805)
540*
(1,190*)
460
(1,014)
670*
(1,477*)
595
(1,312)
1000*
(2,205*)
815
(1,797)
0.0 m
(0'-0")
450*
(992*)
315
(694)
505*
(1,113*)
355
(783)
635*
(1,400*)
440
(970)
835*
(1,841*)
560
(1,235)
1210*
(2,668*)
770
(1,698)
î1.0 m
(î3'-3")
475*
(1,047*)
380
(838)
580*
(1,279*)
435
(959)
790*
(1,742*)
560
(1,235)
1030*
(2,271*)
775
(1,709)
î2.0 m
(î6'-6")
445*
(981*)
445*
(981*)
435*
(959*)
435*
(959*)

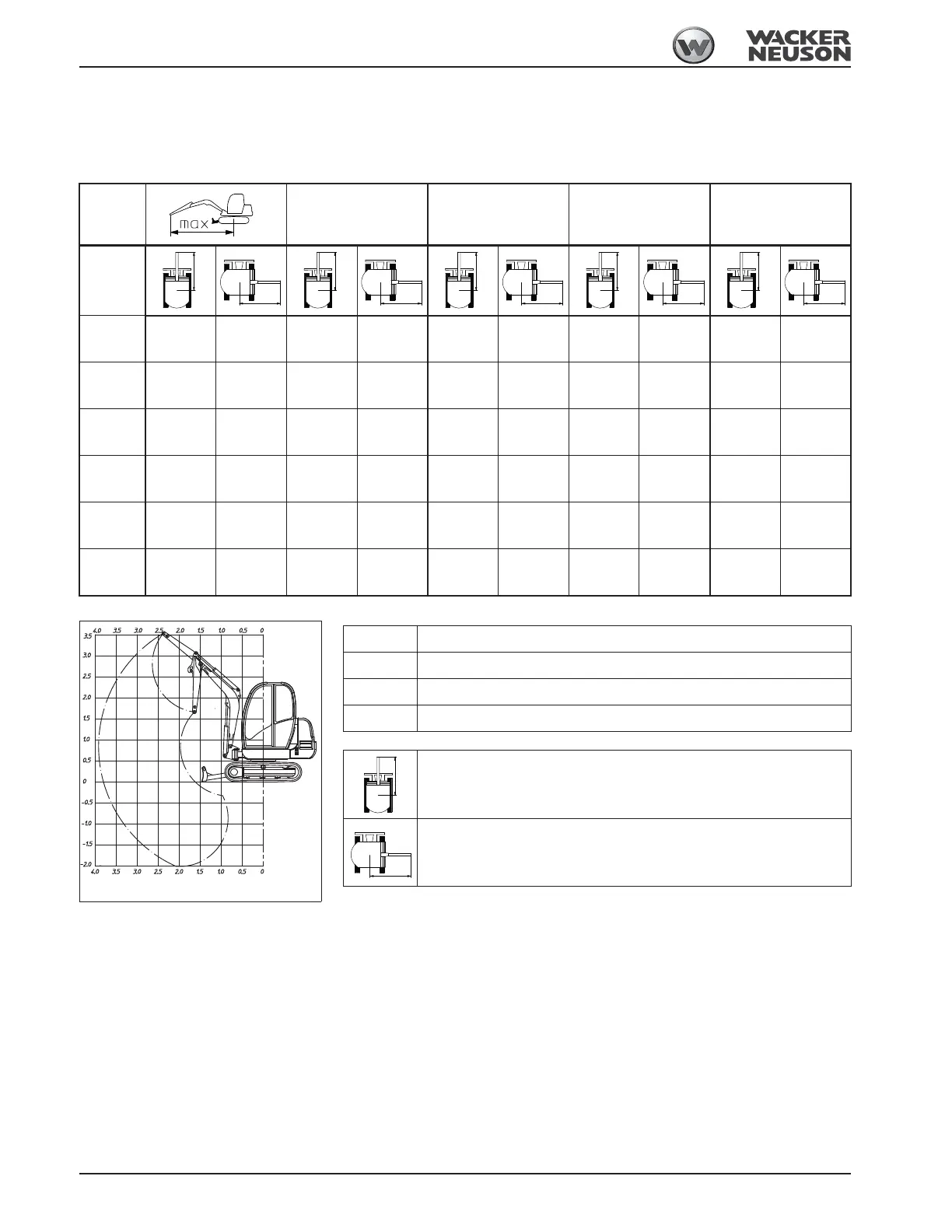

Fig. 308: Lift capacity table (model 2503)
max Permissible load on extended stick
A Reach from live ring center
B Load hook height
* Lift capacity limited by hydraulic system
With the stabilizer blade in travel direction
Without the stabilizer blade, 90° to travel direction
