3-34 OM 25-3503 us – Edition 4.1 * * 2503_3503b330.fm
Operation
Operation of slewing stabilizer blade (option 3503)
Setting the slewing stabilizer blade straight
Position the stabilizer blade as shown in Fig. 108.
Slewing stabilizer blade: cleaning the slewing cylinder
In order to avoid damage, check the area around the slewing cylinder for dirt and clean it if
necessary before beginning work.
3.23 Parking the machine
Crushing hazard due to machine rolling away under its own
weight after parking it!
Can cause serious injury or death.
• Press the boom and the stabilizer blade against the ground.
• Park the machine on level ground
• Secure the tracks accordingly (for example chocks)

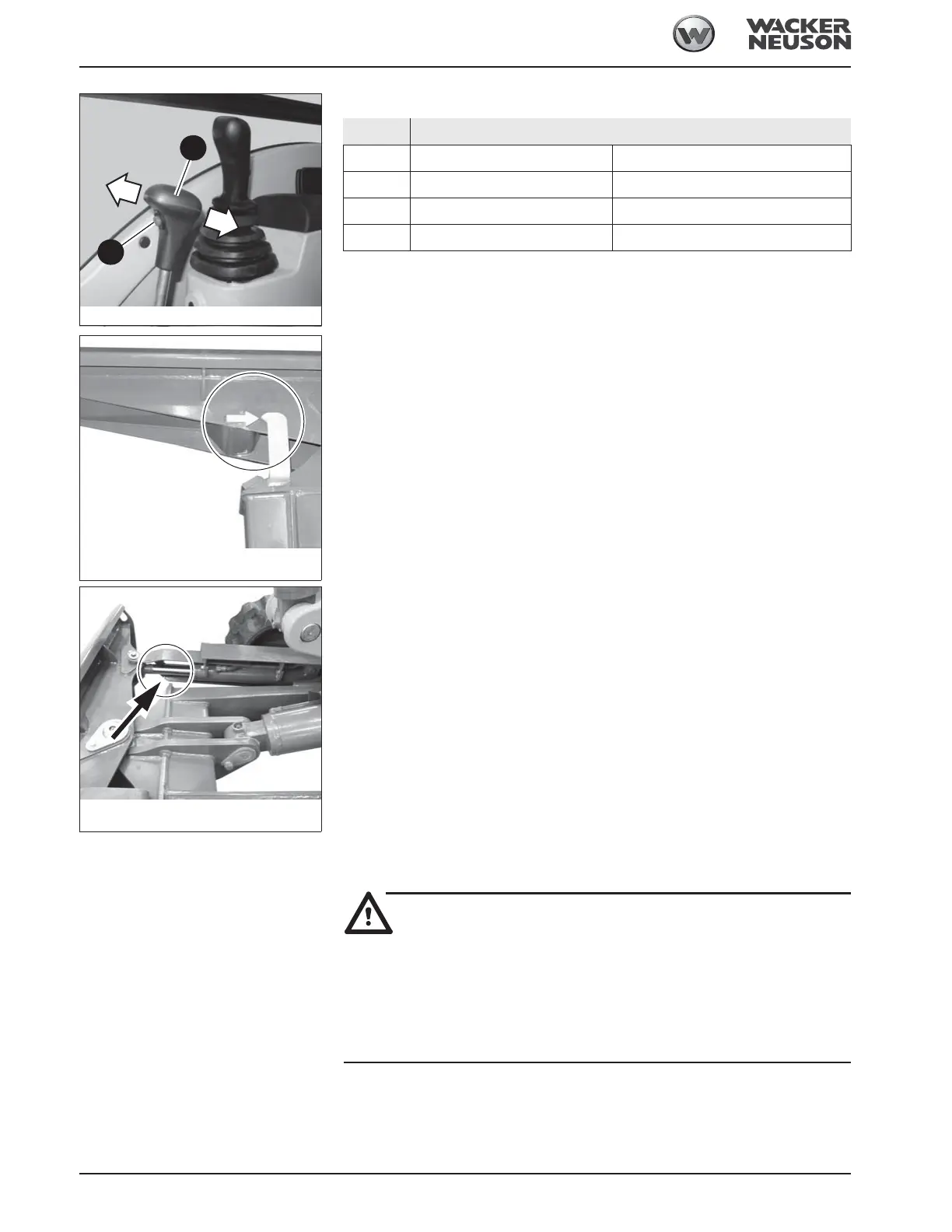

Fig. 107: Opeation of slewing stabilizer blade (option)
1
2
B
A
Position Press button B Function
1 No Lowers the stabilizer blade.
2 No Raises the stabilizer blade.
1 Yes (keep pressed) Slews the stabilizer blade to the left.
2 Yes (keep pressed) Slews the stabilizer blade to the right.
Fig. 108: Setting the slewing stabilizer blade straight (option
3503)
Fig. 109: Slewing stabilizer blade: cleaning the slewing cyl-
inder (option 3503)
