Directional valve position
Directional valve 28 is located at the left behind the seat.
Directional valve
The changeover valve switches from ISO to SAE controls and vice versa.
Changing over:
☞ Loosen the wing nut and set the valve to the required position.
☞ Retighten the wing nut after changing over.
NOTICE
No machine travel or operation if wing nut J is malfunctioning!
• Immediately contact a Wacker Neuson service center to replace a malfunc-
tioning wing nut.

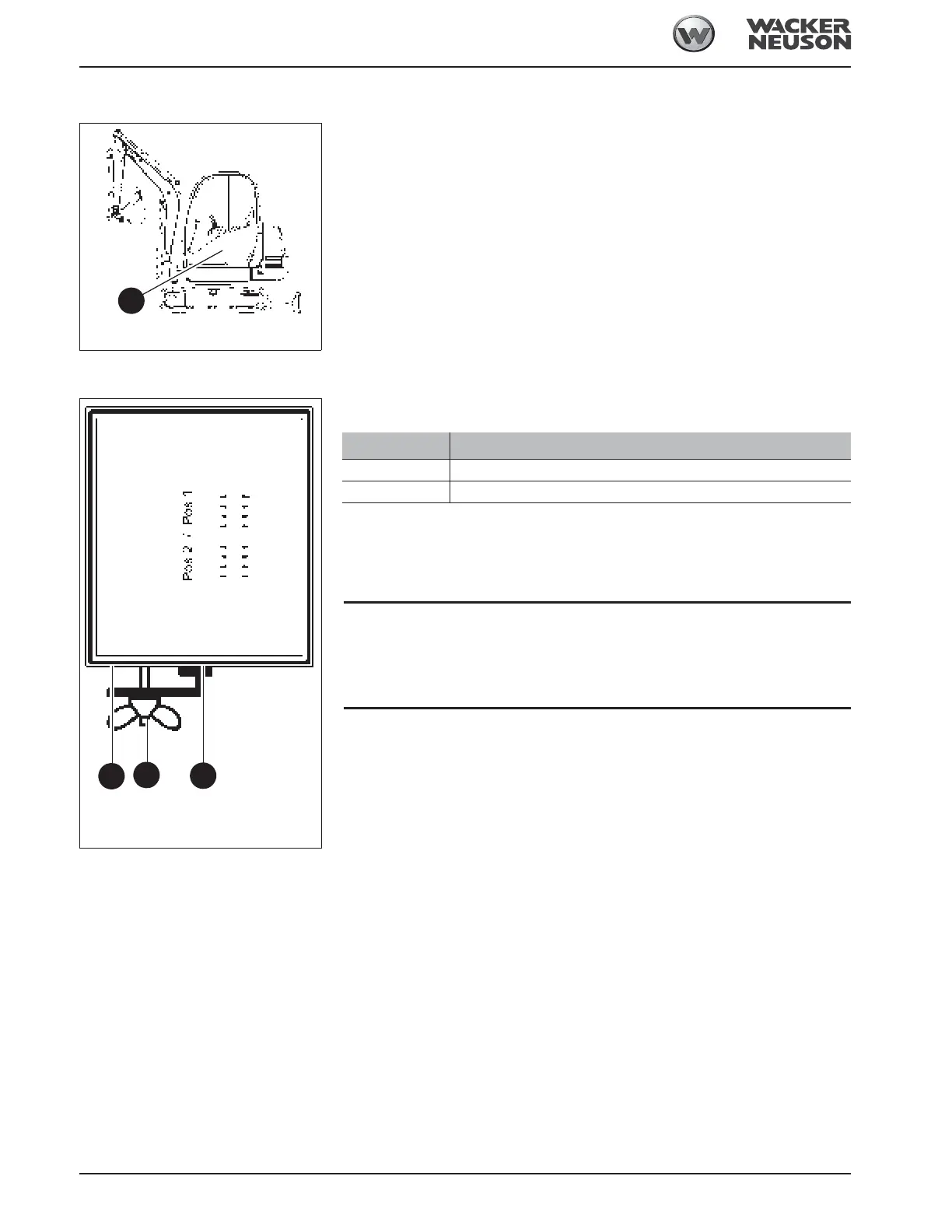

Fig. 186: Directional valve position
28
Fig. 187: Directional valve
J
A
B
Position Function
•A
➥ ISO controls
•B
➥ SAE controls
