6.10 Dimensions model 2503

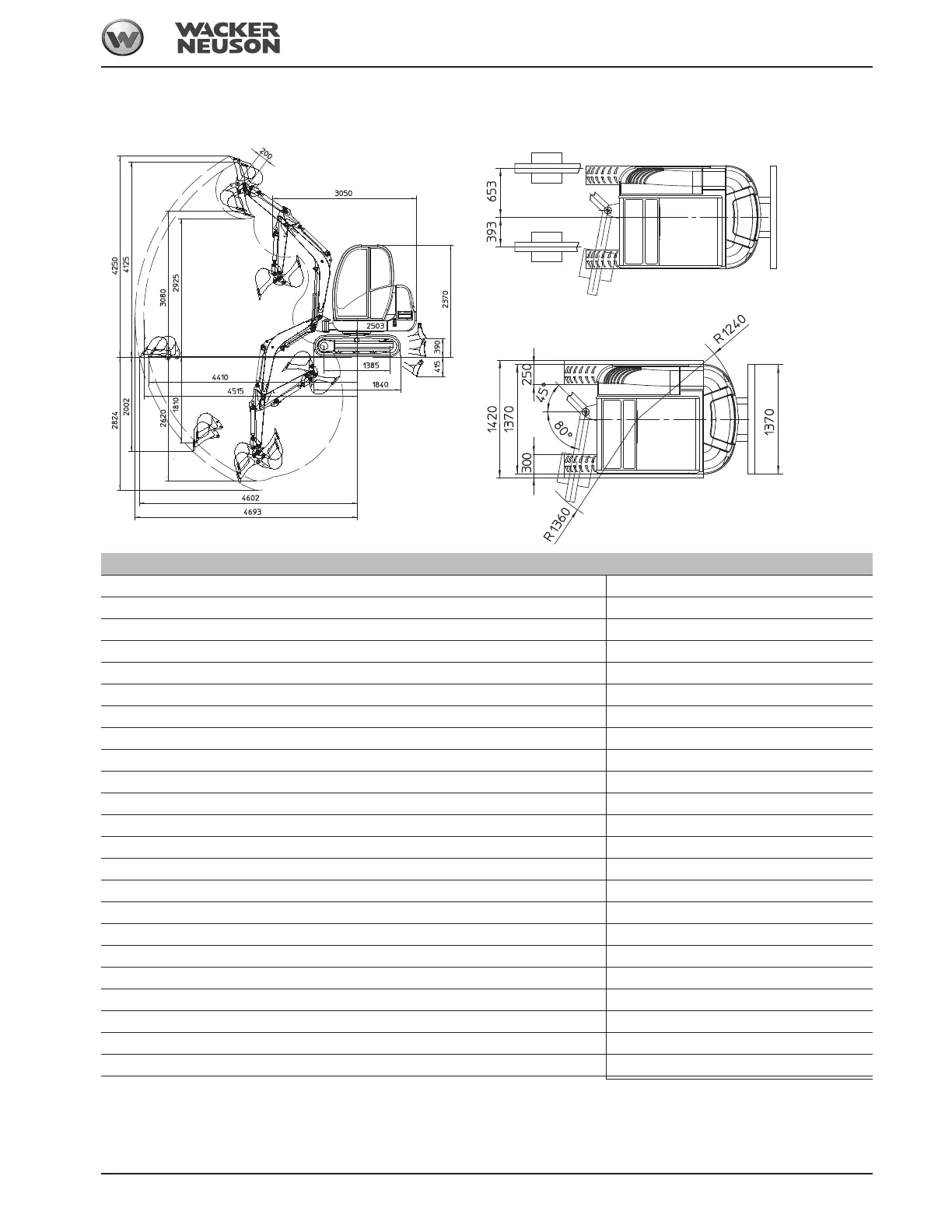

Fig. 305: Machine dimensions (model 2503)
*
*
* Values apply to 300 mm/12 in tracks
Main data Model 2503
Height 2370 mm (93 in)
Width 250 mm (10 in) tracks (standard)/300 mm (12 in) tracks (option) 1370 mm/1420 mm (54 in/56 in)
Transport length 4410 mm (14'-6'')
Max. digging depth 2620 mm (8'-7'')
Stick length (standard/long version) 1150 mm/1350 mm (45 in/53 in)
Max. digging depth for long stick (+ 300 mm) 2825 mm (9'-3'')
Max. vertical digging depth 1810 mm (71 in)
Max. vertical digging depth (long stick) 2000 mm (79 in)
Max. digging height 4125 mm (13'-6'')
Max. digging height (long stick) 4250 mm (13'-11'')
Max. tilt-out height 2925 mm (9'-7'')
Max. tilt-out height (long stick) 3080 mm (10'-1'')
Max. digging radius 4515 mm (14'-10'')
Max. digging radius (long stick) 4693 mm (15'-5'')
Max. reach at ground level 4410 mm (14'-6'')
Max. reach at ground level (long stick) 4602 mm (15'-1'')
Max. breakout force at bucket tooth 20 kN (4,496 lbf)
Max. tearout force (standard stick) 13 kN (2,923 lbf)
Max. tearout force (long stick) 11 kN (2,473 lbf)
Min. tail end slewing radius 1240 mm (49 in)
Max. tail end lateral projection (90° rotation of upper carriage) (250/300 tracks) 555 mm/530 mm (22 in/21 in)
Max. boom displacement to bucket center (right side) 653 mm (26 in)
Max. boom displacement to bucket center (left side) 393 mm (15 in)
