OM 25-3503 us – Edition 4.1 * 2503_3503b340.fm 3-73
Operation
Boom swivel controls
Swiveling the boom to the left:
☞ Press and hold button E on the control lever on the left and at the same time, press
hammer pedal 18 to the rear.
Swiveling the boom to the right:
☞ Press and hold button E on the control lever on the left and at the same time, press
hammer pedal 18 to the front.
Hammer operation (option)
Important information regarding hammer operation
Use the canopy version only with a shatter protection during hammer operation – see
chapter Shatter protection (option) on page 3-45.
If the machine is equipped with a cabin (option), the front window must be closed.
Danger of piercing/penetration by objects from the front!
Can cause serious injury or death.
• During operation, all persons must stay clear of the job site of the machine.
• Do not position the machine directly underneath the workplace during dem-
olition, otherwise debris can fall onto the machine or the building can col-
lapse.
• Only work in the job site.
• Operate the canopy version only with a shatter protection. If the machine is
equipped with a cabin (option), the front window must be closed.

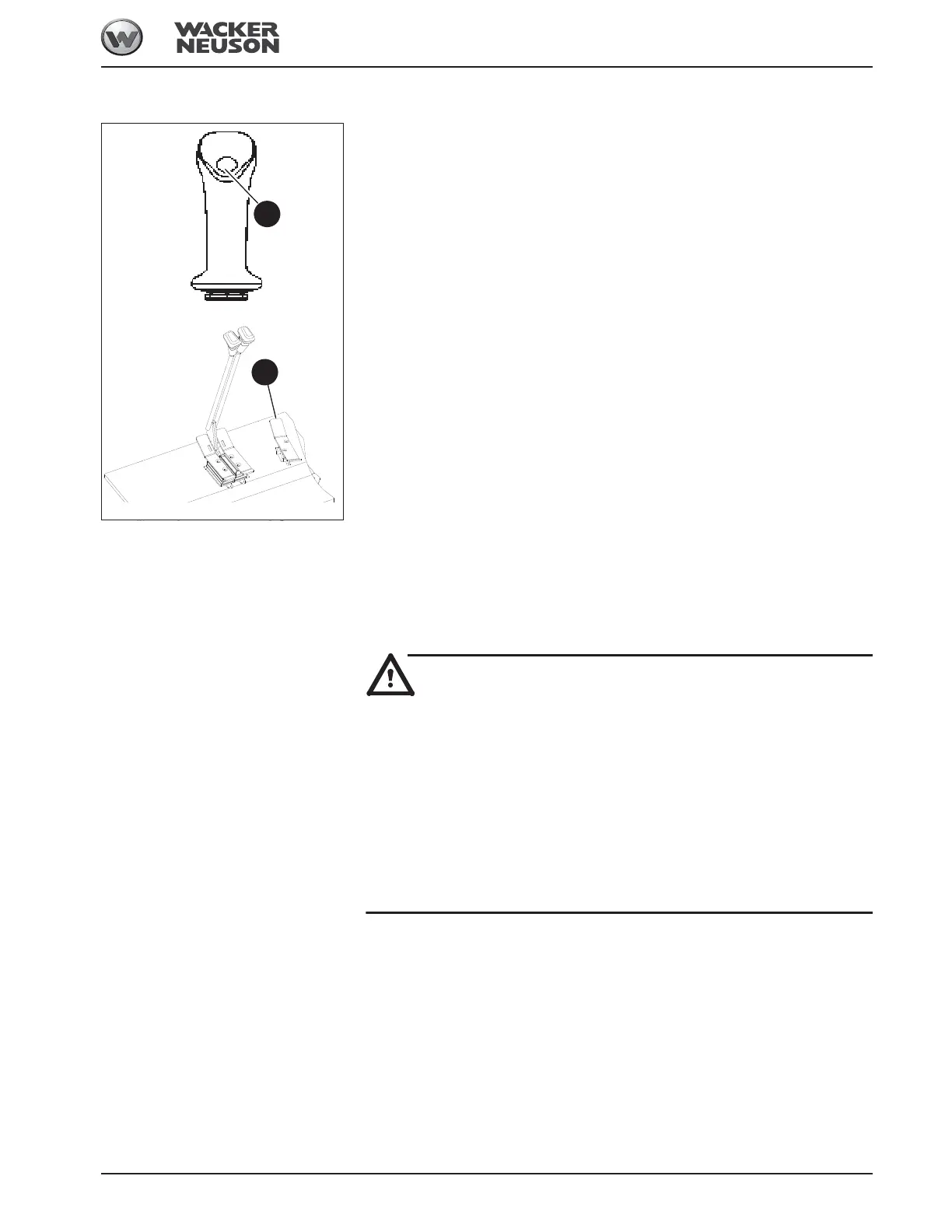

Fig. 178: Swiveling the boom
18
E
