OM 25-3503 us – Edition 4.1 * 2503_3503b340.fm 3-87
Operation
3.49 Tilting the upper carriage (option 3503)
Vertical digging on slopes is possible by tilting the upper carriage hydraulically by 15° with
the VDS.
Bear in mind the following during machine operation:
Crushing hazard when tilting the cabin!
Can cause serious injury or death.
• All persons must stay clear of the hazard zone when tilting the cabin.
• Tilt the machine only on firm ground.
• Tilt the machine only if it is at a standstill and if the attachment is empty.
• All doors and covers must be closed when tilting the machine.
• Never turn, lower or set down the attachment abruptly.
• Do not extend or retract the boom abruptly. Otherwise there is danger of
tipping over!
• When working in the immediate vicinity of a wall or parts of a building,
ensure that the upper carriage does not touch anything when it is tilted.
• On a slope, position the machine so that the upper carriage is tilted toward
the slope. Otherwise there is danger of tipping over!
– see chapter General safety instructions on page 3-68
– see chapter 2.15 Special Hazards on page 2-15
– see chapter 3.58 Working with the excavator on page 3-103
Operation (up to serial no. AG02694)
Tilting the upper carriage:
☞ Press and hold button A on control lever 2
☞ Press control lever 2 to the right
➥ The upper carriage is tilted
☞ If the required tilt angle is reached, return control lever 2 to the neutral position and
release button A.
Lowering the upper carriage:
☞ Press and hold button A on control lever 2
☞ Press control lever 2 to the left
➥ The upper carriage is lowered
☞ If the required tilt angle is reached, return control lever 2 to the neutral position and
release button A.

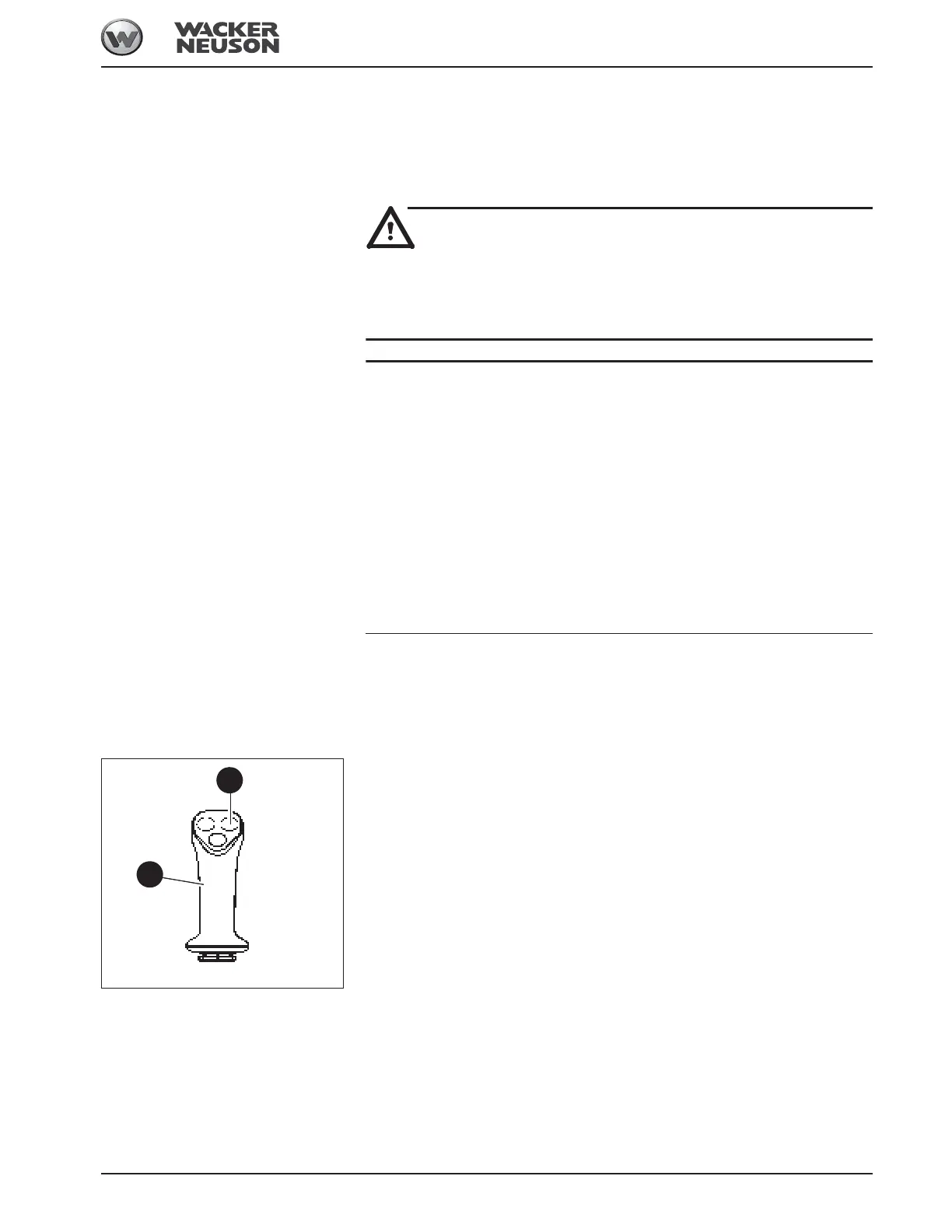

Fig. 208: Tilting the upper carriage
