Technical datac
6.11 Dimensions model 3503

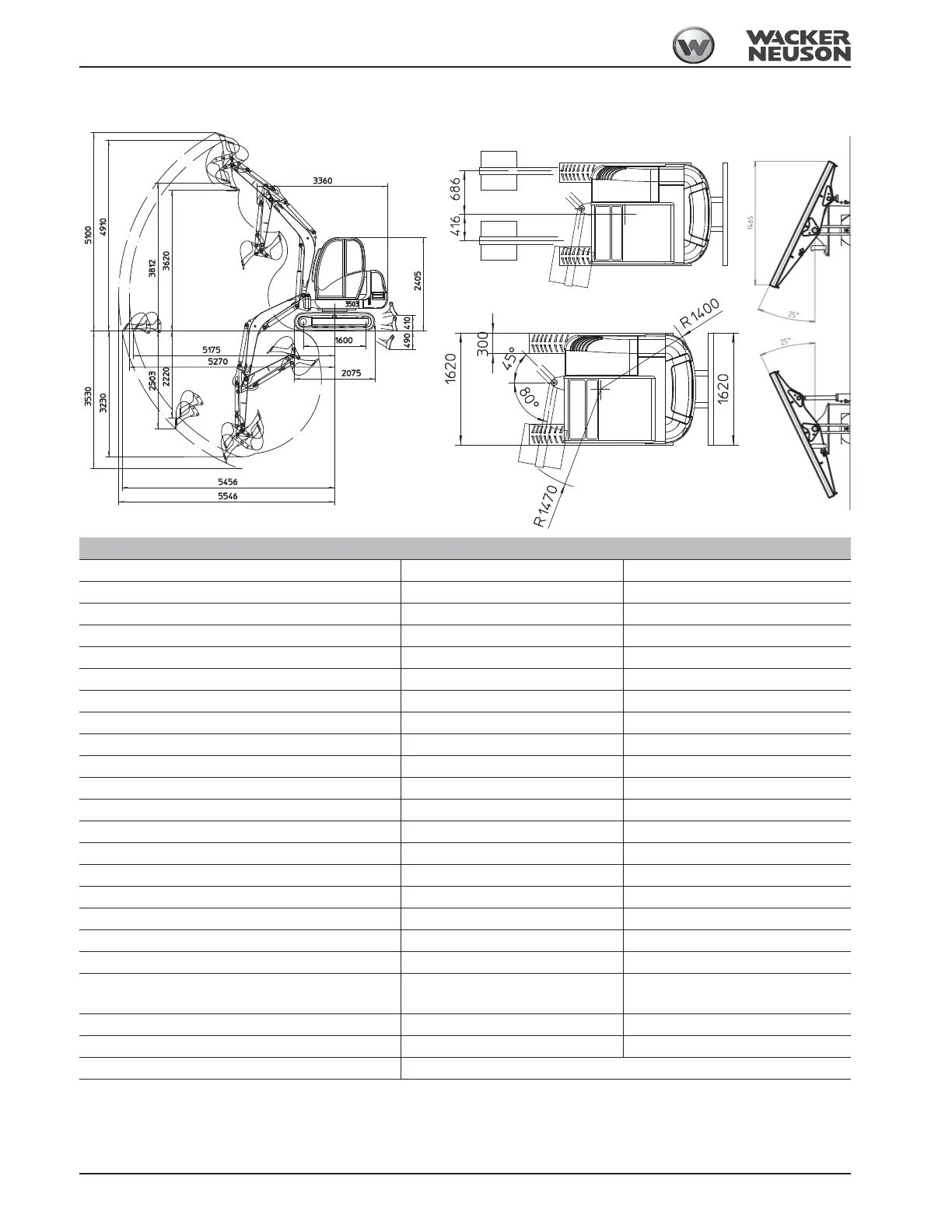

Fig. 306: Machine dimensions (model 3503)
Main data Model 3503 Vario 3503
Height/width 2405 mm/1620 mm (95 in/64 in) 2508 mm/1620 mm (99 in/64 in)
Transport length 5170 mm (16'-12'') 5170 mm (16'-12'')
Max. digging depth 3230 mm (10'-7'') 3127 mm (10'-3'')
Stick length (standard/long version) 1335 mm/1635 mm (53 in/64 in) 1335/1635 mm (53 in/64 in)
Max. digging depth for long stick (+ 300 mm) 3530 mm (11'-7'') 3427 mm (11'-3'')
Max. vertical digging depth 2220 mm (87 in) 2117 mm (83 in)
Max. vertical digging depth (long stick) 2500 mm (98 in) 2396 mm (94 in)
Max. digging height 4910 mm (16'-1'') 5013 mm (16'-5'')
Max. digging height (long stick) 5100 mm (16'-9'') 5211 mm (17'-1'')
Max. tilt-out height 3620 mm (11'-11'') 3723 mm (12'-3'')
Max. dump height with long stick 3810 mm (12'-6'') 3923 mm (12'-10'')
Max. digging radius 5270 mm (17'-3'') 5100 mm/5440 mm (16'-9"/17'-10")
Max. digging radius with long stick 5546 mm (18'-2'') 5296 mm/5796 mm (17'-5"/19'-0")
Max. reach at ground level 5175 mm (16'-12'') 5005 mm/5345 mm (16'-5"/17'-6")
Max. reach at ground level (long stick) 5456 mm (17'-11'') 5206 mm/5706 mm (17'-1"/18'-9")
Max. breakout force at bucket tooth 30.3 kN (6,811 lbf) 30.3 kN (6,811 lbf)
Max. tearout force (standard stick) 20.6 kN (4,631 lbf) 20.6 kN (4,631 lbf)
Max. tearout force (long stick) 16.8 kN (3,777 lbf) 16.8 kN (3,777 lbf)
Min. tail end slewing radius 1400 mm (55 in) 1400 mm (55 in)
Max. tail end lateral projection (90° rotation of upper
carriage)
590 mm (23 in) 420/760** mm (17 in/30 in)
Max. boom displacement to bucket center (right side) 685 mm (27 in) 855 mm (34 in)
Max. boom displacement to bucket center (left side) 415 mm (16 in) 585 mm (23 in)
Stabilizer blade tilting angle +/í 25°
