Displaying Measurement Results and Computation Results
5

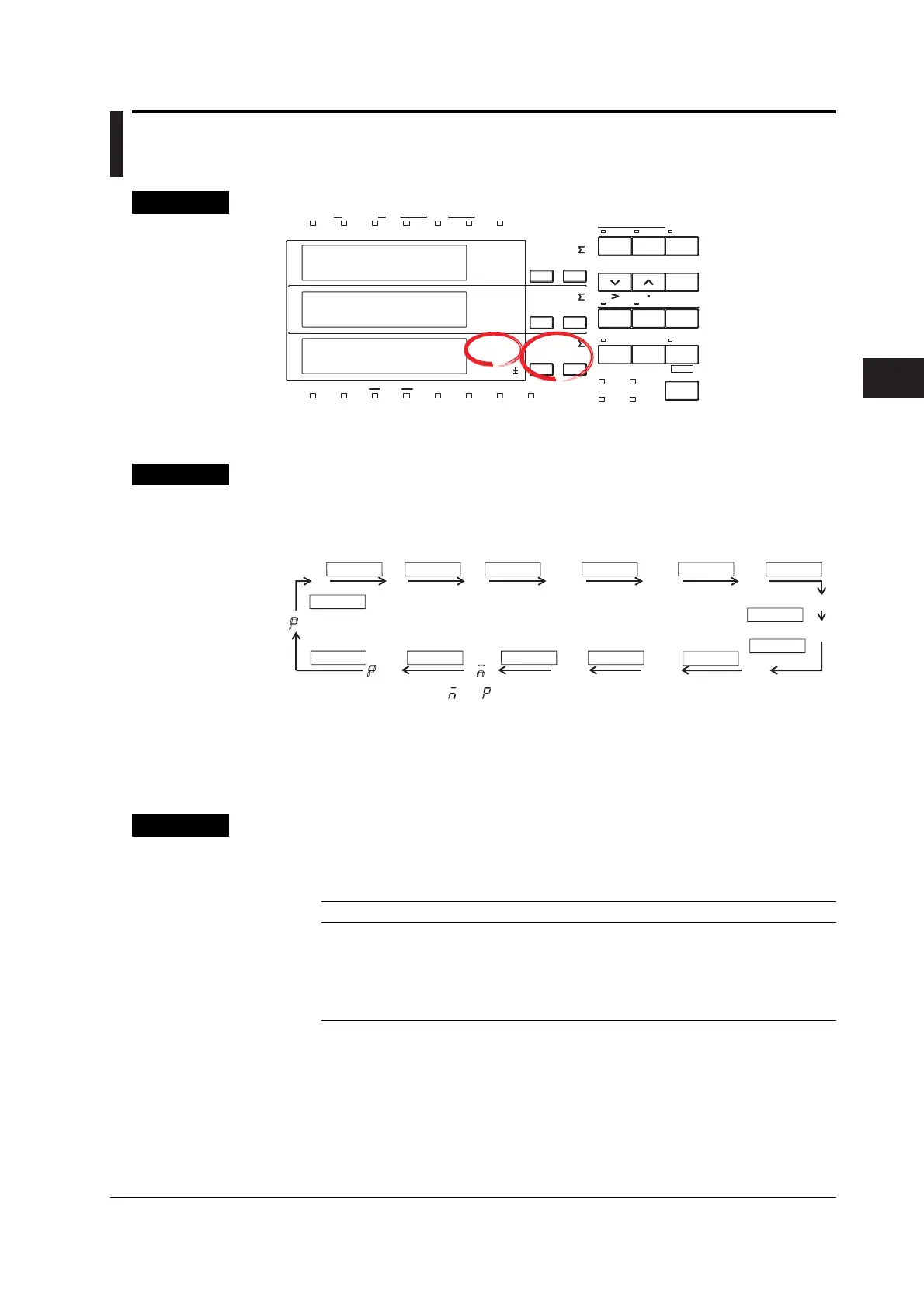

5.4 Displaying the Frequency
Keys
CHECK RANGE
MODE
UPDATE
SCALING
AVG
LINE FREQ
STORE RECALL
HARMONICS
KEY LOCK
FILTER
A
B
C
VOLTAGE VOLTAGE
VOLTAGE
AUTO
MODE
CURRENT
AUTO
RANGE
MAX HOLD
TRIG
CAL
INTEGRATOR
INTEG SET
SHIFT
KEY LOCK
1P 3W
3P 3W
3P 4W
3V 3A
OUTPUT
HARMONICS
MEMORY
REMOTE
MEAN
CURRENT RMS
DC
FUNCTION
ELEMENT
MAX HOLD
HOLD
ENTER
RESET
WIRING
START STOP
LOCAL
SETUP
1
m
V
k
A
V
TIME
ar
deg
h
h
VA
MW
m
VPF
k
A
MW
m
VHz
k
A
M
W
23
FUNCTION
ELEMENT
123
FUNCTION
ELEMENT
123
%
The explanation given in this section uses WT230 as an example. For the differences between
the WT210 and the WT230, see section 2.2, “Operation Keys and Functions/Element Display.”
Procedure
1. Selecting the Display Function
Select either V Hz (voltage frequency) or A Hz (current frequency) by pressing the
FUNCTION key of display C.
V Hz A Hz
FUNCTION FUNCTION FUNCTION FUNCTION
FUNCTION
FUNCTION
FUNCTION
FUNCTIONFUNCTIONFUNCTIONFUNCTION
FUNCTION
FUNCTION
FUNCTION
&
&
Display
C
Wh± and Ah± will light twice. and are displayed on the top of display C.
You can reverse the order by first pressing the SHIFT key followed by the FUNCTION key.
2. Selecting the Input Element
Select the input element by pressing the ELEMENT key of display C. The operation is
the same as the one described on page 5-1.
Explanation
Measurement Range
• The measurement range varies depending on the display update rate (see section
4.13) as follows:
Display Update Rate Measurement Range
0.1 s 25 Hz to 100 kHz
0.25 s 10 Hz to 100 kHz
0.5 s 5 Hz to 100 kHz
1 s 2.5 Hz to 100 kHz
2 s 1.5 Hz to 50 kHz
5 s 0.5 Hz to 20 kHz
• There are six types of measurement ranges, 1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz,
100 kHz. The measurement range switches automatically.
Maximum Reading, Unit, and Unit Prefix
• Maximum reading: 99999 (when the number of displayed digits is 5)
• Units: Hz
• Prefix: k
To Next Page
