9.3 D/A Output (Option)
Keys
CHECK RANGE MODE
UPDATE
SCALING
AVG LINE FREQ STORE RECALL HARMONICS KEY LOCK
FILTER
A
B
C
VOLTAGE VOLTAGE
VOLTAGE
AUTO
MODE
CURRENT
AUTO
RANGE
MAX HOLD TRIG
CAL
INTEGRATOR
INTEG SET
SHIFT KEY LOCK
1P 3W 3P 3W
3P 4W
3V 3A
OUTPUT
HARMONICS MEMORY
REMOTE
MEAN
CURRENT RMS
DC
FUNCTION ELEMENT
MAX HOLD
HOLD
ENTER
RESET
WIRING
START STOP
LOCAL SETUP
1
m
V
k
A
V
TIME
ar
deg
h
h
VA
MW
m
VPF
k
A
MW
m
VHz
k
A
MW
23
FUNCTION ELEMENT
123
FUNCTION ELEMENT
123
%
The explanation given in this section uses WT230 as an example. For the differences between
the WT210 and the WT230, see section 2.2, “Operation Keys and Functions/Element Display.”
Procedure
• Operate the instrument by following the thick lines in the menu below.
• Press the ENTER key to confirm a selection or setting.
• To leave the current menu in the middle of the operation, press the key indicated in
step 1. The confirmed settings up to that point are kept.

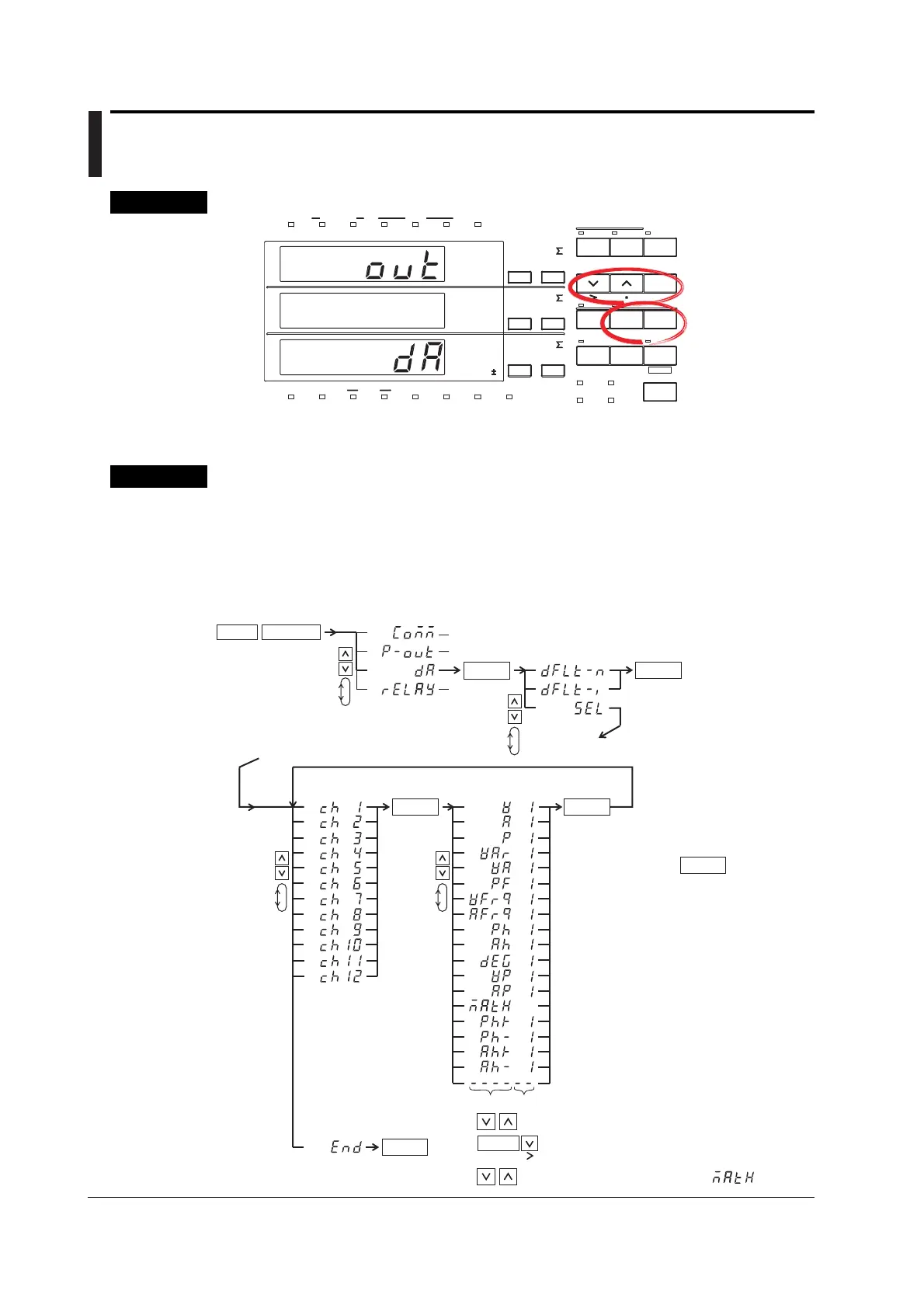

Setting the D/A Output
1.
SHIFT
SETUP
OUTPUT
ENTER
3.
Select the D/A output function
( Display C )
2.
4.
Select the output format
( Display C )
ENTER
5.
End of setting
(select default
setting)
Set output channel
( Display B )
6.,12.
ENTER
7.
Set the output item
( Display C )
8.
ENTER
ENTER
13.
End of setting
11.
*1
(Select original setting)
8. sets the A column (output function)
9. moves to the B column
10. selects from element 1 to 4
(except )
A
B
SHIFT
*3
*2
ENTER
*1 When you press the key at step 11,
the output channel displayed at display B will
change to the next channel, i.e. from ch1 to ch2
and so forth.
*2 The number of channels depends on the
installed options. In case of option /DA4 or
/CMP, there are four channels, in case of option
/DA12, there are twelve channels available.
*3 Depends on the model number. Refer to the
explanation for more details.
