Store/Recall Function of Measured/Computed Data and Setup Parameters
8
8.2 Storing/Recalling Setup Parameters
Keys
CHECK RANGE MODE
UPDATE
SCALING
AVG LINE FREQ STORE RECALL HARMONICS KEY LOCK
FILTER
A
B
C
VOLTAGE VOLTAGE
VOLTAGE
AUTO
MODE
CURRENT
AUTO
RANGE
MAX HOLD TRIG
CAL
INTEGRATOR
INTEG SET
SHIFT KEY LOCK
1P 3W 3P 3W
3P 4W
3V 3A
OUTPUT
HARMONICS MEMORY
REMOTE
MEAN
CURRENT RMS
DC
FUNCTION ELEMENT
MAX HOLD
HOLD
ENTER
RESET
WIRING
START STOP
LOCAL SETUP
1
m
V
k
A
V
TIME
ar
deg
h
h
VA
MW
m
VPF
k
A
MW
m
VHz
k
A
MW
23
FUNCTION ELEMENT
123
FUNCTION ELEMENT
123
%
The explanation given in this section uses WT230 as an example. For the differences between
the WT210 and the WT230, see section 2.2, “Operation Keys and Functions/Element Display.”
Procedure
• Operate the instrument by following the thick lines in the menu below.
• Press the ENTER key to confirm a selection or setting.
• To leave the current menu in the middle of the operation, press the key indicated in
step 1. The confirmed settings up to that point are kept.

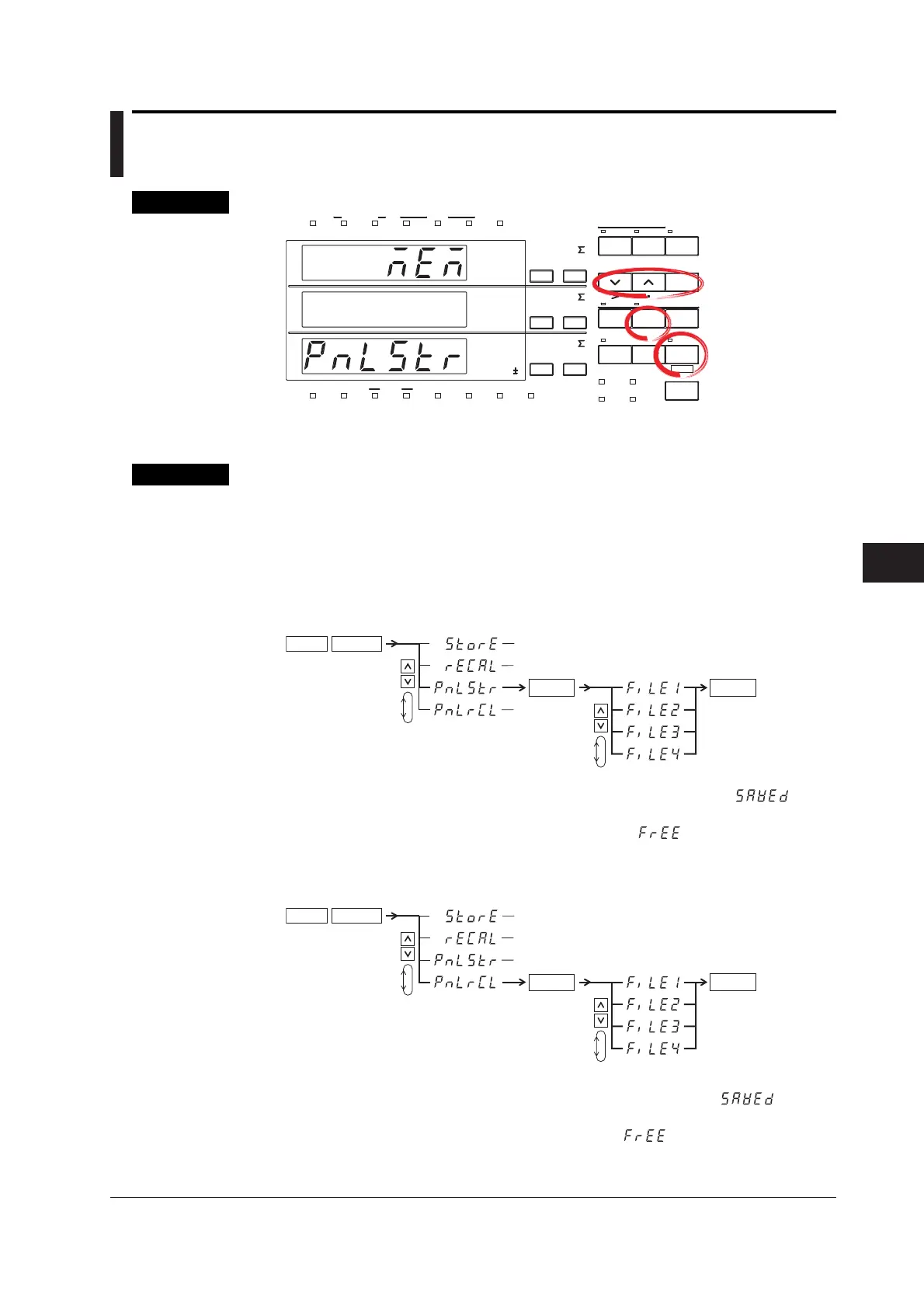

Storing Setup Parameters
1.
SHIFT
STOP
MEMORY
ENTER
3.
Select storage of setup parameters
(Display C)
2.
Select the file for storage
(Display B)
4.
ENTER
5.
End of setting
When select parameters are already stored
to the file, display C will show " "
When no data are stored yet, display C
will show " "
Recalling Setup Parameters
1.
SHIFT
STOP
MEMORY
ENTER
3.
Select recalling of setup parameters
(Display C)
2.
Select the file for recalling
(Display B)
4.
ENTER
5.
End of setting
When select parameters are already stored
to the file, display C will show " "
When no data are stored yet, display C
will show " "
