1.3 Digital Numbers and Characters and Initial
Menus
Digital Numbers and Characters

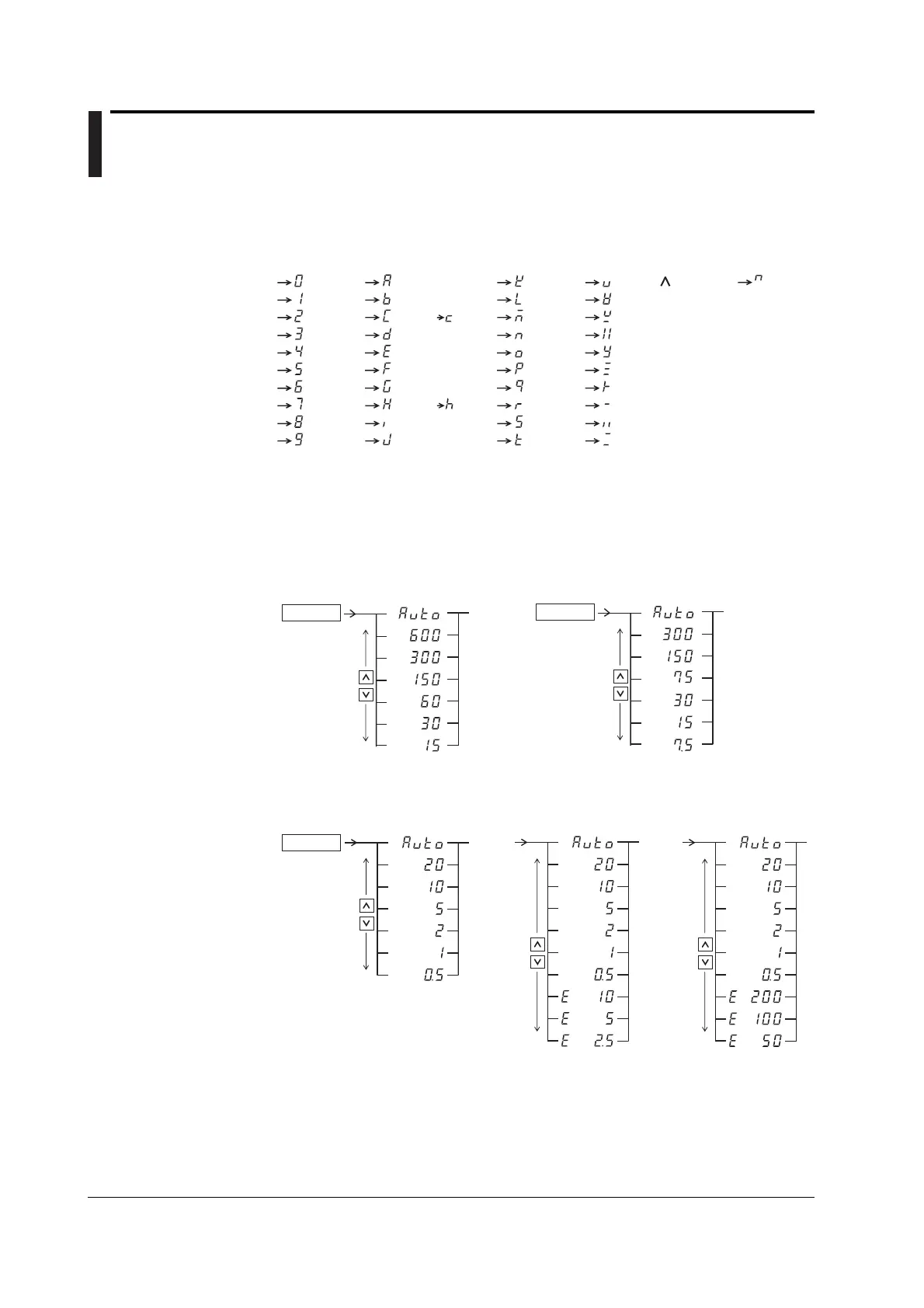

Because the WT210/WT230 uses a 7-segment LED display, numbers, alphabets, and
operation symbols are represented using special characters as follows. Some of the
characters are not used.
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
Small c
Small h
U
V
W
X
Y
Z
+
−
×
÷
(Exponent)
Initial Menus
Each function of the WT210/WT230 is set using a menu that appears on the display.
The initial menu that appears when the operation keys are pressed are shown below.
Voltage Range Setting
(Display C)1.
VOLTAGE
2.
When the crest factor is set to 3
(Display C)1.
VOLTAGE
2.
When the crest factor is set to 6
Current Range Setting
(Display C)
1.
CURRENT
2.
For option /EX1
(Display C)
For option /EX2
(Display C)
2.
2.
When the crest factor is set to 3
On the WT210, 5 to 200 mA range can also be specified.
