YOKOGAWA WT210 User Manual

14-37
IM 760401-01E
Communication Commands 2 (System of Commands Complying to the IEEE 488.2-1992 Standard)
14
14.3.11 RELay Group
The commands in the RELay group are used to make settings relating to, and inquiries about the comparator
function. This allows you to make the same settings and inquiries as when using the lower menus of [OUTPUT]-
“rELAY”. This group is only useful in case your instrument is equipped with the /CMP option.

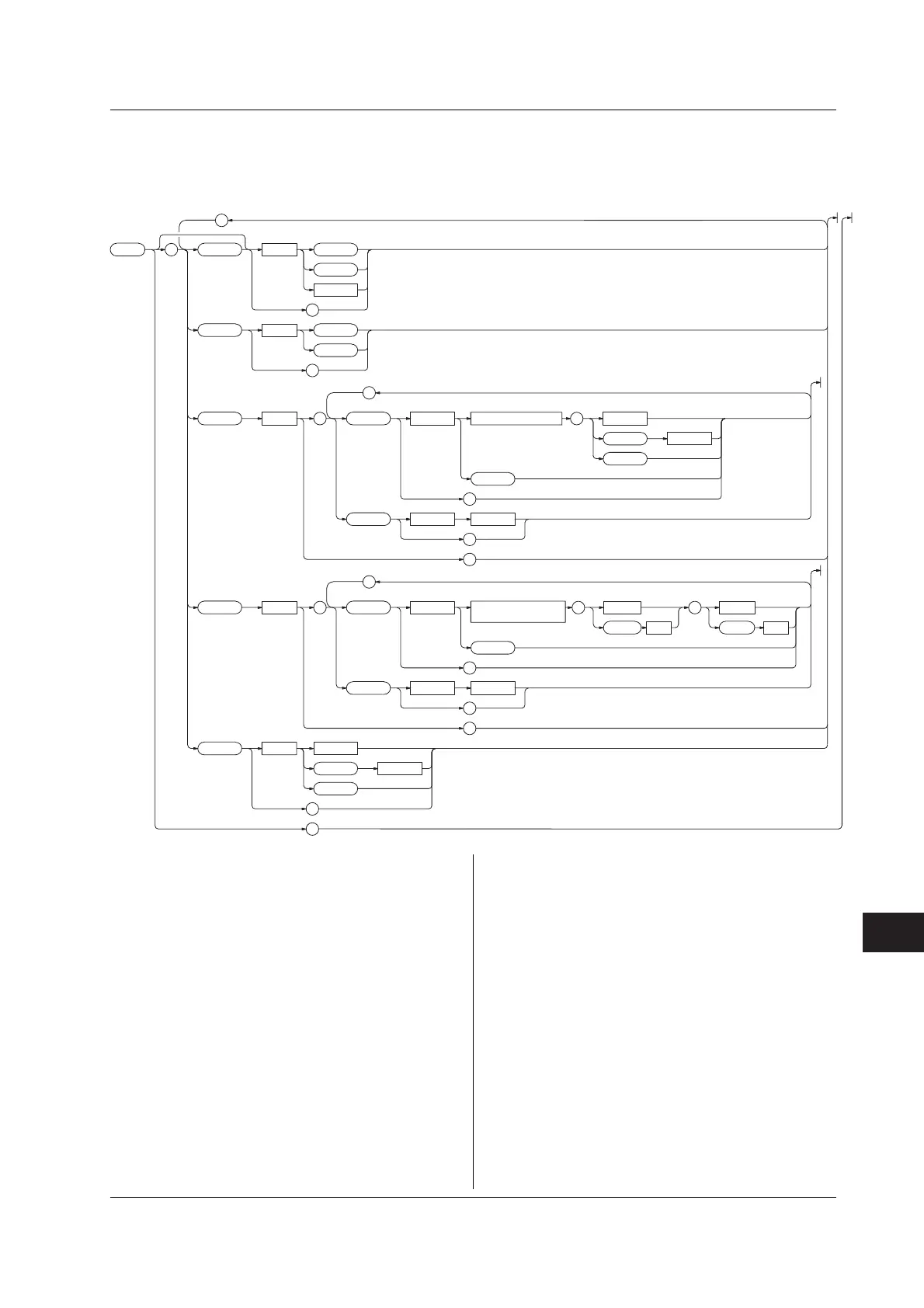

:RELay :STAT e
<Space>
OFF
ON
<NRf>
?
MODE
<Space>
SINGle
DUAL
?
NCHannel
<x>
: FUNCtion <Space> ,
<NRf>
ELEMent
<x>
SIGMa
OFF
?
THReshold <Space> <NRf>
?
?
HCHannel
<x>
: FUNCtion <Space> ,
<NRf>
,
<NRf>
ORDer
<x>
ELEMent
<x>
OFF
?
THReshold <Space> <NRf>
?
?
DISPla
y
<Space>
<NRf>
CHANnel <x>
OFF
?
?
<Normal meas. function>
<Harmonic measurement
function>
;
;
;
14.3 Commands
RELay?
Function Queries all settings relating to the comparator
function.
Syntax RELay?
Example RELAY? -> :RELAY:STATE 0;MODE SINGLE;
NCHANNEL1:FUNCTION V,1;
THRESHOLD 600.0E+00;:RELAY:NCHANNEL2:
FUNCTION A,1;THRESHOLD 20.00E+00;:
RELAY:NCHANNEL3:FUNCTION W,1;
THRESHOLD 1.200E+03;:RELAY:NCHANNEL4:
FUNCTION PF,1;THRESHOLD 1.000E+00;:
RELAY:HCHANNEL1:FUNCTION V,1,1;
THRESHOLD 600.0E+00;:RELAY:HCHANNEL2:
FUNCTION A,1,1;THRESHOLD 20.00E+00;:
RELAY:HCHANNEL3:FUNCTION W,1,1;
THRESHOLD 1.200E+03;:RELAY:HCHANNEL4:
FUNCTION PF,1;THRESHOLD 1.000E+00;:
RELAY:DISPLAY OFF
RELay:DISPlay
Function Sets the comparator display OFF or when ON, the
channel to be displayed/queries the current setting.
Syntax RELay:DISPlay {<NRf>|CHANnel<1-
4>|OFF}
RELay:DISPlay?
{<NRf>}=1 to 4:channel
Example RELAY:DISPLAY 1
RELAY:DISPLAY? -> :RELAY:DISPLAY 1
RELay:HCHannel<x>?
Function Queries all settings related to relay output items
in case of harmonic measurement.
Syntax RELay:HCHannel<x>?
<x>= 1 to 4
Example RELAY:HCHANNEL1? -> :RELAY:HCHANNEL1:
FUNCTION V,1,1;
THRESHOLD 600.0E+00
