6.3 Displaying Integrated Values
Keys
CHECK RANGE
MODE
UPDATE
SCALING
AVG
LINE FREQ
STORE RECALL
HARMONICS
KEY LOCK
FILTER
A
B
C
VOLTAGE VOLTAGE
VOLTAGE
AUTO
MODE
CURRENT
AUTO
RANGE
MAX HOLD
TRIG
CAL
INTEGRATOR
INTEG SET
SHIFT
KEY LOCK
1P 3W
3P 3W
3P 4W
3V 3A
OUTPUT
HARMONICS
MEMORY
REMOTE
MEAN
CURRENT RMS
DC
FUNCTION
ELEMENT
MAX HOLD
HOLD
ENTER
RESET
WIRING
START STOP
LOCAL
SETUP
1
m
V
k
A
V
TIME
ar
deg
h
h
VA
MW
m
VPF
k
A
MW
m
VHz
k
A
MW
23
FUNCTION
ELEMENT
123
FUNCTION
ELEMENT
123
%
The explanation given in this section uses WT230 as an example. For the differences between
the WT210 and the WT230, see section 2.2, “Operation Keys and Functions/Element Display.”
Procedure

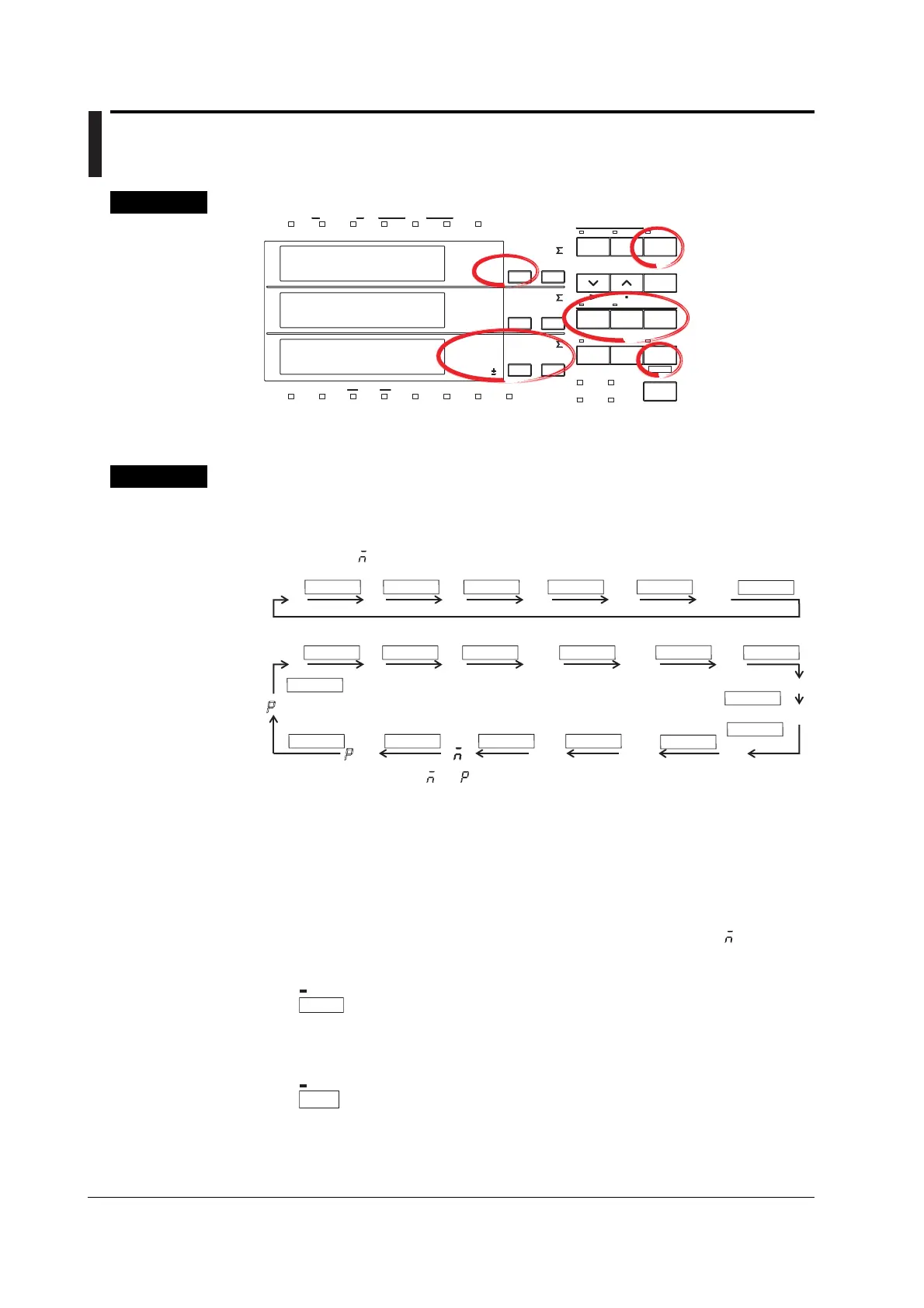

1. Selecting the Display Function
Pressing the FUNCTION key on display A will select TIME (elapsed integration time).
Pressing the FUNCTION key on display C will select Wh/Wh± (power), Ah/Ah±
(current), or
(average active power during integration).
Display
A
C
FUNCTION
TIME
FUNCTION FUNCTION FUNCTION FUNCTION
FUNCTION
Wh
AhAh±
Wh±
Wh±
Ah±
FUNCTION FUNCTION FUNCTION FUNCTION
FUNCTION
FUNCTION
FUNCTION
FUNCTIONFUNCTIONFUNCTION
FUNCTION
FUNCTION
FUNCTION
FUNCTION
&
&
Wh± and Ah± will light twice. and are displayed on the top of display C.
You can reverse the order by first pressing the SHIFT key followed by the FUNCTION key.
2. Selecting the Input Element
Select the input element by pressing the ELEMENT key on display C. The operation
is the same as the one described on page 5-1.
3. Starting Integration
Press the START key. The START indicator will light, the integrated value will appear
on display C and the elapsed integration time will appear on display A.
is displayed
first on display C. It is followed by the average active power during integration, if the
function is specified in the computation settings (see section 4.12).
START
4. Holding the displayed value
Press the HOLD key. The HOLD indicator will light, and the displayed values will be
held.
HOLD
To Next Page
