YOKOGAWA WT210 User Manual

2-1
IM 760401-01E
Names and Functions of Parts and Auto Range Monitor, Overrange, and Error Displays
2
Chapter 2 Names and Functions of Parts and Auto Range Monitor, Overrange, and Error Displays

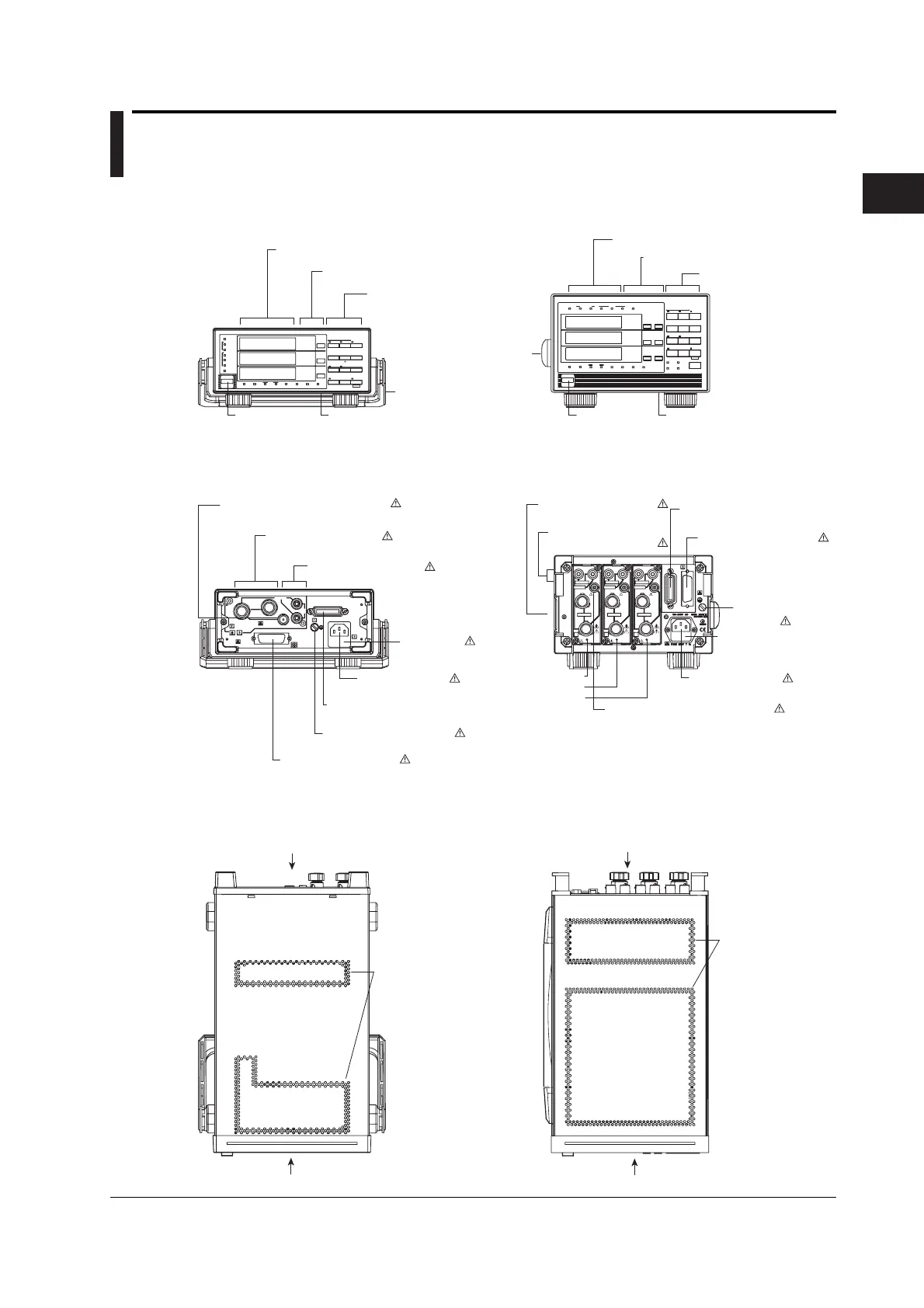

2.1 Front Panel, Rear Panel, and Top View
Front Panel
WT210 (model: 760401) WT230 (model: 760502, 760503)
Handle
Vent holes
Handle
Vent holesPower switch
(Section 3.6)
7-segment display
Keys
(Section 2.2)
Function/Unit/Element display
7-segment display
Keys
(Section 2.2)
Function/Unit display
Power switch
(Section 3.6)
Rear Panel
WT210 (model: 760401) WT230 (model: 760502, 760503)
External sensor input connector
(Section 3.9)
Power connector
(Section 3.5)
Power connector
(Section 3.5)
Power fuse
(Section 15.5)
Power fuse
(Section 15.5)
Protective earth
terminal (Page vi)
External sensor input connector
(Section 3.9)
Voltage input terminal
(Sections 3.7 to 3.9)
Voltage input terminal
(Sections 3.7 to 3.9)
Current input terminal
(Sections 3.7 to 3.8)
Current input terminal
(Sections 3.7 to 3.8)
GP-IB or SERIAL connector
(Chapters 10 and 11)
External I/O connector
(Chapter 9)
Protective earth terminal
(Page vi)
External I/O connector
Chapter 9
GP-IB or SERIAL connector
(Chapters 10 and 11)
Input element 1
Input element 2
Input element 3
Top View
WT210 (model: 760401) WT230 (model: 760502, 760503)
Vent holes
Vent holes
Rear panelRear panel
Front panel
Front panel
