14-15
IM 760401-01E
Communication Commands 2 (System of Commands Complying to the IEEE 488.2-1992 Standard)
14
AOUTput?
Function Queries all the settings relating to D/A output.
Syntax AOUTput?
Example AOUTPUT? -> :AOUTPUT:CHANNEL1 V,1;
CHANNEL2 V,2;CHANNEL3 V,3;CHANNEL4 V,
SIGMA;CHANNEL5 A,1;CHANNEL6 A,2;
CHANNEL7 A,3;CHANNEL8 A,SIGMA;
CHANNEL9 W,1;CHANNEL10 W,2;
CHANNEL11 W,3;CHANNEL12 W,SIGMA;:
AOUTPUT:IRTIME 1,0
AOUTput:CHANnel<x>
Function Sets the D/A output item, or queries the current
setting.
Syntax AOUTput:CHANnel<x> {<normal
measurement function>,(<NRf>|
ELEMent<1-3>|SIGMa)|OFF}
<x>= 1 to 12(in case of /DA12)
1 to 4 (in case of /DA4 or /CMP)
<normal measurement function>={V|A|W|
VA|VAR| PF|DEGRee|VHZ|AHZ|WH|WHP|WHM|
AH|AHP|AHM|MATH|VPK|APK}
Example AOUTPUT:CHANNEL1 V,1
AOUTPUT:CHANNEL1? -> :AOUTPUT:
CHANNEL1 V,1
AOUTPUT:CHANNEL2? -> :AOUTPUT:
CHANNEL2 OFF
Description If <normal measurement function> is set to MATH,
the element setting is void. You can omit it.
AOUTput:IRTime
Function Sets the preset integration time for D/A output of
integrated values, or queries the current setting.
Syntax AOUTput:IRTime
{<NRf>,<NRf>,<NRf>|<String>}
{<NRf>,<NRf>,<NRf>}=0,0,0 to
10000,0,0
{<String>}=HHHHH:MM:SS HHHHH hours MM
minutes SS seconds
Example AOUTPUT:IRTIME 1,0,0
AOUTPUT:IRTIME "1:00:00"
AOUTPUT:IRTIME? -> :AOUTPUT:IRTIME
1,0,0
AOUTput:PRESet
Function Initializes the output items for D/A output.
Syntax AOUTput:PREset {NORMal|INTEGrate}
NORMal = default for normal
measurement
INTEGrate = default for integration
Example AOUTPUT:PRESET NORMAL
Description Refer to section 9.3 for a description of default
D/A output items for normal measurement and
integration.

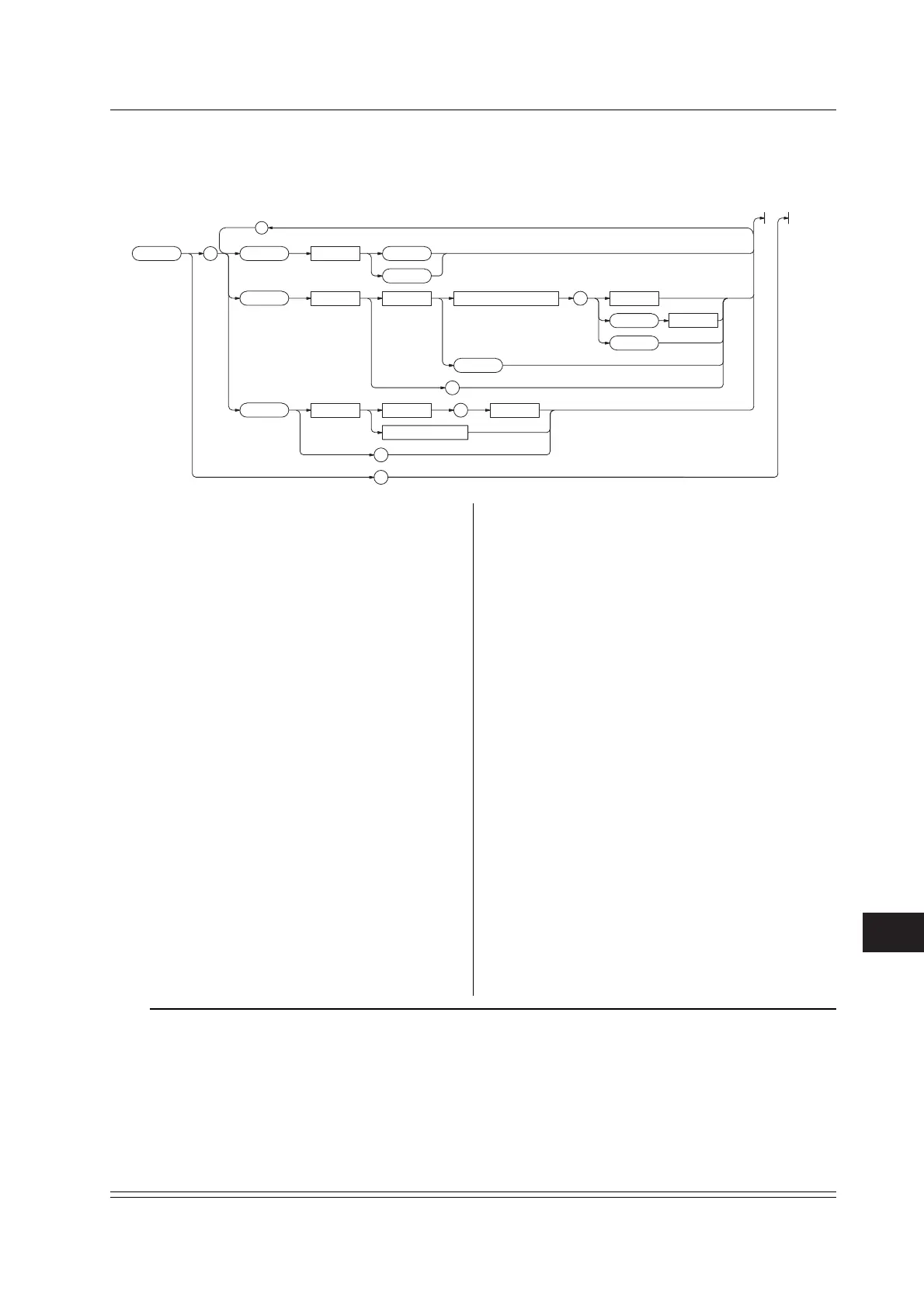

14.3.2 AOUTput Group
The commands in the AOUTput group are used to make settings relating to, and inquires about D/A output (option).
This allows you to make the same settings and inquiries as can be set using the lower menus of [OUTPUT]-”dA” or
[INTEG SET]-”dAtimE”.
:AOUTput : PRESet <Space> NORMal
INTEGrate
CHANnel <x> <Space>
<Normal measurement>
, <NRf>
ELEMent <x>
SIGMa
OFF
?
IRTime <Space> <NRf> , <NRf>
?
?
<Character string>
;
Note
In the following pages, the alphanumeric character strings used in the descriptions of the <normal measurement function> or
the <harmonic measurement function> indicates the following data.
• <Normal measurement function>
V: voltage, A: current, W: effective power, VA: apparent power, VAR: reactive power, PF: power factor, DEGRee: phase angle, VHZ:
voltage frequency, AHZ: current frequency, WH: watt hour, WHP: positive watt hour, WHM: negative watt hour, AH: current hour,
AHP: positive current hour, AHM: negative current hour, MATH: MATH computation result, VPK: peak voltage, APK: peak current
• <Harmonic measurement function>
See page 14-33.
• Other
TIME: elapsed integration time, ORDer: harmonic order
14.3 Commands
