6.4 Precautions Regarding Use of Integrator
Function

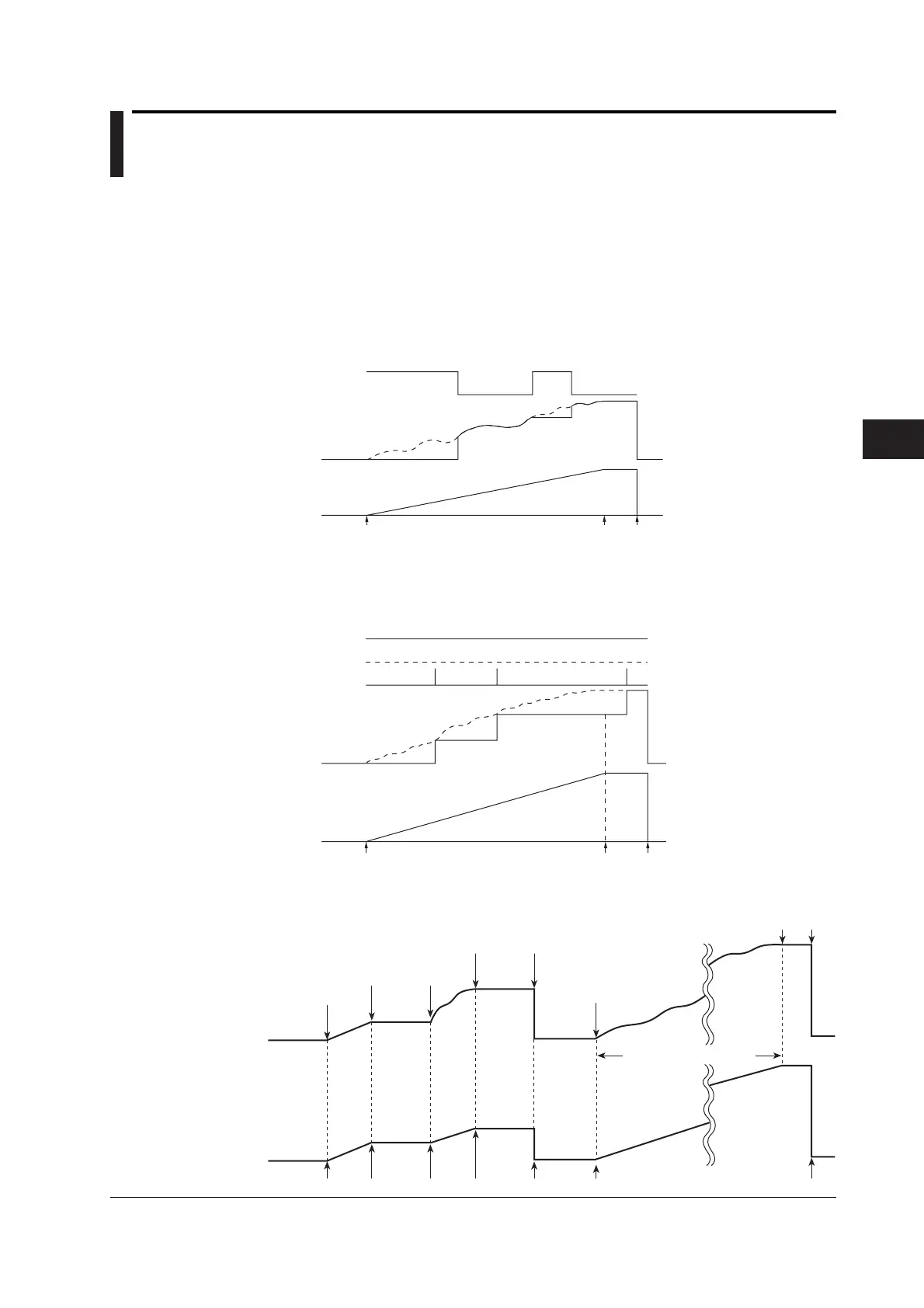

Relation between s and the START/STOP key
When the HOLD key is pressed, the display and communication output of the integrated
results is being held while integration continues. The relation between this hold function
and the START/STOP key is as follows.
• Even when starting integration while the hold function is on, the display and
communication output will remain unchanged. Only canceling the hold function or
activating a trigger (pressing the SHIFT key followed by the HOLD (TRIG) key) will
result in displaying or outputting the integrated results of the time of cancellation.
ON
HOLD
OFF
Displayed
value
Elapsed
integration time
(Dotted line shows integrated value)
START
STOP
RESET
• Even when stopping integration while the hold function is on, the displayed integrated
value will remain unchanged. However, as soon the hold function is turned off or a
trigger is activated, the integrated results of the time when integration was stopped will
be displayed or output.
Elapsed
integration time
(Dotted line shows integrated value)
TRIG
OFF
ON
HOLD
ON ON ON
Displayed
value
START
STOP
RESET
Relation between Integration Reset and the START/STOP key
The relation between integration reset and the start/stop key is as follows.
Integrated
value
Elapsed
integration
time
Interrupt
Start
Restart
Interrupt
Reset
Restart
Auto stop Reset
Preset time for integration
START STOP START STOP RESET START RESET
